Heater Unit and Associated Parts

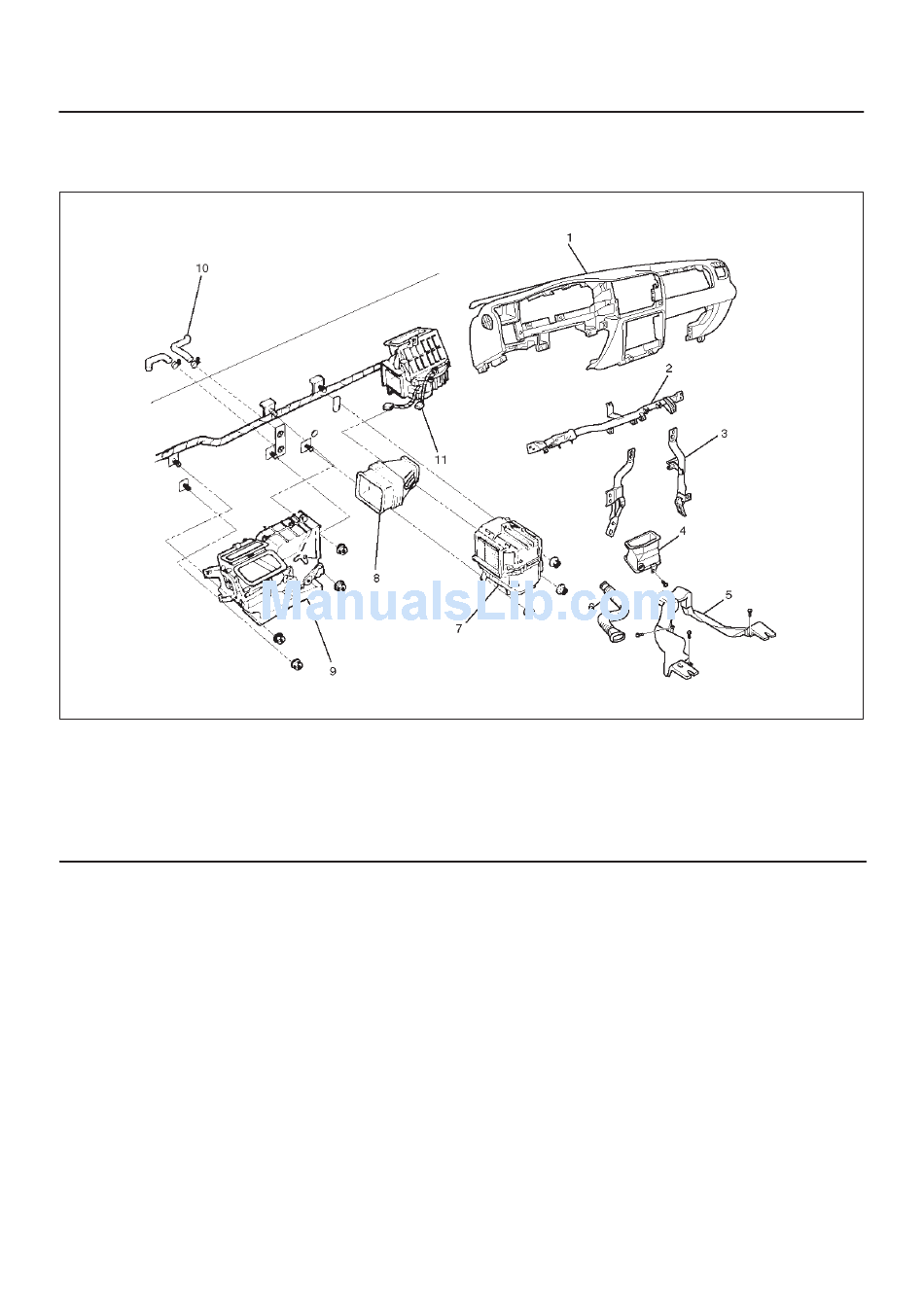

Legend
(1) Instrument Panel Assembly
(2) Cross Beam Assembly
(3) Instrument Panel Bracket
(4) Ventilation Lower Duct
(5) Rear Heater Duct

Removal

1. Disconnect the battery ground cable.
2. Drain the engine coolant.
3. Discharge and recover
conditioning).
f Refer to Refrigerant Recovery in this section.
4. Remove the Instrument panel assembly.
f Refer to Instrument Panel Assembly in Body and
Accessories section.
5. Remove instrument panel bracket.
f Refer to Cross Beam Assembly in Body and
Accessories section.
6. Cross Beam Assembly.
f Refer to Cross Beam Assembly in Body and
Accessories section.
HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–13
Heater Unit
refrigerant (with air
(6) Driver Lap Vent Duct
(7) Evaporator Assembly (A/C only)
(8) Duct
(9) Heater Unit Assembly
(10) Heater Hose
(11) Resistor Connector
7. Disconnect resistor connector.
8. Remove duct.
9. Remove evaporator assembly (A/C only).
f Refer to Evaporator Assembly in this section.
10. Remove driver lap vent duct.
11. Remove ventilation lower duct.
12. Remove rear heater duct.
f Remove foot rest, carpet and 3 clips.
13. Remove heater unit assembly.
f Disconnect heater hoses at heater unit.
840RW003
