ViewStation FX/VS4000 User Guide
56
Figure 2-7 shows the peripheral link (P-LINK) side of the Quad BRI
network interface module that connects to the ViewStation FX or
VS4000.

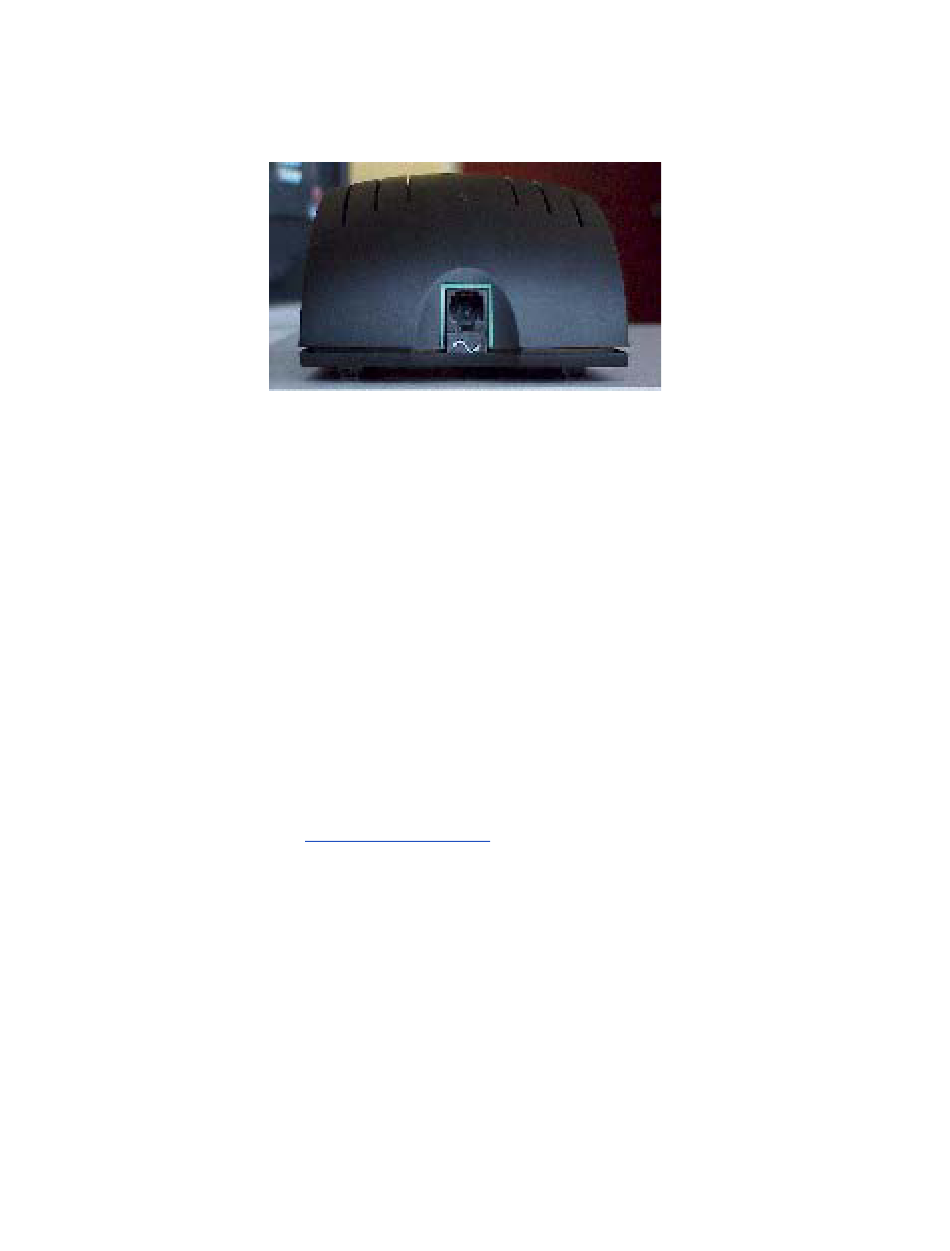

Figure 2-7. Quad BRI Network Interface Module (P-LINK side)
To connect the Quad BRI network interface module to the BRI
network:
1. Attach your RJ-45 network cable(s) from port 1 on your ISDN
BRI network to the connector labeled ISDN S/T on the Quad
BRI network interface module.
2. Power on the television monitor.
3. Power on the ViewStation FX or VS4000. Once you power up the
system, there is a 20-second delay before you see the Polycom
logo.
4. Once your interface is properly connected, you are ready to
configure your ViewStation FX or VS4000. Proceed to chapter 3,
Initial System Setup.
