Chapter 4 - Advanced Configuration for your Network Environment
system. Changes made in some PRI configuration screens are also
reflected in the PRI Information screen.
To access the PRI Information screen:
Select System Info > Admin Setup > Video Network > IMUX >
PRI Network > PRI Information. The following screen appears

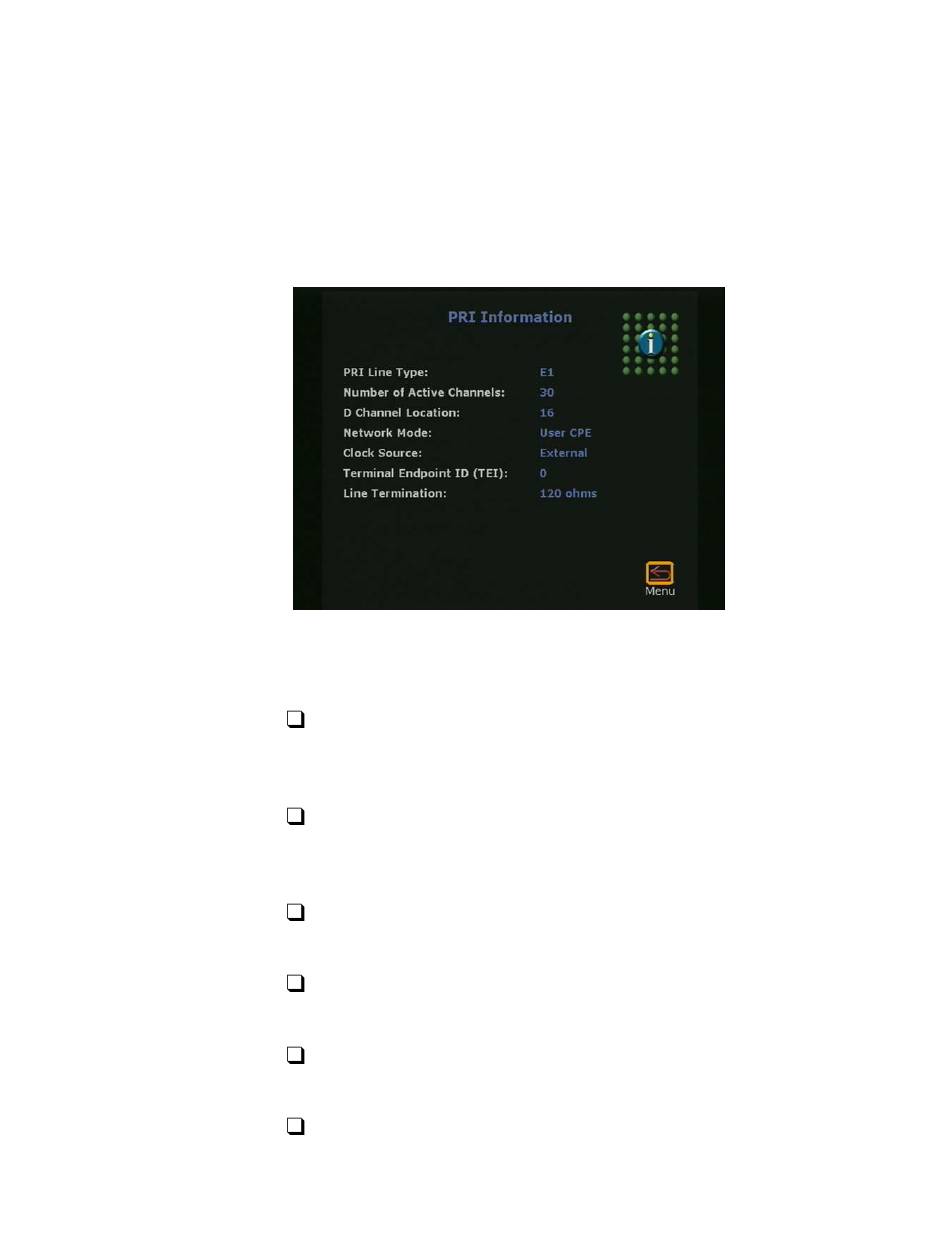

Figure 4-15. PRI Information (E1) Screen
The information displayed on this screen is listed as follows:
PRI Line Type—The PRI Line Type is automatically detected
by the ViewStation FX and VS4000. The PRI line type can be T1
or E1.
Number of Active Channels—This number is set automatically.
A T1 line has 23 active channels. An E1 line has 30 active
channels.
D Channel Location—This location is set automatically. The D
Channel Location for an E1 line is 16 and 24 for a T1 line.
Network Mode—User CPE is the default setting on the
ViewStation FX and VS4000.
Clock Source—External is the default setting on the
ViewStation FX or VS4000.
Terminal Endpoint ID (TEI)—0 is used by default and cannot
be edited.
