ViewStation FX/VS4000 User Guide
182

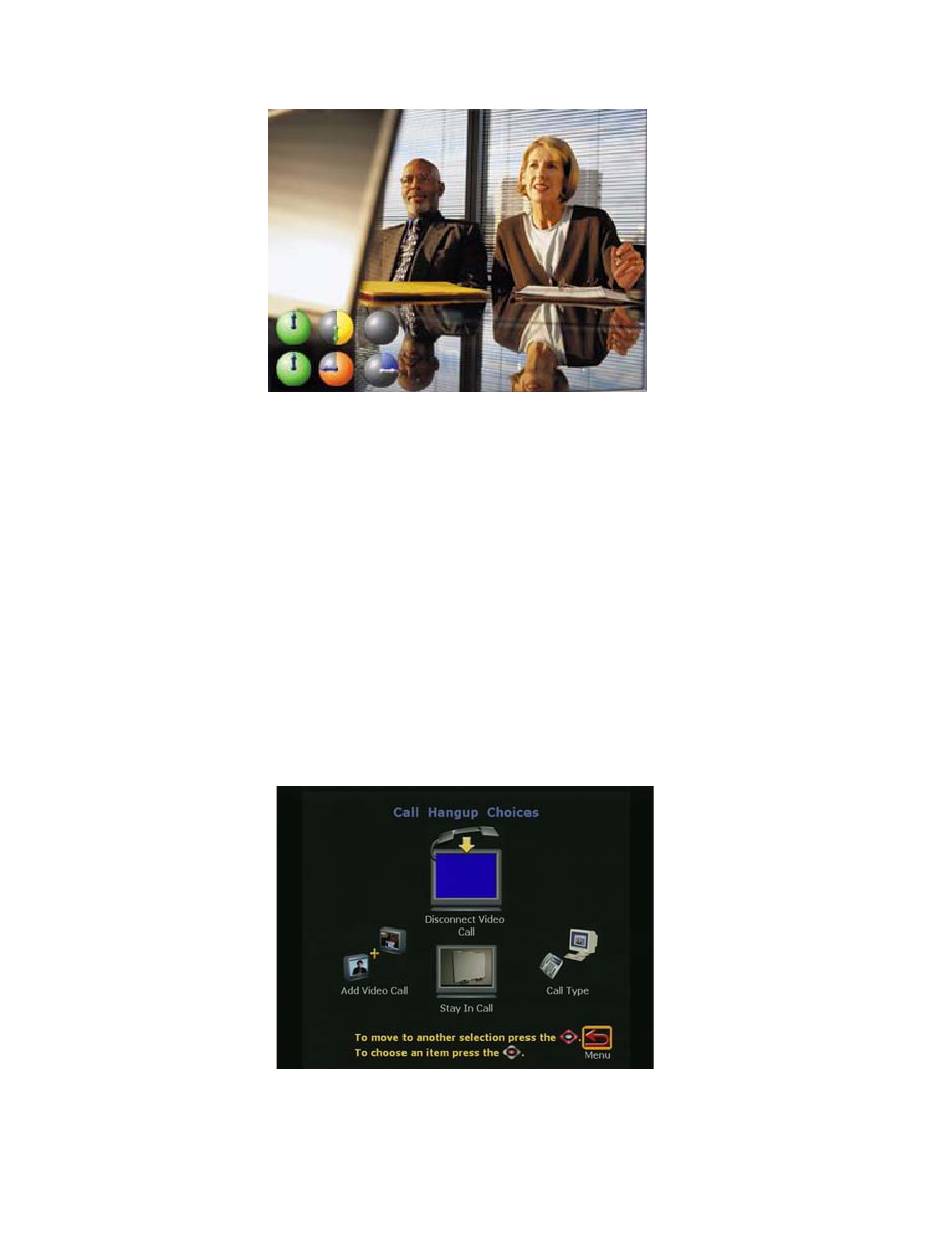

Figure 5-3. Call Progress Indicators
When the call completes, the party you called appears on the
6.
screen, and you appear in the picture-in-picture (PIP) window
at the lower right. If you have a two-monitor system, the party
you are calling appears on the main monitor, and you appear on
the second monitor.
If the call does not complete, an error message is displayed. If
you receive an error message, press the INFO button on the
remote control for an explanation. For V.35/RS-449 systems,
consult your DCE interface for error messages.
7. To end your call, press the CALL•HANG-UP button on the
remote control. The following screen appears.
Figure 5-4. Call Hangup Choices Screen
8. Highlight the Disconnect Video Call icon and press the
SELECT button on the remote control. If the call was made with
