Figure 2-3.V.35/Rs-449 Network Interface Module (P-Link Side) - Polycom ViewStation FX4000 User Manual

ViewStation FX/VS4000 User Guide
50

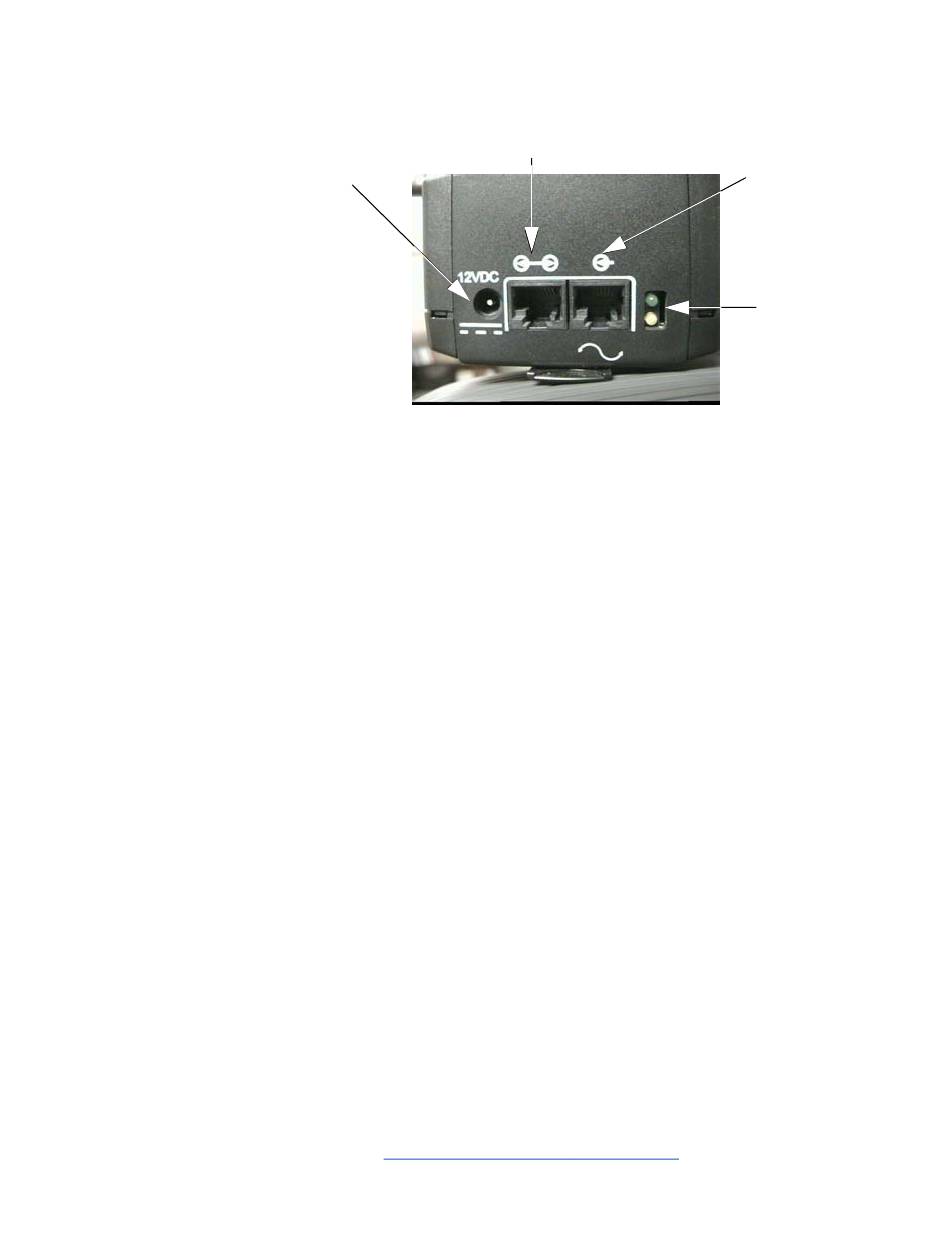

Figure 2-3 shows the peripheral link (P-LINK) side of the network
interface module that connects to the ViewStation FX or VS4000.
12 VDC Connector
(not used)
Figure 2-3. V.35/RS-449 Network Interface Module (P-LINK side)
To connect the V.35/RS-449 network interface module to the
DCE:
The V.35/RS-449 network interface module contains two HD-44
female ports (labeled 1 and 2) that connect to the data
communications equipment (DCE).
1. Connect the HD-44 male cable ends to ports 1 and 2 on the
network interface module. If you want to connect only one
cable, connect to port 1 on the interface module.
2. Tighten the screws on the connectors.
3. Connect the remaining cable ends to the DCE's V.35/RS-449
port and the DB-25 RS-366 dialing port, if used. If you are
connecting only one cable, connect to the lowest ordered port on
your DCE.
Tighten the screws on the connectors.
4.
5. Power on the television monitor.
6. Power on the ViewStation FX or VS4000. Once you power up the
system, there is a 20-second delay before you see the Polycom
logo.
Once your interface is properly connected, you are ready to
7.
configure your ViewStation FX or VS4000. Proceed to next
chapter, Initial System Setup, on page
Port (not used)
71.
Input Port
LEDs
