© Polycom, Inc. 2002
As a precautionary measure to avoid losing the PRI signal when
the ViewStation FX or VS4000 is powered off, the PRI network
interface should be connected to the provided external 12-volt
DC power supply. Failing to do will result in the PRI line going
into red alarm.
The external 12-volt DC power supply is always required in
European countries.
For more information about the external 12-volt DC PRI power
supply, refer to the Polycom Office Integrators' Reference Manual.
3.
Connect one end of the light blue keyed RJ-45 cable to the
connector labeled
4.
Connect the other end of the light blue keyed RJ-45 cable to the
blue keyed RJ-45 interface jack port on the back of the
ViewStation FX or VS4000.

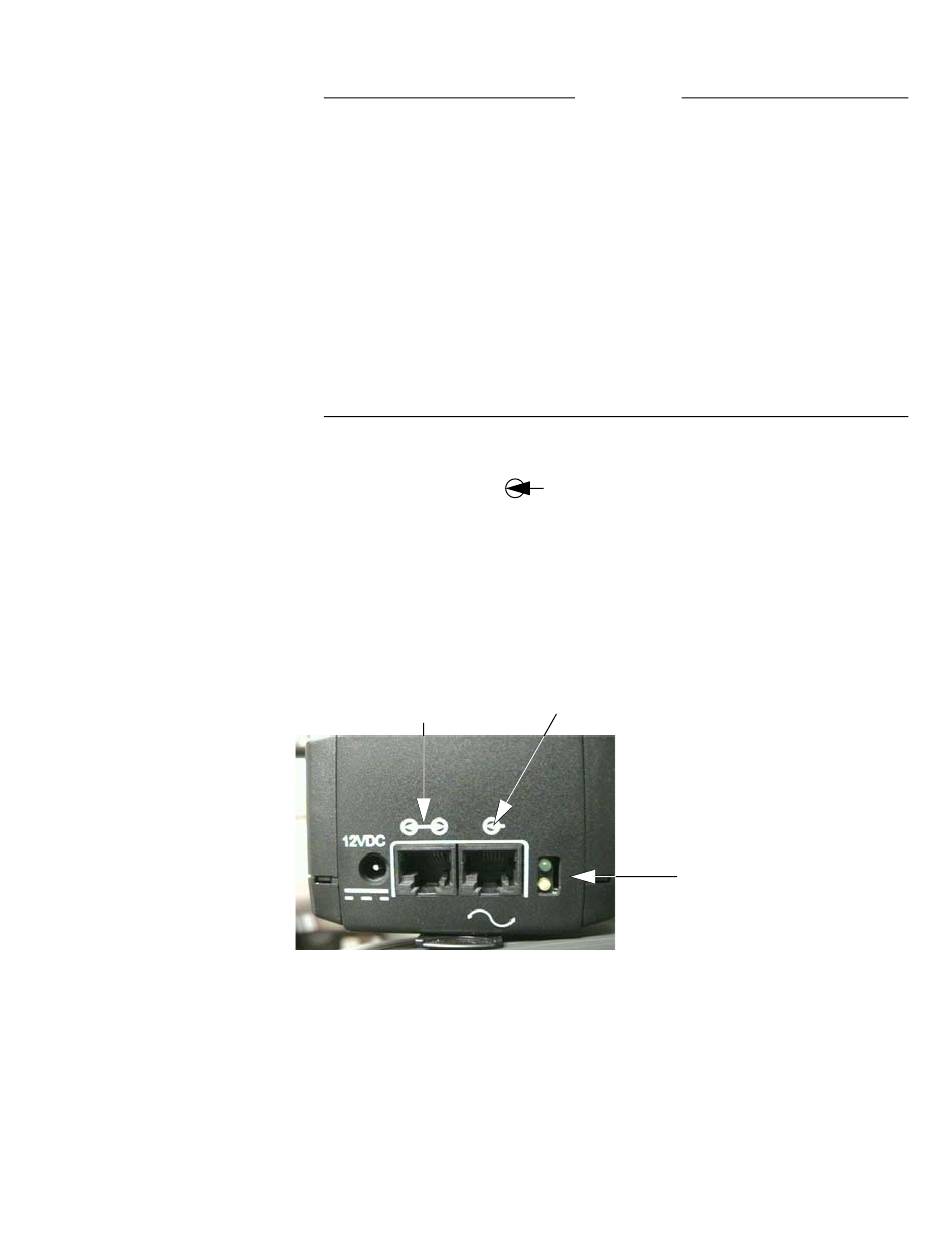

Figure 2-5 shows the peripheral link (P-LINK) side of the PRI
network interface module that connects to the ViewStation FX
or VS4000.
Port
(not used)
Figure 2-5. PRI Network Interface Module (P-LINK side)
Connecting the PRI Network Interface Module to the ISDN PRI
Network
1.
Attach your existing RJ-45 network cable from your ISDN PRI
network to the connector labeled NETWORK on the PRI
network interface module.
Chapter 2 - Installing the ViewStation FX/VS4000
Notes
on the PRI network interface module.
Input Port
LEDs
53
