Configuring the V.35/RS-449 Serial Interface Control Signals

126
For information about the initial V.35/RS-449 configuration
screens, see Setup for the V.35/RS-449 Network Interface, on
page 82 in chapter 3.
The ViewStation FX and VS4000 are designed to be compatible with
the tested network equipment without any modification needed.
However, if your network equipment varies from the conventional
V.35/RS-449 video implementations, use the Advanced V.35 screen
to adjust the operation of many of the signals.
To access this screen:
Select System Info > Admin Setup > Video Network > Advanced
V.35.

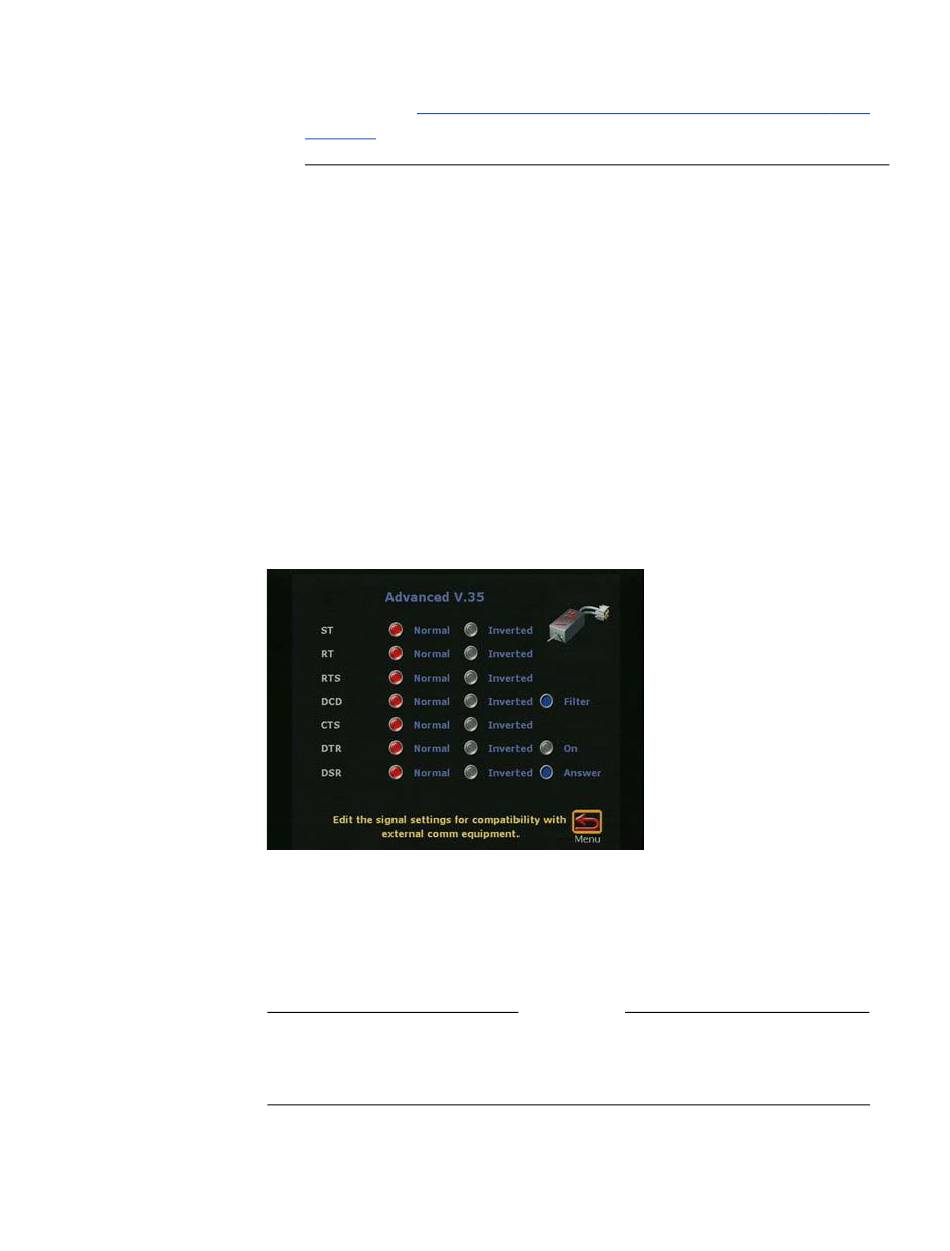

Figure 4-9. Advanced V.35 Screen
The default setting for these signals is Normal. To invert these
signals, select Inverted.
For more detailed information about serial interface control signals,
to the Polycom Office Integrators' Reference Manual.
