Chapter 3 — Introducing the BlueScale User Interface
Toolbar Option Map
General
General Status
O, A, S
General Status
ƒ Partition Selection
– Drives Status > Drives screen
– Media Status > Inventory screen
ƒ TAPs
ƒ Robotics Status
– Robots
– Service Frames
ƒ Power Status
ƒ Power Usage
ƒ Fans Status
ƒ Density
Inventory
O, A, S
Inventory
ƒ Partition
ƒ Source (for media move)
ƒ Destination (for media move)
ƒ Move Queue (defined moves)
ƒ View Source Slot
ƒ Find by Barcode
ƒ Start Moves (defined moves)
ƒ Start in Background (defined moves)
ƒ Advanced
– Upload Moves
– Download Inventory
1
Import/Export
O, A, S
Import/Export TeraPack Magazines
ƒ Storage Partition
Storage Pool
– Import
– Export/Exchange
Entry/Exit Pool
– Import
– Export/Exchange (Full Chambers)
– Export/Exchange (Pop. Chambers)
Recycle Encryption Media
ƒ Cleaning Partition
– Import
– Export/Exchange
– Export/Exchange Expired
ƒ Rotation Manager 3
ƒ Advanced
– Advanced Import/Export
Go to General (Cont.)
Maintenance
Package Update
A, S
Begin Library Update
Begin Drive Update
Manage Packages
Manage Package Servers
Auto Download Options
Tools
A, S
Utilities
ƒ Basic Utilities List
ƒ Upload Backup Configuration
ƒ Advanced Utilities List 8
– Save MLM Database
– Restore MLM Database
– HHM: View Data
Traces
ƒ LCM Trace
ƒ Component Trace
EtherLib Status
Diagnostics
A, S
Motion Diagnostics
ƒ Not Applicable
Go to Maintenance (Cont.)
The BlueScale user interface changes as features are added or modified between BlueScale
Note:
revisions. The toolbar options shown here may differ from those available for your library.

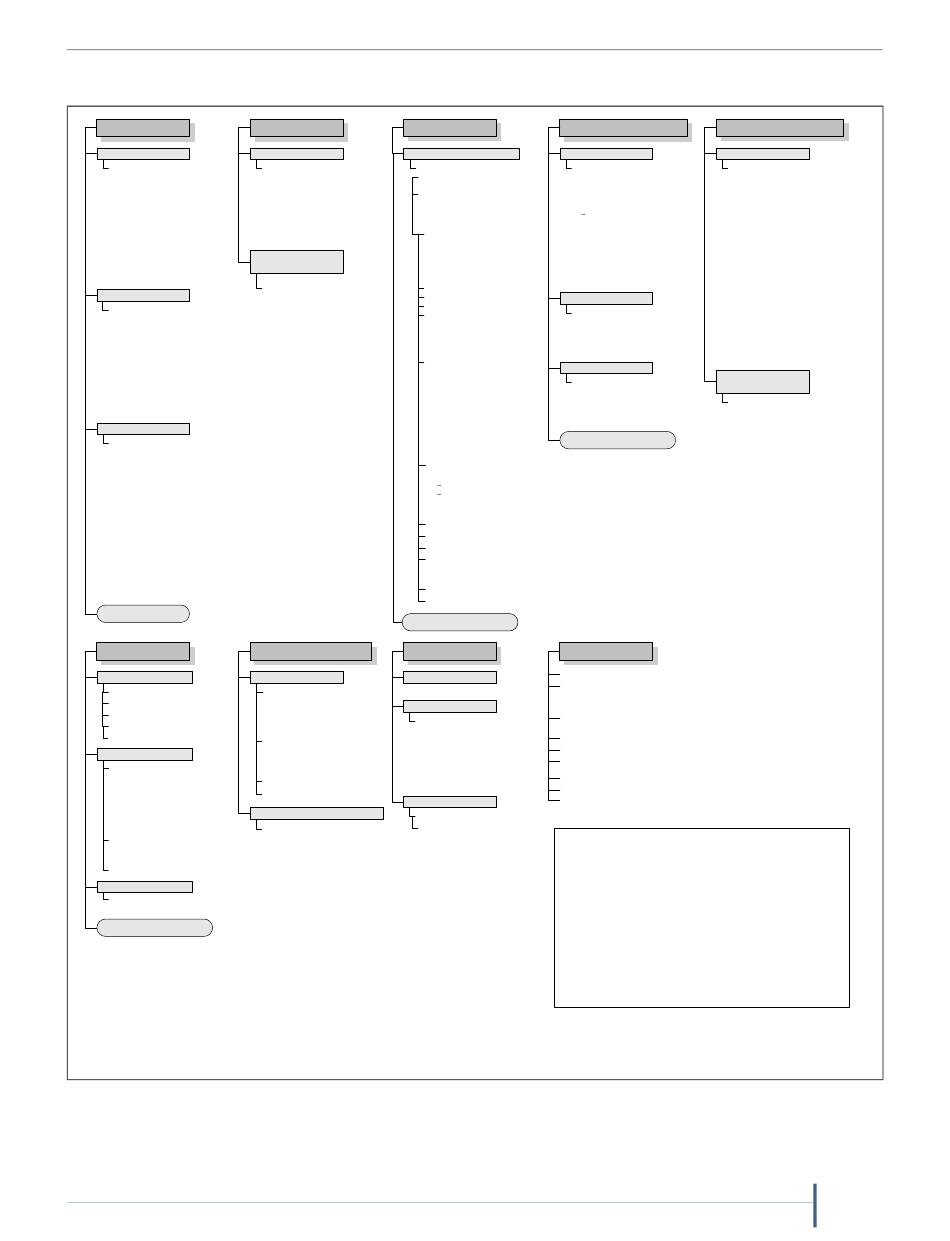

Figure 37 Map of BlueScale Toolbar options.
November 2020
General (Cont.) Configuration
Metrics Partitions
O, A, S
Metrics Shared Library Services
ƒ Metric ƒ New
– Power Consumption ƒ Summary
– Target
ƒ Edit
– Drive Write Performance ƒ Delete
– Drive Read Performance
ƒ Global Spare
– Storage Density
– Global Spare Usage
– Media Type
Name and Media Type
– Units
Media Lifecycle
Management
O, A, S
Media Lifecycle Management
S: SlotIQ
Report
S: Robotic Control Path
ƒ Partition
S: Spare Drives (Global Spares)
ƒ Report
Chambers and Drives
– Media Health
– Remaining Capacity
– Load Count
– Write Errors
– Cleans Remaining
S: MLM Media Verification
– Born on Date
– Exported Media
– Last Write Time
– Last Read Time
ƒ Save Report
ƒ Barcode Filter
S: Encryption
S: Fibre Channel Loop IDs (Drives)
S: Partition Users
S: Robotic Path Visibility
S: Exporting F-QIP Configuration (RIM)
C/S: Save Library Configuration
C/S: Save Partition
Go to Configuration (Cont.)
Maintenance (Cont.) Security
AutoSupport Switch User
A, S
ƒ Library Controller: Login
Send Log Set
ƒ Select Profile to Send Log Set
Edit Users
ƒ Select Ticket Type
ƒ Profile Summary
Library Users
ƒ Confirm and Submit Ticket ƒ Users
– Delete
Manage Profiles
– Edit
ƒ New Profile
ƒ Add/Update User
ƒ Remove
– User
ƒ Edit Profile
– Password
Configure Alarms
– User Type
Log Forwarding
Encryption
Media Lifecycle Management
Encryption User Login
Encryption Configuration
Media Lifecycle Management Tools
ƒ Configure
ƒ Discover Media
– Single User Mode
– Select Partition
– Multi-User Mode (BlueScale
ƒ Stop Discovery (only visible when
Discover Media is running)
ƒ Spectra SKLM
ƒ Pause PostScan (only visible when
ƒ KMIP
PostScan is running)
ƒ Check Key Files
ƒ Manual PostScan
ƒ Import Key
ƒ Delete Records
ƒ Add Key
ƒ Download MLM Database 2
– Moniker
ƒ Download DLM Database 2
ƒ Export Key
ƒ Delete Key
Configuration (Cont.)
Drives (DLM)
(Cleaning or Storage)
A, S
Drives
ƒ Drive Traces
ƒ Drive Performance
ƒ Drive Firmware Update
ƒ Drive n
1
Add
– Remove
– Replace
– Clean
ƒ C/S: Name
– Detail
ƒ C/S: Media Type
ƒ S: Advanced – DLM Report
– Test
– Emulation
– Reset
– Soft Load
Controllers
Controllers
ƒ Add 1
ƒ C/S: Storage Chambers
ƒ Remove
ƒ S: EE Chambers
ƒ Replace
ƒ S: Drives
ƒ Failover
ƒ S: Cleaning Partition
System
ƒ PreScan
– Enable PreScan
System Setup—Option Enablement
ƒ PostScan
ƒ Hardware ID
– FullScan 4, 7
ƒ Key
– QuickScan 5, 7
– Save
– QuickScan using Global
ƒ Currently Installed Keys
5, 7
Spare
– Scan After Time (Days)
Go to Configuration (Cont.)
– Scan After Write
– Scan After Read
(Encryption user logged in)
4
BlueScale
3, 4
BlueScale Pro version
– Spectra SKLM 3, 5, 7
– KMIP 3, 6, 7
ƒ Address
ƒ Fibre Mode
Status Bar
Refresh
O, A, S
HHM Notification (visible when
maintenance threshold is reached)
ƒ Send AutoSupport Ticket > Send Log Set
A, S
System Status
ƒ System Messages
Remote Support
BlueScale Vision Camera (when enabled)
Auto Download Notification (when a new
package is downloaded)
Last Refresh (time and date)
BlueScale Software Version
Network Settings Icon
S
–OR–
2
Library Name
Notes:
4
1) Available at the library's front panel touch screen only.
2)
Available through remote access only.
3, 4
Encryption Pro only)
3)
3, 5, 7 Only available with a purchased key.
3, 6, 7 4)
Available for LTO-4 or later generation drives.
5)
Available for LTO-5 or later generation drives.
6)
Available for LTO-6 or later generation drives.
7)
Available for TS11xx technology drives.
8)
Do not use any Advanced Utilities except those listed here unless instructed
to do so by SpectraGuard
Letters indicate the features available to each user type:
S) Superuser
A) Administrator
O) Operator
