LTO Physical Label Specifications
 Label stock must fit within the label recess on the face of the cartridge
 Minimum length sufficient for the quiet zones, start‐stop, and data
 Minimum width no less than 1.5 mm narrower than the cartridge label
 Maximum label thickness, including the RFID tag, if present, together
 The label and adhesive must have an environmental performance to
Detailed Specifications for TS11xx Technology
Cartridge Barcodes

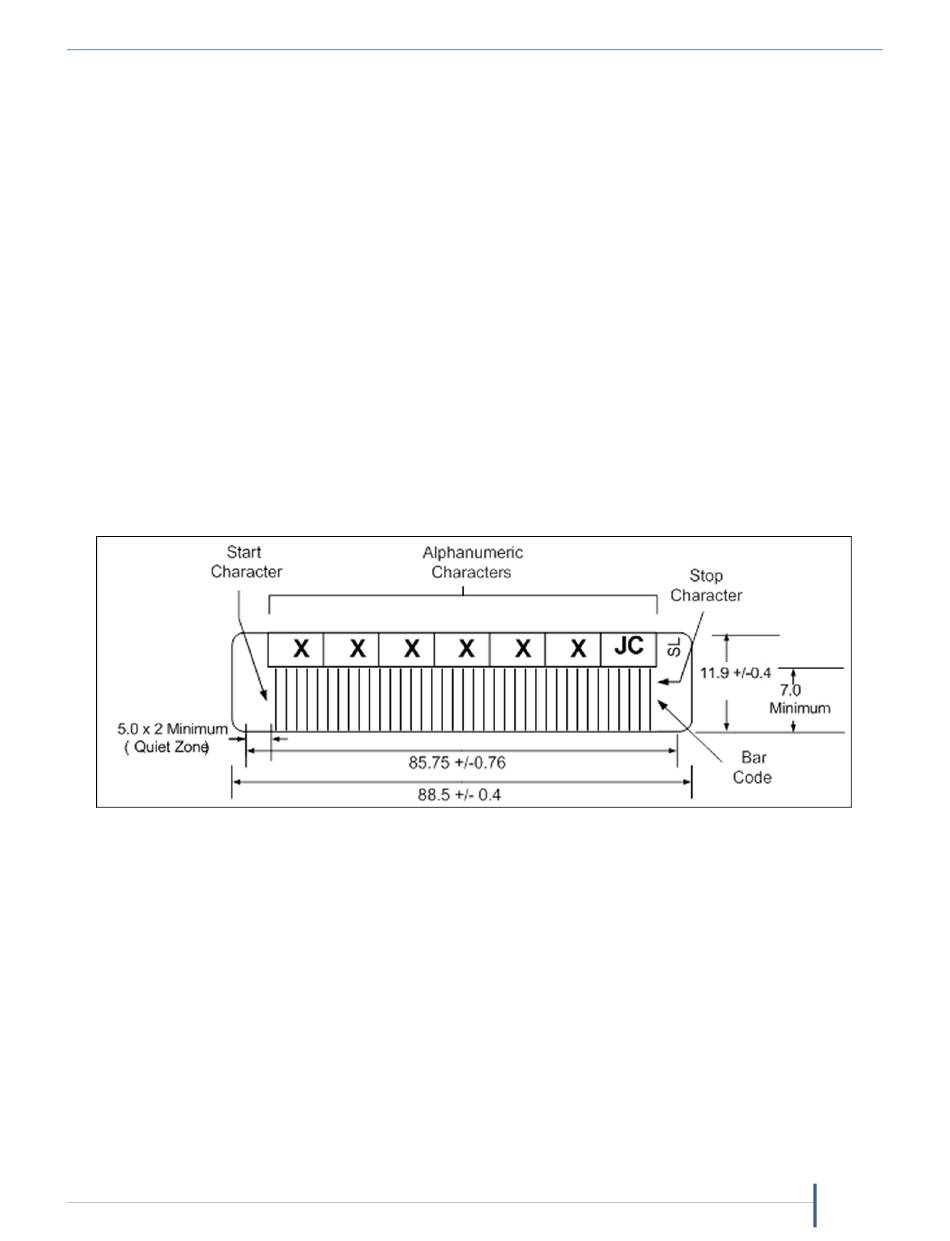

Figure 328 shows the dimensional specifications for TS11xx technology
labels with the alphanumeric characters above the barcode.
Figure 328 Barcode specifications for TS11xx technology media; alphanumeric characters on
top. All measurements are in millimeters.
November 2020
without curling up on the sides or ends (79 mm X 17 mm +0/–0.8).
characters (nominal 74.088 mm).
recess width. Corners are cut with a 1.5 mm radius.
with any associated layers and adhesives cannot exceed 0.40 mm.
match or exceed the environmental specifications of the cartridge to
which it is applied.
Note: When using barcode labels with alphanumeric characters along
the bottom edge, the label must be positioned so that barcode is
at least 13.72 mm below the top edge of the cartridge to ensure
that the barcode reader can read the label.
Barcode Label Specifications
