Chapter 1 — Library Overview
Component
Dual AC Power
Module
(continued)

Service Frames

The standard TFinity library includes two service frames, one for each
TeraPorter in a standard two TeraPorter library. The service frame is the
last frame on each end of the library.
November 2020
Description
Dual AC 2 Power Module
LEDs indicate the status of the primary and secondary AC inputs and the
overall dual AC 2 module.
 Primary and Secondary Input Power LED States:
 Green ‐ Good/Active
 Blue ‐ Good/Not Active
 Orange ‐ Bad/Active, cannot switch to secondary source
 Red ‐ Under Voltage Lockout
 Off ‐ Not Present
 Dual AC 2 Status LED States:
 Blinking Green ‐ Good Status
 Solid Red ‐ Over Temperature, > 100C
Notes:
 The dual AC 2 does not require the power sources for the AC inputs for a
frame to be on the same phase.
 The convenience outlet is powered by the primary AC input. If the primary
input fails, the convenience outlet does not function.
 The dual AC 2 (16A) can be distinguished from the dual AC 2 (13A) by the
book and triangle with exclamation graphics below the outlet fuse on the
back of the 16A dual AC 2.
Convenience outlet Secondary AC breaker,
and fuse input, and status LEDs

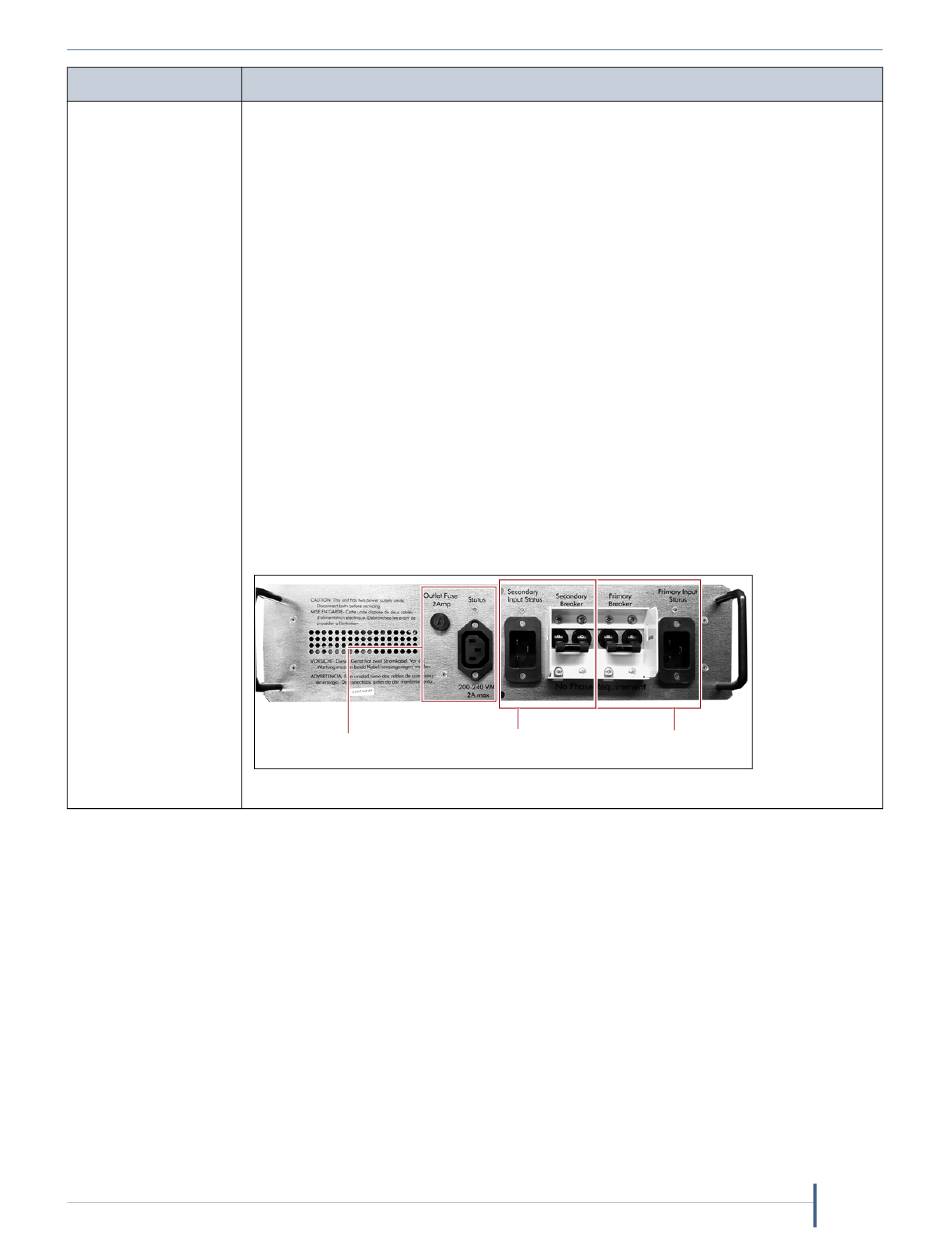

Figure 9 Dual AC 2 power module.
Note: Starting with BlueScale12.8.04, a non‐isolating service frame
configuration is available that replaces the right and left service
frame with media expansion frames (see Media Expansion
Frames on page 44). This provides more storage slots at a lower
cost, but means that some slots may be inaccessible if a
TeraPorter is in the service position. The chambers that could be
blocked by the TeraPorter are called the exclusion zone. They are
the last chambers filled when importing magazines.
Primary AC breaker,
input, and status LEDs
