Goodrive300-19 series open loop vector inverter special for hosit
No. Name
Digital
4 potentio-
meter
5 Buttons

5.3 Keypad displaying

The keypad displaying state of Goodrive300-19 series inverters is divided into stopping state
parameter, running state parameter, function code parameter editing state and fault alarm state and
so on.
5.3.1 Displayed state of stopping parameter
When the inverter is in the stopping state, the keypad will display stopping parameters which is shown
in figure 5-2.
In the stopping state, various kinds of parameters can be displayed. Select the parameters to be
displayed or not by P07.07. See the instructions of P07.07 for the detailed definition of each bit.
Tuning frequency. Please refer to P08.41.

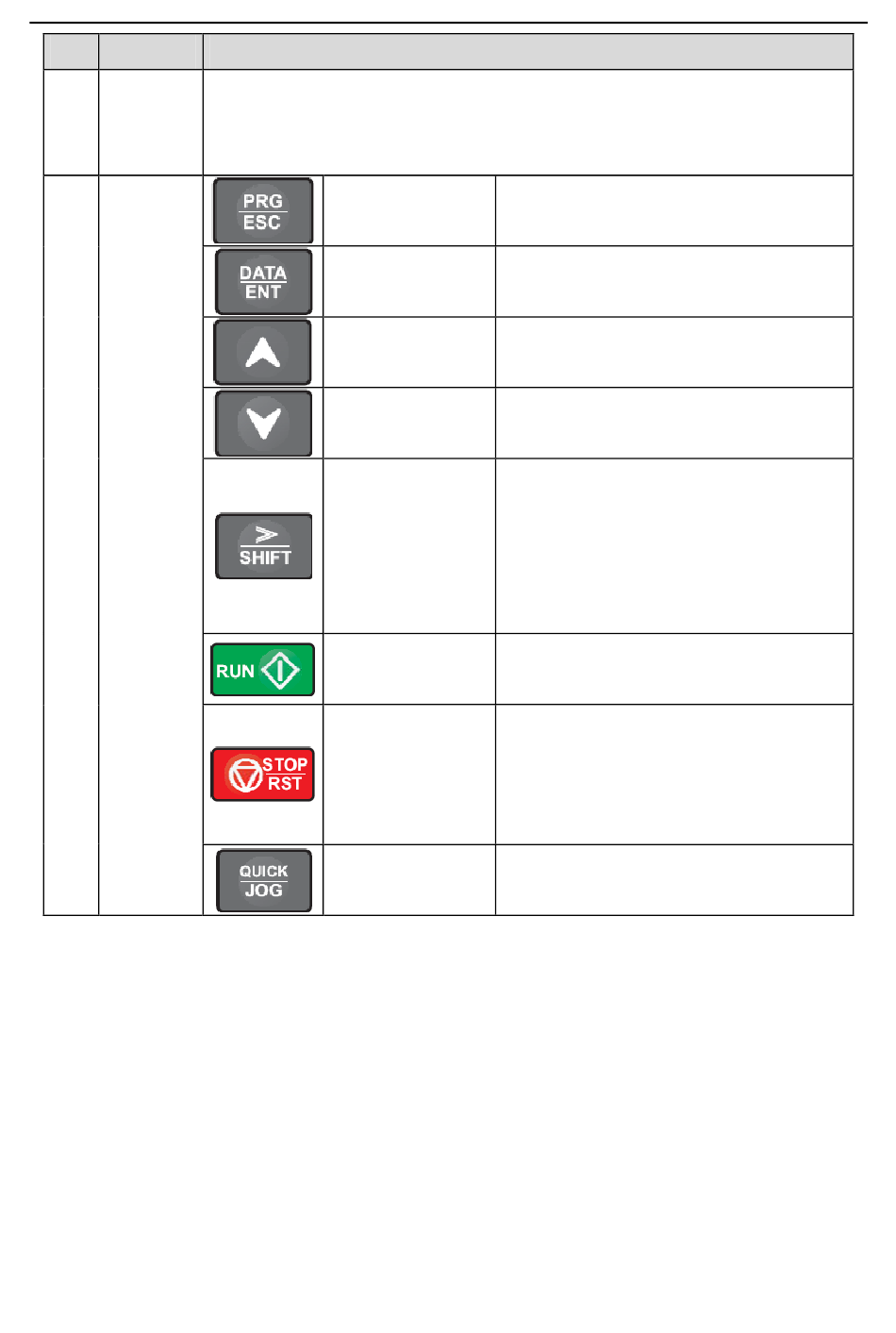

Programming key
Entry key
DOWN key
Right-shift key
Run key
Reset key
Quick key
Description
Enter or escape from the first level menu
and remove the parameter quickly
Enter the menu step-by-step
Confirm parameters
Increase data or function code
UP key
progressively
Decrease data or function code
progressively
Move right to select the displaying
parameter circularly in stopping and
running mode.
Select the parameter modifying digit
during the parameter modification
This key is used to operate on the inverter
in key operation mode
This key is used to stop in running state
Stop/ and it is limited by function code P07.04
This key is used to reset all control modes
in the fault alarm state
The function of this key is confirmed by
function code P07.02.
-38-
Keypad operation procedure
