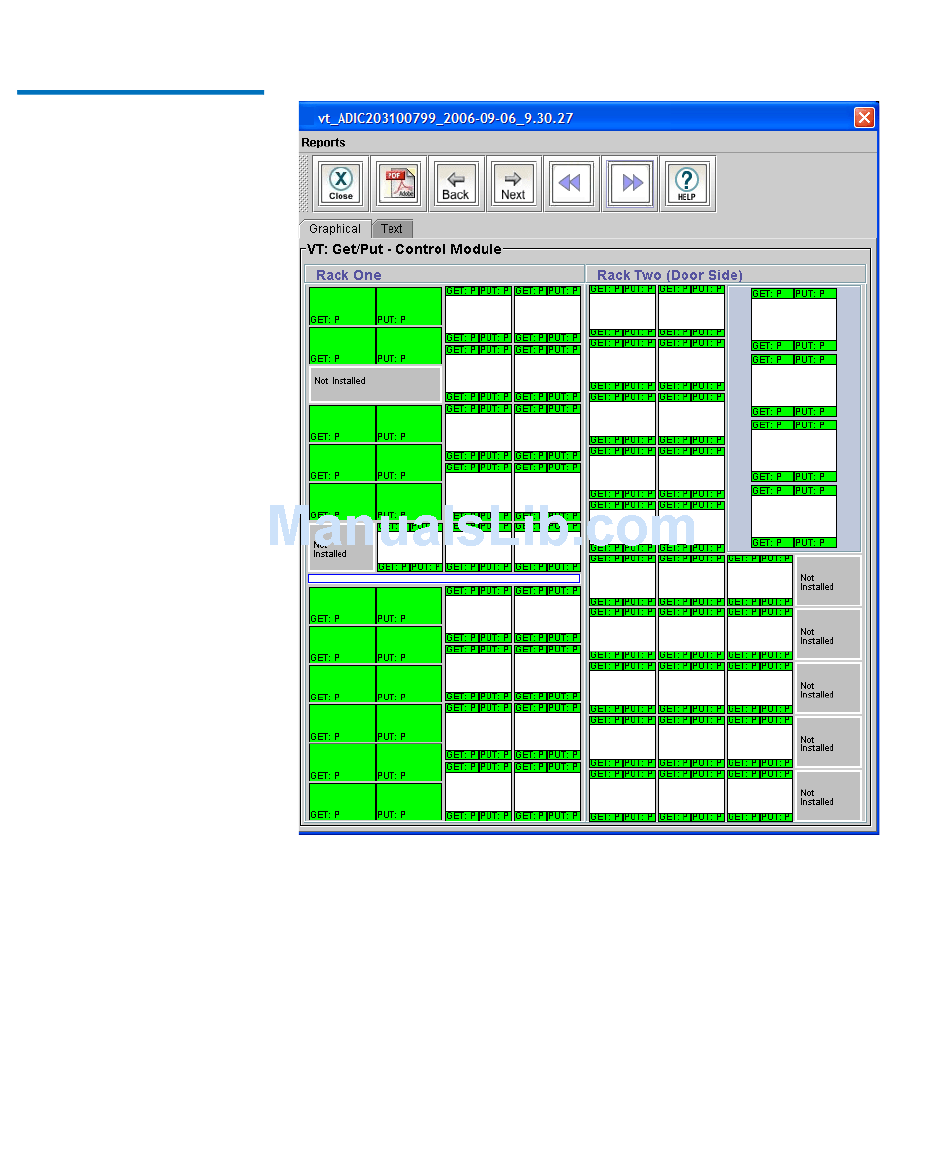

Figure 74 Get/Put Graphical
Report
Quantum Scalar i6000 User's Guide
Scan Fiducials
The Scan Fiducials graphical report shows the results for tests of the
fiducial barcode on each tape magazine and drive sled, including the
width, expected Y position (shift), and the number of hits the scanner
receives while traveling up and down. (Only known magazines are
tested.)
• If the graphical report shows a failed result for one or more tape
magazines, replace the affected magazines.
Chapter 15: Maintaining Your Library
Maintenance Actions
641
