Chapter 15: Maintaining Your Library
Maintenance Actions

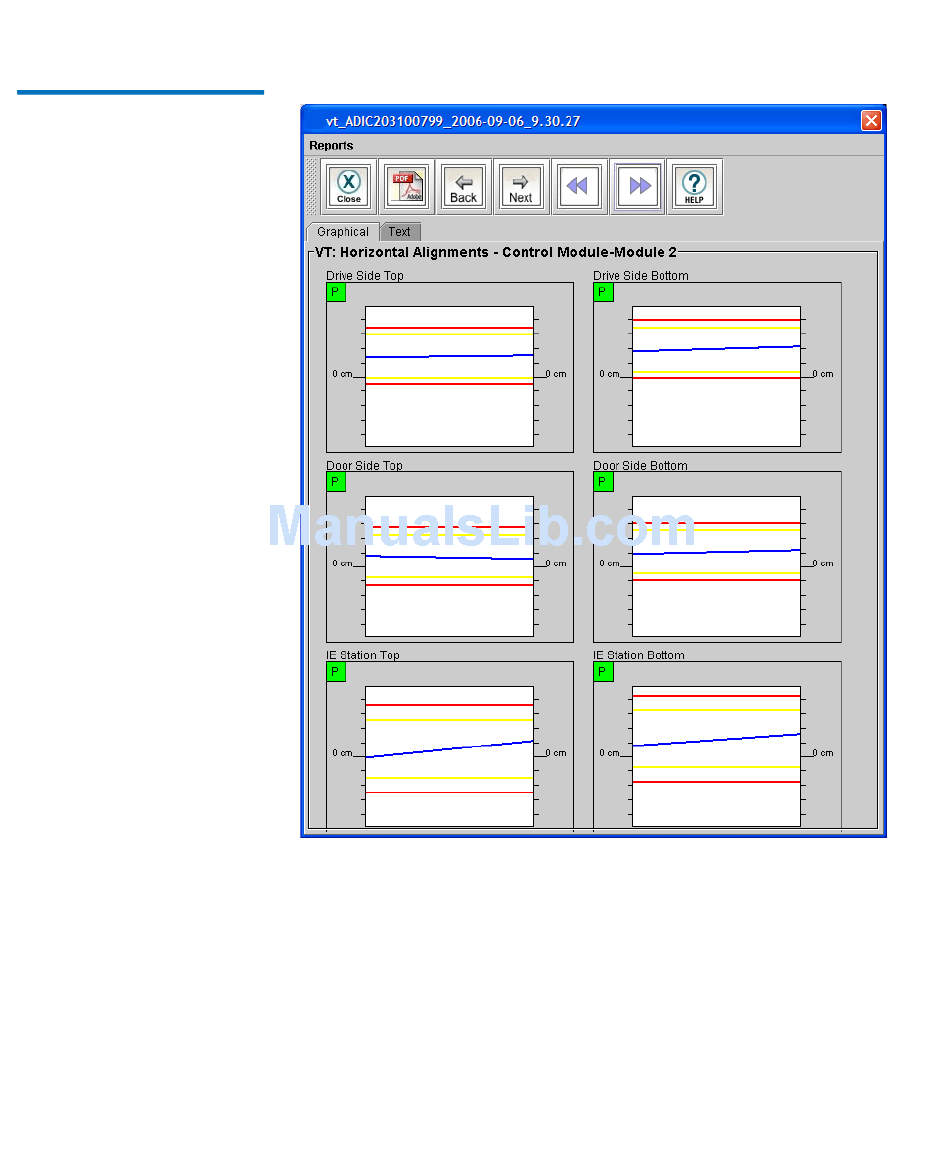

Figure 71 Horizontal
Alignments Graphical Report
636
Calibration Offsets
The Calibration Offsets graphical report shows the results for tests of
tape magazine, drive sled, and I/E station offsets compared to
predefined tolerances. Reports are generated for drive-side and door-
side for all frames.
• If the graphical report shows a failed result for one or more tape
magazines, make sure the magazines at the location of the failure
