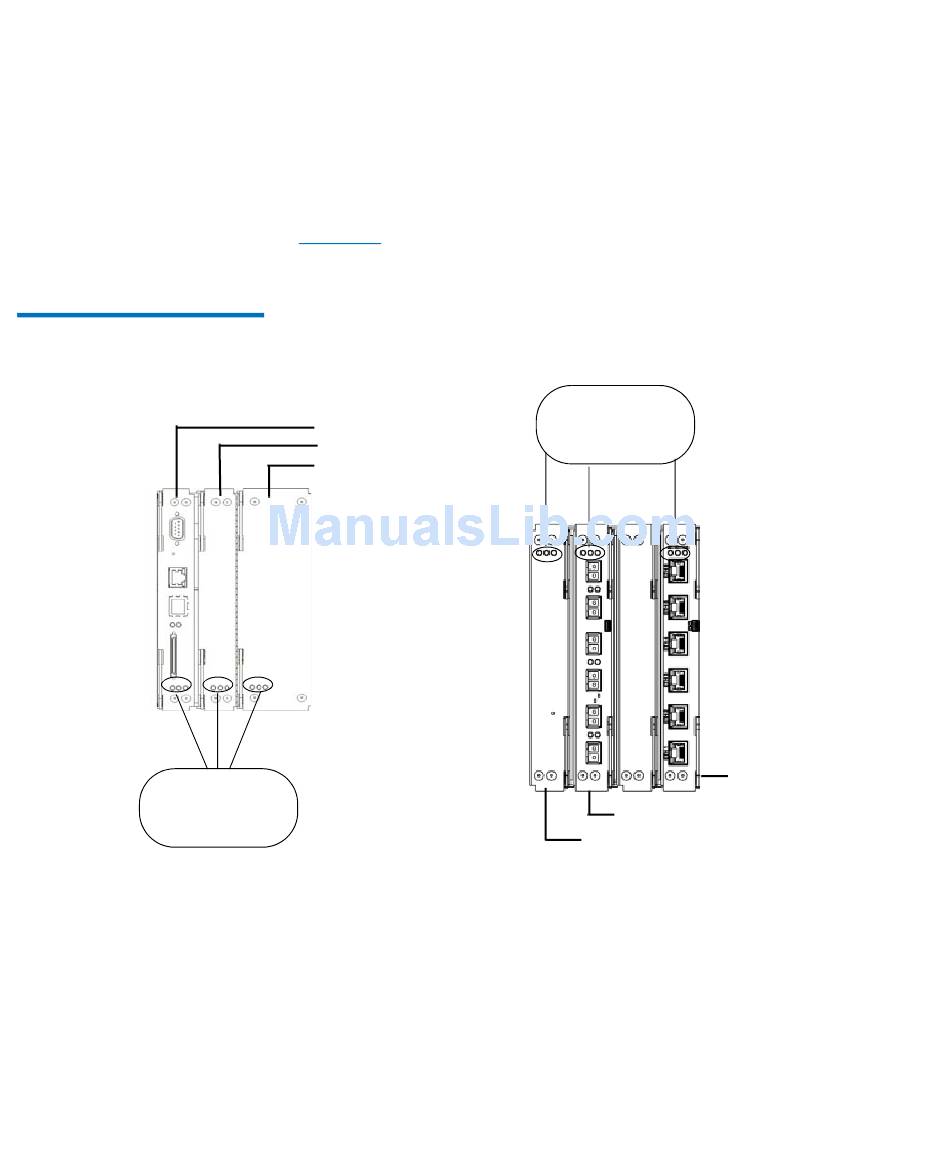

Figure 23 Locations and Colors
of Blade Status LEDs
blade LEDs
- left = green
- middle = amber
- right = blue
Quantum Scalar i6000 User's Guide
• Ethernet Expansion blade
• Robotics control unit (RCU)
• Library motor drive (LMD)
• Library power control (LPC)
Figure 23 shows the locations and colors of the status LEDs on the five
blades that can be in the library.
management control blade
robotics control unit
library motor drive
Blade status LEDs provide troubleshooting information that you can use
in conjunction with tickets that the library creates. However, the LEDs
might not directly correspond to tickets. The LEDs can indicate a
firmware or hardware problem so severe that the library cannot create
or display a ticket. For example, if the MCB firmware becomes
inoperable, the amber LED flashes at 1 Hz, but the library might not be
able to display any related tickets.
Chapter 2: Troubleshooting Your Library
blade LEDs
- left = blue
- middle = amber
- right = green
Ethernet Expansion Blade
FC I/O Blade
Control Management Blade
Interpreting LEDs
