Chapter 2: Troubleshooting Your Library
Interpreting LEDs

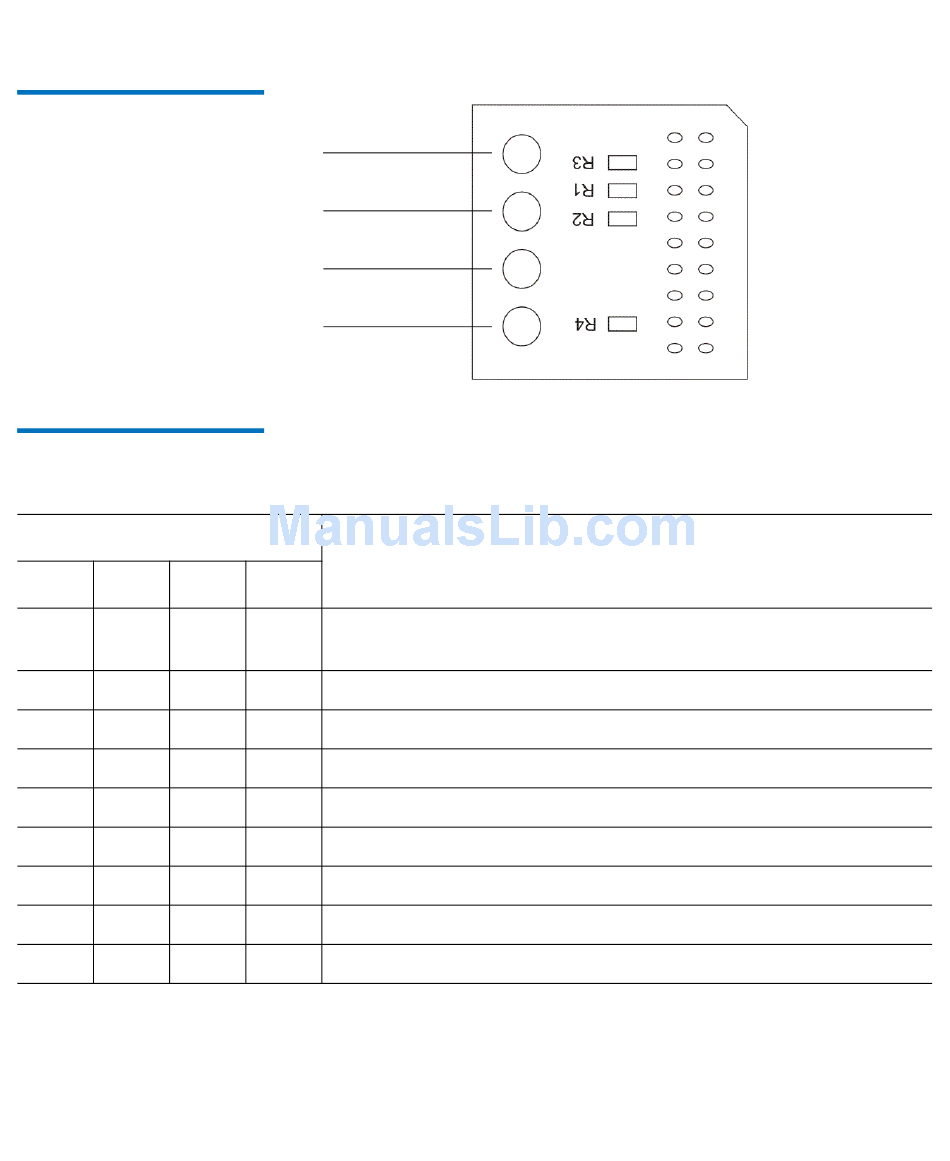

Figure 30 Locations of LBX
Terminator LEDs (Version 01)
Table 18 Explanations of LBX
Terminator LED States (Version
01)
LED On/Off Combinations
1 2 3
Off Off Off
On Off Off
On On Off
On On On
On On On
On Off On
On On Off
On Off On
On Off Off
106
4
3
2
1
4 Explanation
Off Robotics are disabled, the access door is open, or the LBX
terminator is misaligned.
Off The library has one control module and no expansion modules.
Off The library has one control module and one expansion module.
Off The library has one control module and two expansion modules.
On The library has one control module and three expansion modules.
On The library has one control module and four expansion modules.
On The library has one control module and five expansion modules.
Off The library has one control module and six expansion modules.
On The library has one control module and seven expansion modules.
