Chapter 2: Troubleshooting Your Library
Interpreting LEDs

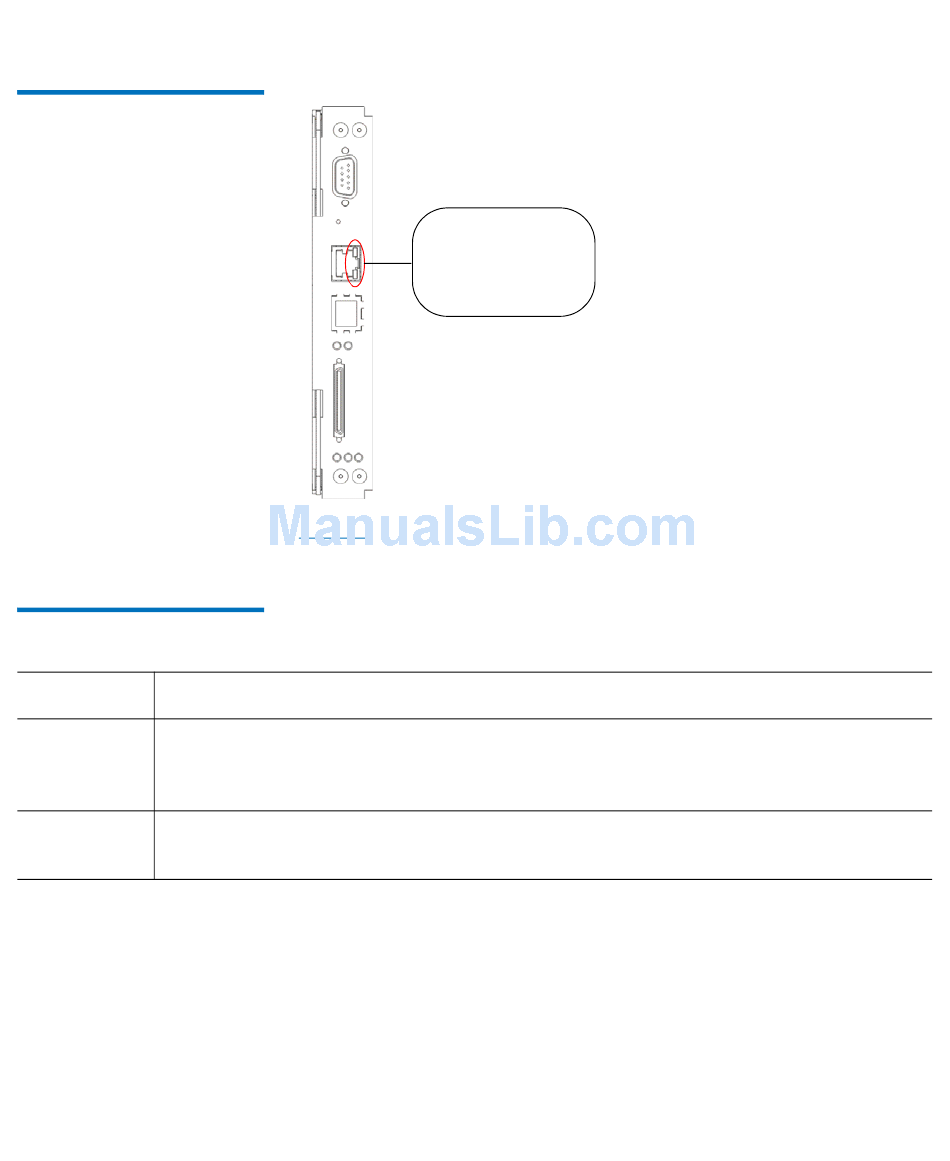

Figure 28 Locations - Colors of
MCB Ethernet Port LEDs
Table 17 Explanations of MCB
Ethernet Port LED States
LED Color Possible States and Explanations
Green • Solid on — the link is up; data can be sent or received through the Ethernet port
• Solid off — the link is not up; data cannot be sent or received through the Ethernet
port
Amber • Flashes at irregular intervals — data activity is occurring through the Ethernet port
• Solid off — no data activity is occurring through the Ethernet port
104
MCB Ethernet
port LEDs
- top = green
- bottom = amber
Table 17 describes how to interpret the Ethernet port LED activity that
you might see.
