Configuring Fibre Channel I/O Blades
In the default view, only the names of available partitions and the
names of the devices (drives) are shown. LUN spaces from 0-255 are
available. In the Show Details view, a partition that has not yet
been manually reassigned to a new map position appears in heavy
black type in the Internal LUN column. Partitions are treated by the
system as devices. You must assign a partition to the LUN/External
LUN column for the LMC to manage it and its media. In this
example, the control LUN has already been remapped as shown in
heavy black type in the LUN/External LUN column.
6 If you are working from the local touch screen, you must select an
internal device LUN, select the left arrow, and then select the desired
external LUN. If you are working from the remote client, you can use
the select method or you can drag and drop the devices from the
Internal LUN column to the appropriate LUN assignment in the
LUN/External LUN column. Always use LUN 0 for command and
control.

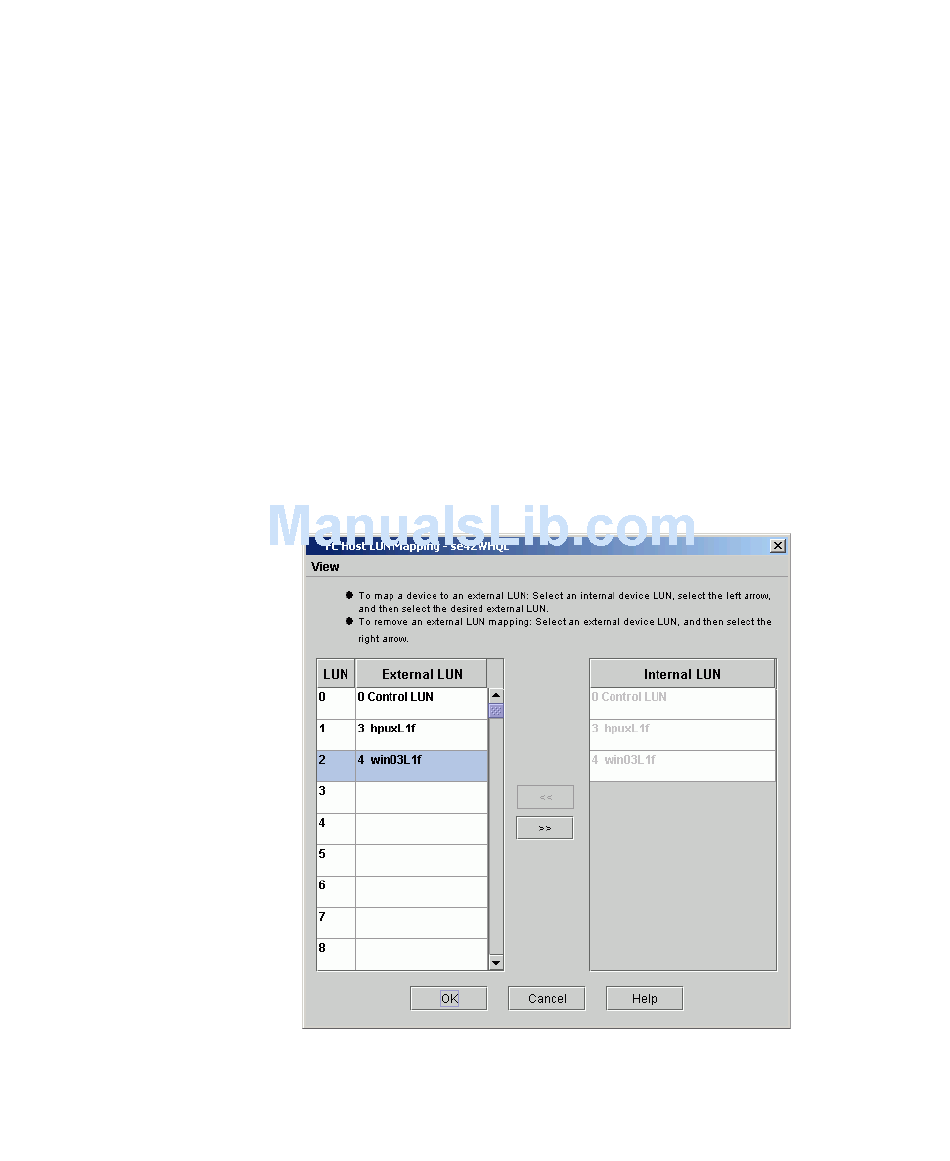

In the following figure, all devices have been mapped manually.
The new map locations appear in heavy black type in the LUN/
External LUN column. The previous (default) device map position of
