WSM KX080-3 Mechanism

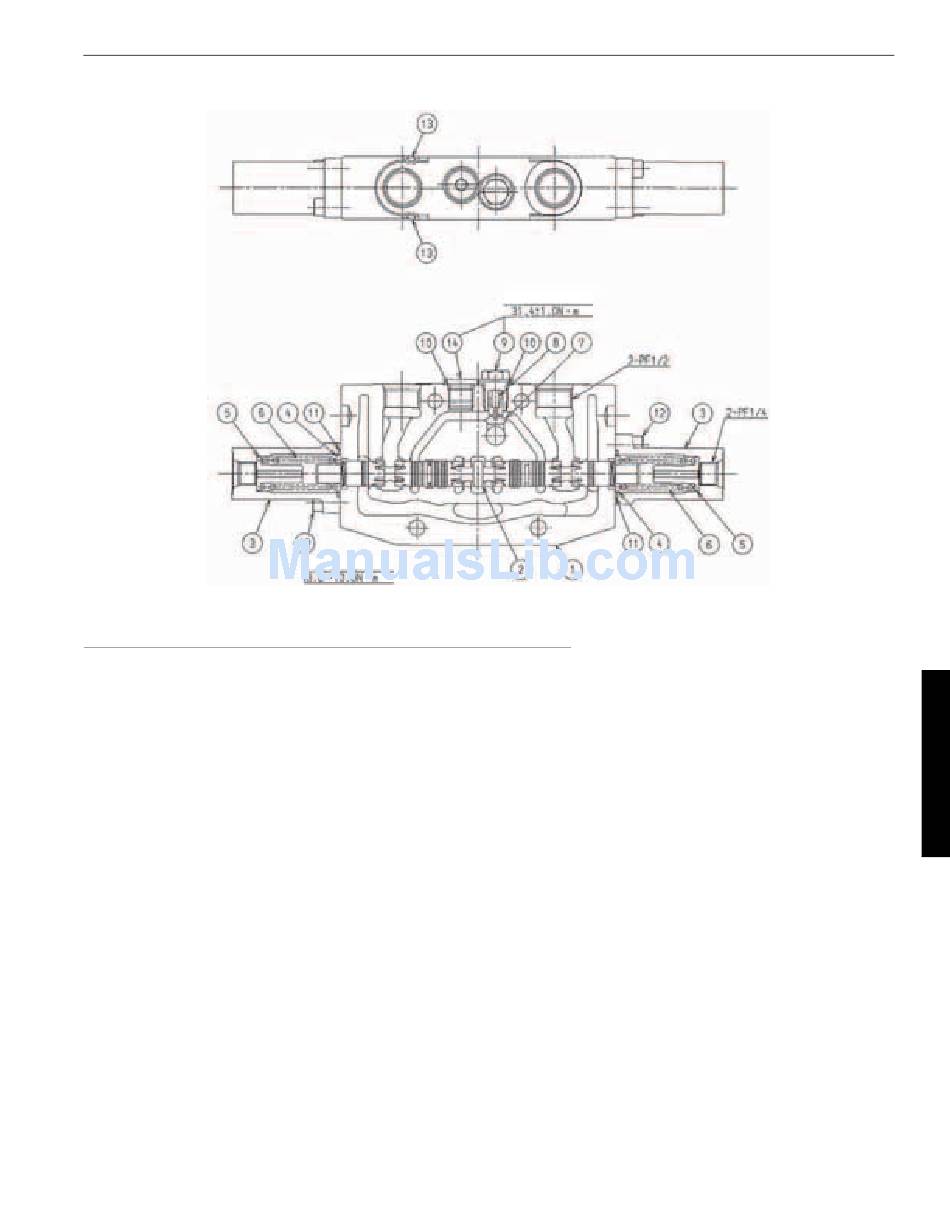

15.Swivel section
ID No. Part name
1 Valve housing
2 Spool
3 Cap
4 Spring seat
5 Spring seat
6 Spring
7 Poppet (check valve)
8 Spring (check valve)
9 Plug (check valve)
10 O-ring
11 O-ring
12 Socket head bolt
13 O-ring
14 Plug
Tightening torque (4 locations)
Q'ty Remarks
1
1
2
2
2
2
1
1
1
2
2 JISB2401,1A, P24
4 JISB1176, M6x18L
2 JISB2401,1A, G70
1
IV-M-43
Tightening torque (2 locations)
IV Hydraulic System
