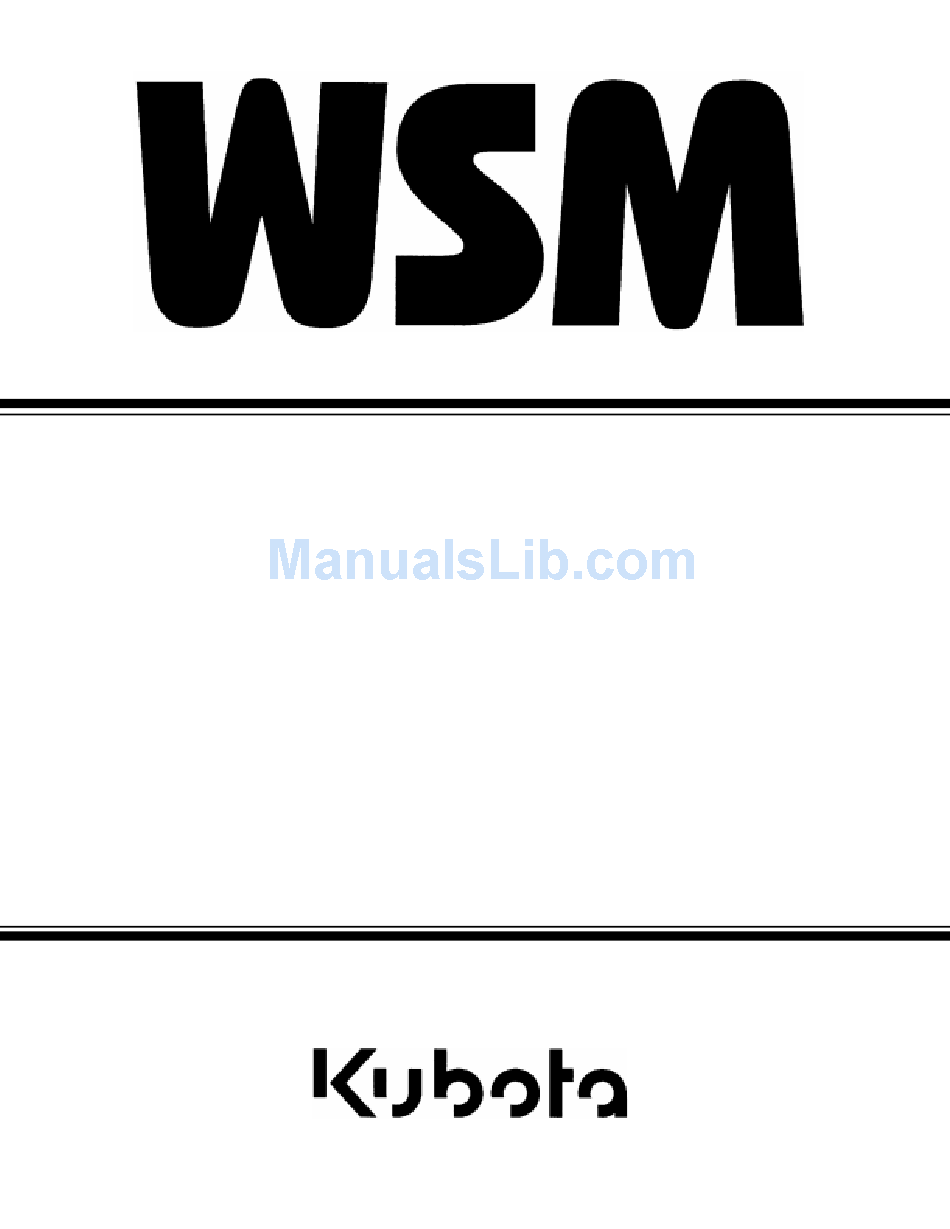

WORKSHOP MANUAL
KUBOTA EXCAVATOR
KX61-3, KX71-3
Mechanism Chapter
Code No.97899-60810
Code No.97899-61040
