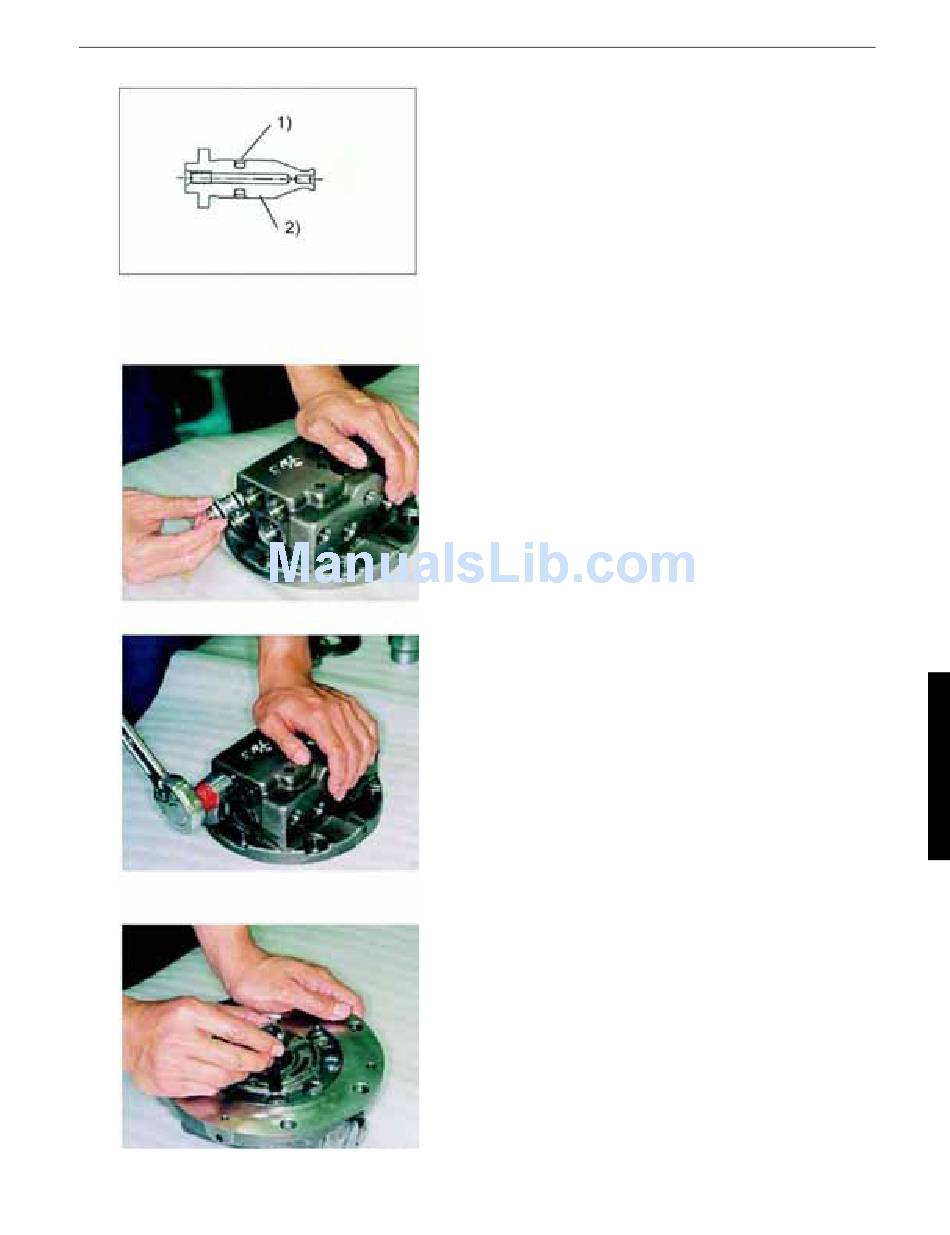

3) Mount the piston-seal [293] on the valve
[287].
Note : The piston-seal [293] is consist of O-
ring and tefron-ring.
Apply grease to the O-ring and tefron-
ring.
First mount the O-ring and after mount
tefron-ring.
1)Piston seal
2)Valve
4) Insert the sleeve [288], valve [287], spring
[290] in the rear flange [201].
5) Temporarily tighten the plug [289].

(14) Assembly of the rear flange mounted parts

1) Apply hydraulic fluid to the outer ring of the
ball bearing [150], and fit the outer ring of
the ball bearing [150] in the rear flange
[201].
