d. Holding valve installation
(4)
(1)
(2)
(5)
(3)
(8)
(6)
2. In order to get the boom down ;
(6)
(7)
IV-M-113

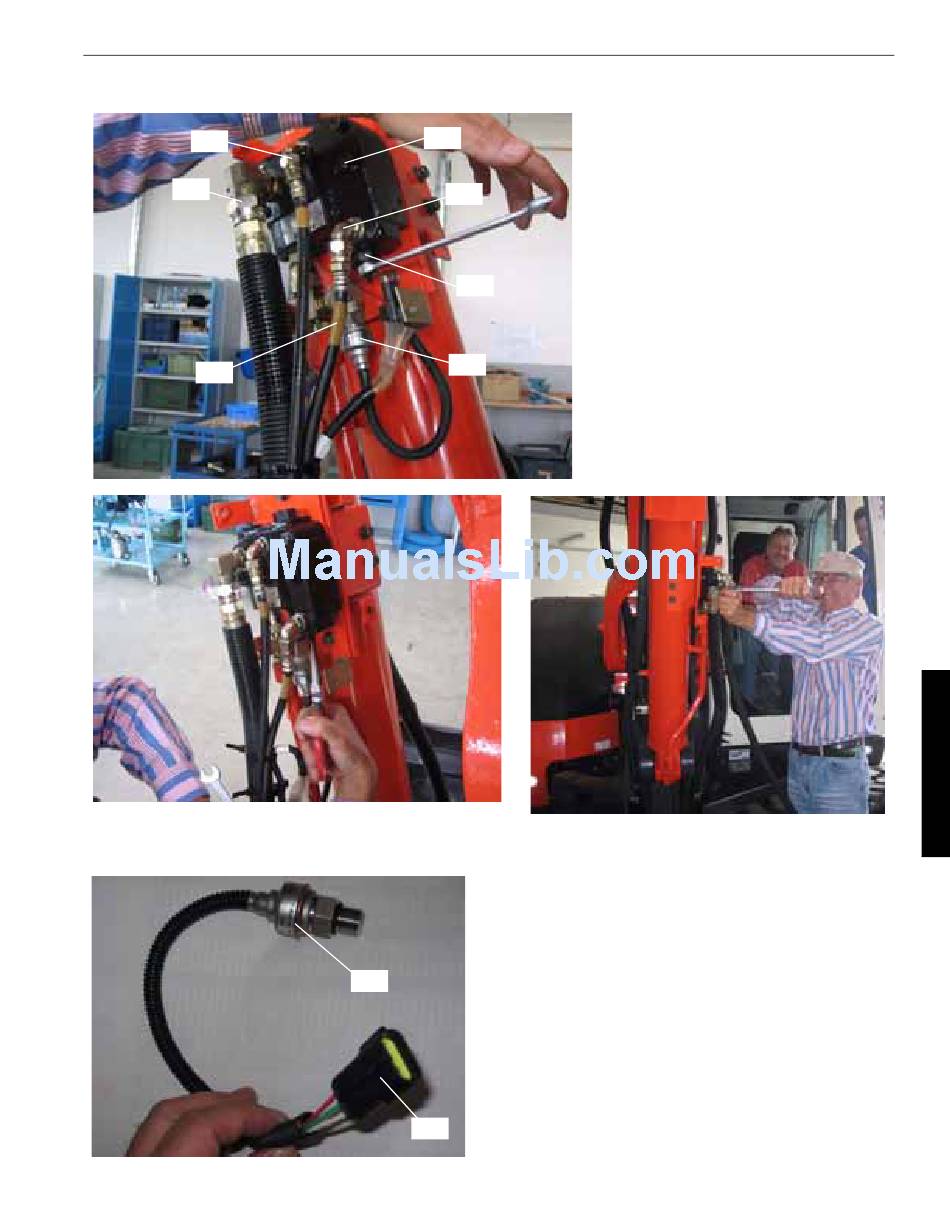

1. Main parts
(1) Main control valve to the holding
valve
(2) Holding valve to boom cylinder
bottom side
(3) Pilot secondary line
(4) Drain line
(5) Overload relief valve
(6) Load pressure switch
(8) Manual device for boom down
Disconnect the main hose to drain out the oil
(6) Load pressure switch
(7) Coupler
