WSM KX080-3 Service
B.Wire harness installation
a. Precautions
(1) No contact with the peripheral parts along the route
S
Unprotected members not to be in contact
(2) Checking the routes
S
1. Fuel hose not to be clamped together
2. Couplers, terminals, etc. to be connected tight enough to withstand usual
pulling force
3. Clamps to be surely folded
(3) Clamping the harness at the specified points
S
1. White-colored tapings to be clamped
2. Clamps to be surely folded
3. Harness-fixed clamps
* Anchor-shaped clamps to be inserted deep to the stoppers
* Threaded clamps to be inserted deep enough
1) The harness tapings indicate the clamping positions. Clamp at these specified points.
2) Clamp the harness tight enough not to come off nor get loose.
3) Insert the handgrip-equipped harness deep into their mating holes.
* Do not allow the harness to come out of the corrugated slit.
* Catch the cord clamp at the corrugated winding.

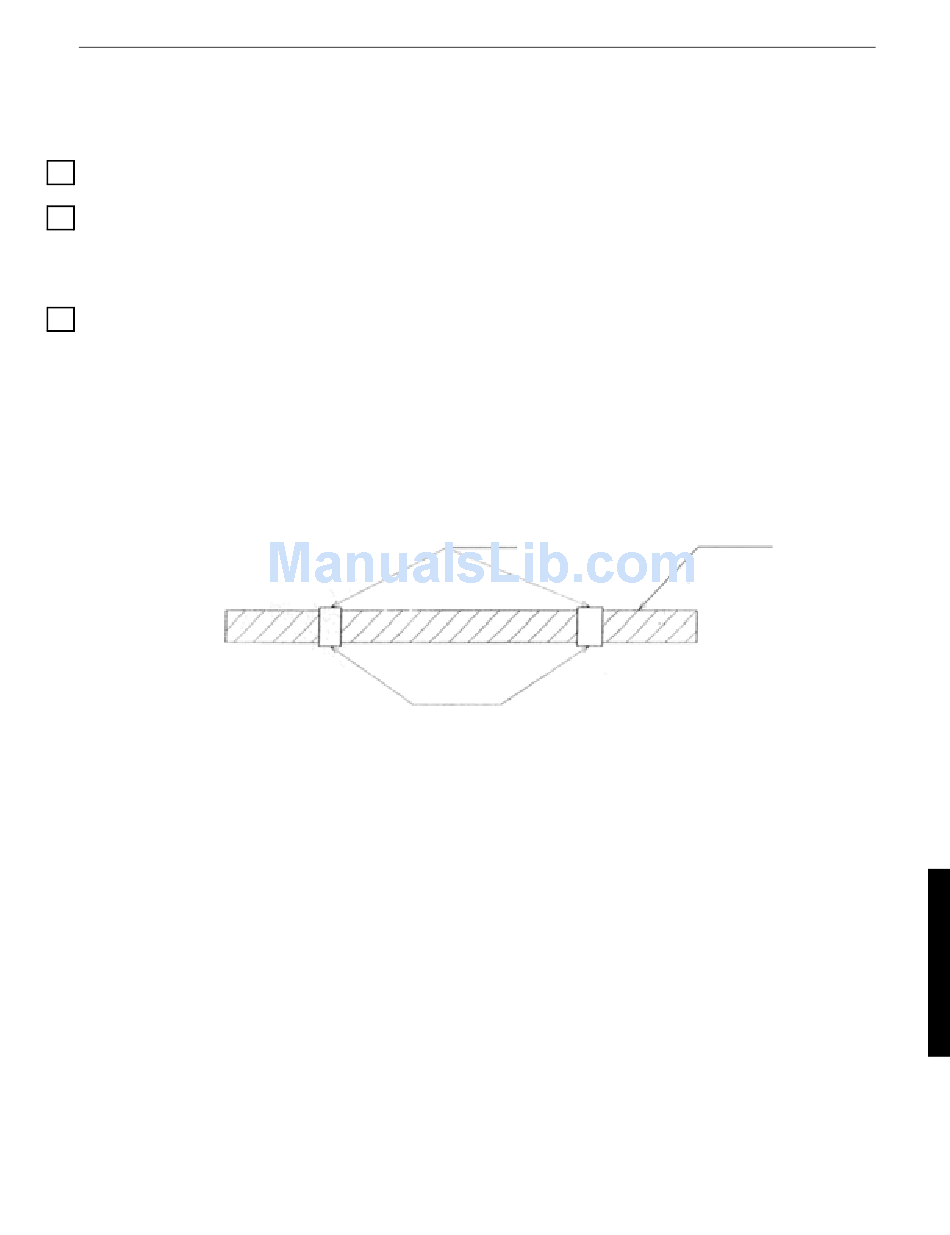

Taping
Clamp
V-S-7
Electrical system
Harness
