(22) Removal of spindle mounted parts

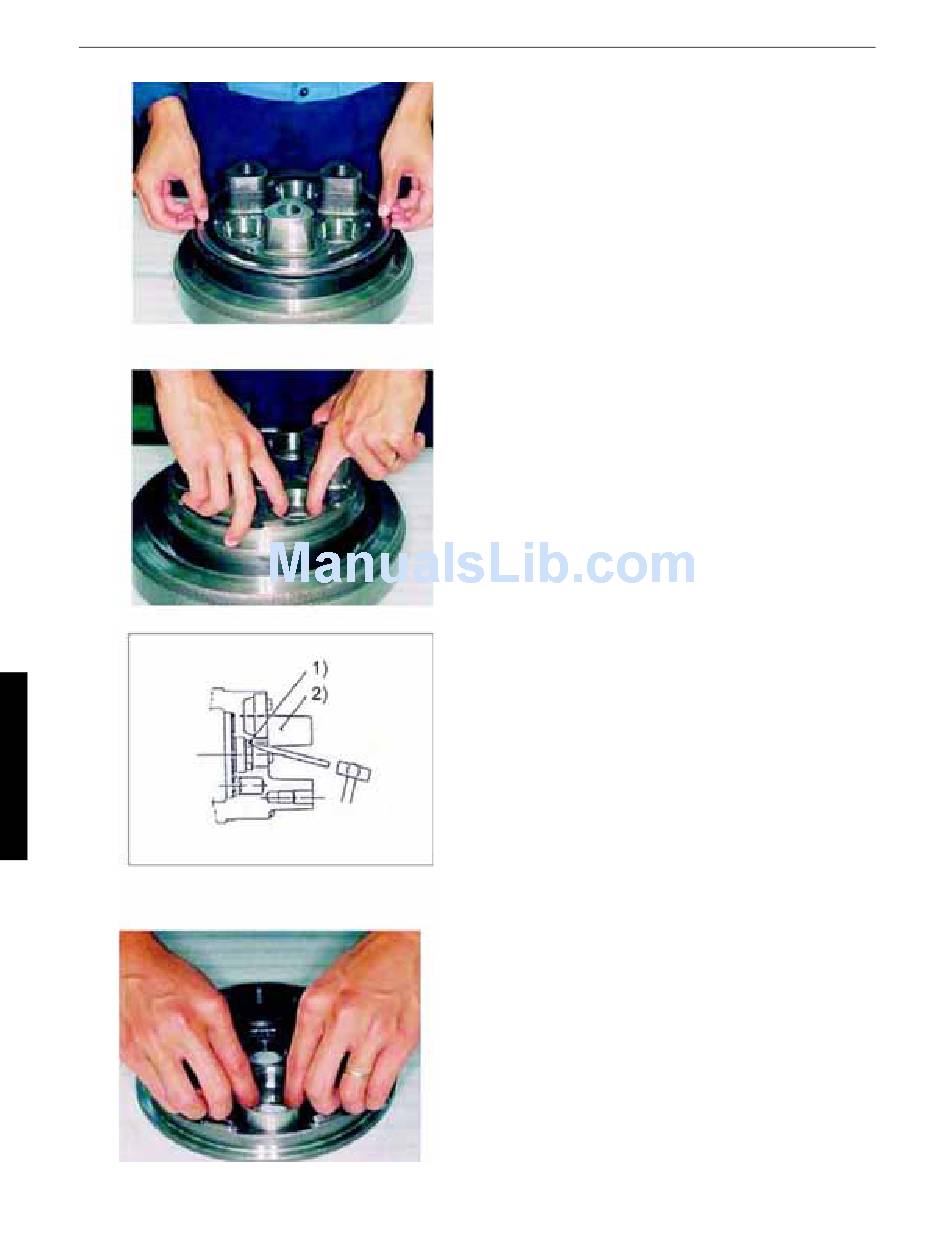

1) Takethefloating seal [31] out of the spindle
[2].
2) Remove the outer rings ( 3 rings) of the
tapered roller bearing [22] from the spindle
[2].
Note : The mounting surfaces of the outer ring
of the tapered roller bearing [22] and spindle
[2] may adhere due to oil film of the lubricating
oil. Outer ring removal may therefore be
difficult. If so, if you provide a light impact to
the center of the mounting hole section of the
spindle [2] with an aluminum bar, the film will
be broken thus facilitating removal.
3)Removal the oil seal [132]from the spindle
[2].
Note : Absolutely do not reuse the oil seal
[132] which has been removed.
1) Oil seal
2) Spindle

(23) Disassembly of hold flange mounted parts

1)Take the outer ring of the tapered roller
bearing [22] out of the hold flange [3].
