Hunt Group - HP FlexNetwork MSR Series Configuration Manual

<RouterA> system-view
[RouterA] subscriber-line 1/0
[RouterA-subscriber-line1/0] call-hold enable
[RouterA-subscriber-line1/0] call-transfer enable
2. Configure voice entities on Router B.
<RouterB> system-view
[RouterB] voice-setup
[RouterB-voice] dial-program
[RouterB-voice-dial] entity 2000 pots
[RouterB-voice-dial-entity2000] line 1/0
[RouterB-voice-dial-entity2000] match-template 2000
3. Configure Router C.
<RouterC> system-view
[RouterC] voice-setup
[RouterC-voice] dial-program
[RouterC-voice-dial] entity 3000 pots
[RouterC-voice-dial-entity3000] line 1/0
[RouterC-voice-dial-entity3000] match-template 3000

Hunt group

Network requirements
As shown in
same number. When the voice subscriber line with the first highest priority is in use, the device
automatically connects an incoming call to the voice subscriber line with the second highest priority.
Telephone A1 (1000) and Telephone A2 (1000) are both connected to Router A, and Telephone A1
has a higher priority. Telephone B (2000) dials the number 1000. Because Telephone A1 has a
higher priority, Telephone B will be connected to Telephone A1. If Telephone C (3000) dials the
number 1000 after Telephone A1 and Telephone B are in a conversation, hunt group enables
Telephone C to have a conversation with Telephone A2.

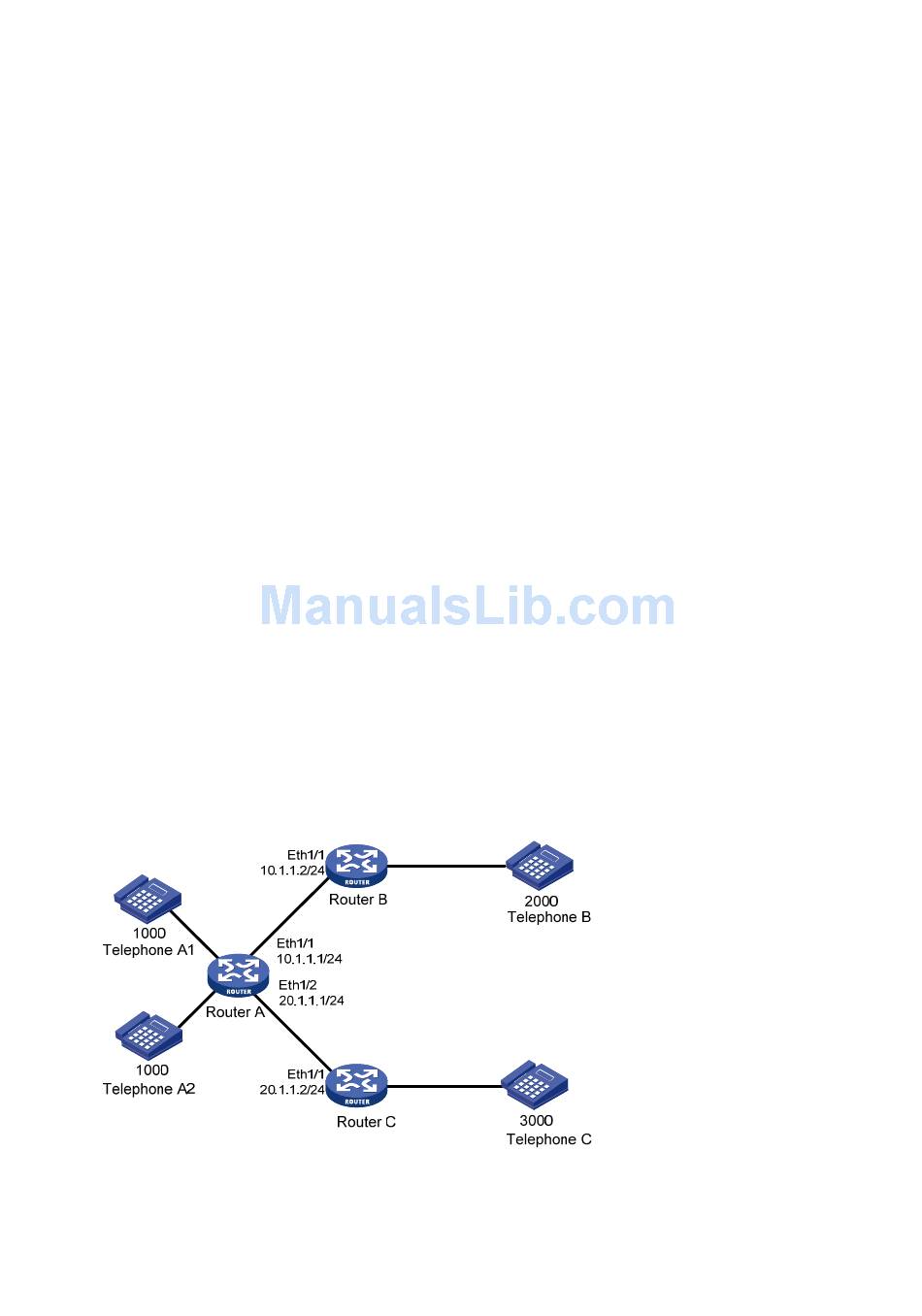

Figure 74 Network diagram
Configuration procedure
Before performing the following configuration, make sure that Router A, Router B and Router C are
routable to each other.
Figure 74, hunt group applies to the situation where multiple entities correspond to the
253
