HP FlexNetwork MSR Series Configuration Manual page 274

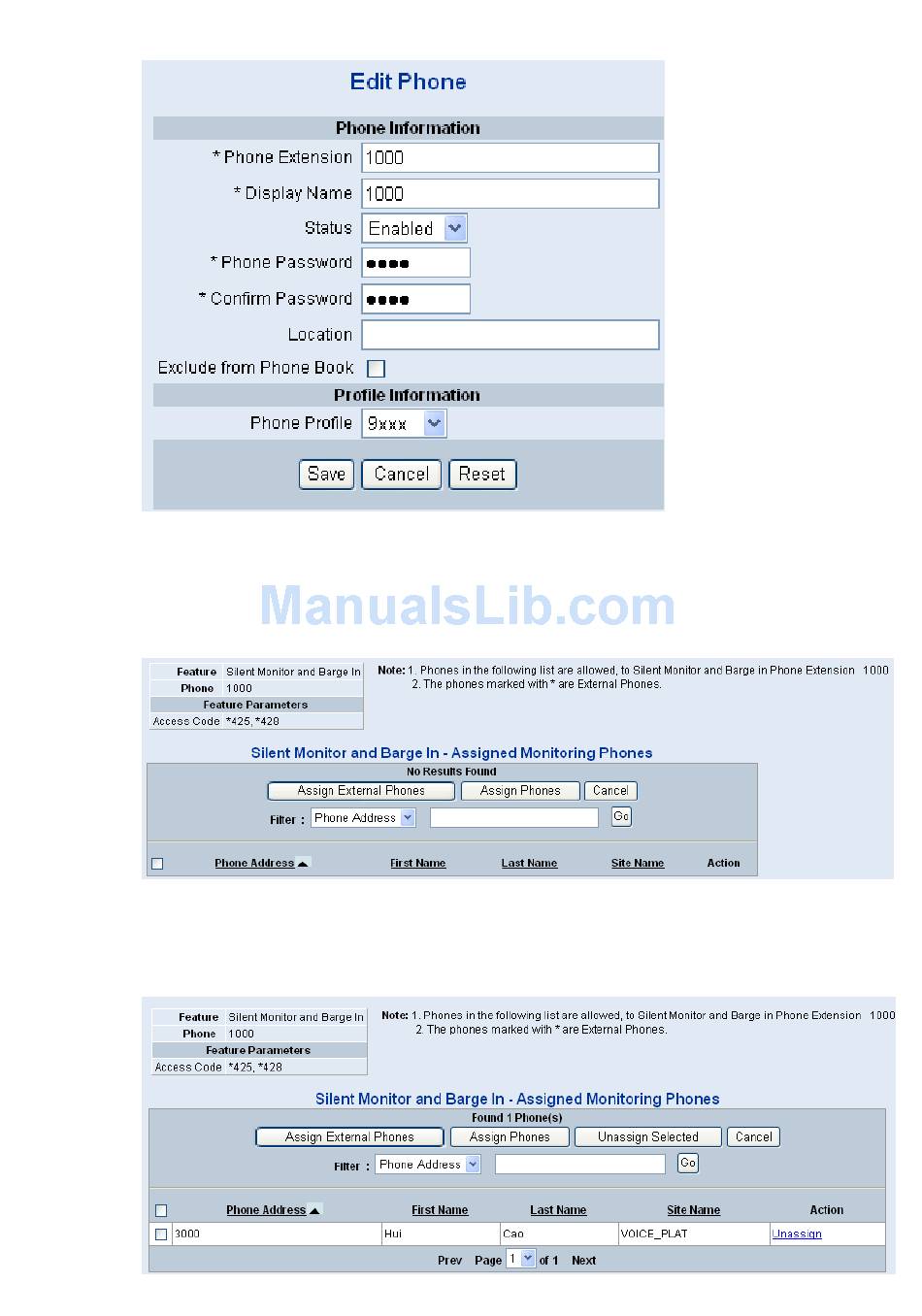

Figure 82 Telephone configuration page
# Configure the monitoring authority
Click Features of number 1000 to enter the feature configuration page, and then click Edit
Figure 83.
Feature of the Silent Monitor and Barge In feature to enter the page as shown in
Figure 83 Silent monitor and barge in feature configuration page (1)
Click Assign External Phones to specify that number 3000 has the authority to monitor
Figure 84
number 1000. After this configuration, the page as shown in appears.
Figure 84 Silent monitor and barge in feature configuration page (2)
261
