QuickSpecs
Overview
The HP 6600 Router Series is a family of high-performance WAN routers that is ideal for campus and data center WAN edge and
aggregation deployments.
These routers are built with a multicore architecture offering distributed or centralized processing to help balance performance and
cost. The 6600 Router Series delivers robust routing, security, full Layer 2 switching, and modular high-density WAN and LAN interface
options, all integrated in a single high-performance routing platform.
In addition, the HP 6600 Router Series features robust carrier-class reliability capabilities to help reduce disruption from network or
system failures.

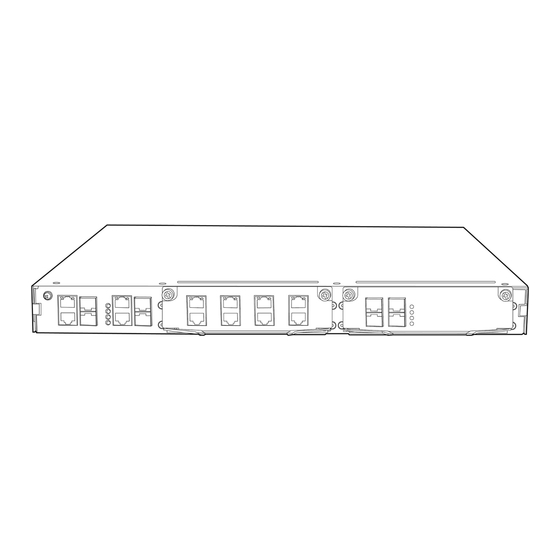

HP 6602 Router Chassis
HP 6604 Router Chassis
DA - 13811 Worldwide — Version 21 — February 18, 2014
HP 6600 Router Series
Page 1

Advertising

   Related Manuals for HP 6602

   Summary of Contents for HP 6602

  • Page 1: Product Overview

    Overview Product overview The HP 6600 Router Series is a family of high-performance WAN routers that is ideal for campus and data center WAN edge and aggregation deployments. These routers are built with a multicore architecture offering distributed or centralized processing to help balance performance and cost.

  • Page 2

    QuickSpecs HP 6600 Router Series Overview HP 6608 Router Chassis DA - 13811 Worldwide — Version 21 — February 18, 2014 Page 2...

  • Page 3

    QuickSpecs HP 6600 Router Series Overview HP 6616 Router Chassis DA - 13811 Worldwide — Version 21 — February 18, 2014 Page 3...

  • Page 4: Key Features, Features And Benefits

    QuickSpecs HP 6600 Router Series Overview Key features High-performance WAN routing Multi-core distributed or centralized processing Comprehensive routing, switching, and security Embedded hardware encryption Robust high availability and resiliency Features and benefits Quality of Service (QoS) Traffic policing supports Committed Access Rate (CAR) and line rate...

  • Page 5

    QuickSpecs HP 6600 Router Series Overview is used by IP hosts to establish and maintain multicast groups; supports v1, v2, and v3; utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4 multicast networks Connectivity High port density provides up to 16 interface module slots, and high-density Ethernet interface cards; a single card can provide up to 48 GbE...

  • Page 6

    QuickSpecs HP 6600 Router Series Overview User Datagram Protocol (UDP) helper redirects UDP broadcasts to specific IP subnets to prevent server spoofing Dynamic Host Configuration Protocol (DHCP) simplifies the management of large IP networks and supports client and server; DHCP Relay enables DHCP operation across...

  • Page 7

    QuickSpecs HP 6600 Router Series Overview Policy routing allows custom filters for increased performance and security; supports ACLs, IP prefix, AS paths, community lists, and aggregate policies Multicast VPN supports Multicast Domain (MD) multicast VPN, which can be distributed on separate service cards, providing high performance...

  • Page 8

    Electronic and telephone support (for Warranty 2.0) limited electronic and 24x7 telephone support is available from HP for the entire warranty period; to reach our support centers, refer to www.hp.com/networking/contact-support; for details on the duration of support provided with your product purchase, refer to www.hp.com/networking/warrantysummary...

  • Page 9

    Build To Order: BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution. Models HP 6602 Router Chassis JC176A 4 SFP ports (Min 0 // Max 4 SFP 1G Transceivers)

  • Page 10

    Localization required. (See Localization Menu) Note 5 Show following warning when Router is selected - "Warning - Min/Max of 1 JC180A HP 6600 Router Software License is required when ordering this Router Chassis" Configuration Information - Factory Integrated Models - CTO...

  • Page 11

    20U High Configuration Rules: Note 1 Show following warning when Router is selected - "Warning - Min/Max of 1 JC180A HP 6600 Router Software License is required when ordering this Router Chassis" Note 2 The following Transceivers install into this Router:...

  • Page 12

    HP X130 10G SFP+ LC LR Transceiver JD094A Note 3 Show following warning when Router is selected - "Warning - Min/Max of 1 JC180A HP 6600 Router Software License is required when ordering this Router Chassis" Note 4 If this product is ordered for delivery to Russia, it must be ordered with the A59 option (also allowed for other countries desiring Low Encryption), then #A59 is the required option for BTO, and must be added in addition to #0D1 for CTO.

  • Page 13

    PDU Cable ROW JD217A#B2C C15 PDU Jumper Cord (ROW) High Volt Switch/Router to Wall Power Cord JD217A#B2E NEMA L6-20P Cord (NA/MEX/JP/TW) HP 6616 650W DC Router Power Supply JC493A See Configuration Note:1,3 HP 6616 650W AC Router Power Supply JC492A...

  • Page 14

    Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #: 8121-0823 HP 6602 Router Chassis - United Kingdom - English localization JC176A#ACC Power Cord: Quantity : 1, BS 1363/A, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store...

  • Page 15

    Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #: 8121-0823 HP 7500 650W AC Power Supply - United Kingdom - English localization JD217A#ACC Power Cord: Quantity : 1, BS 1363/A, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #: 8121-0824 DA - 13811 Worldwide —...

  • Page 16

    Power Cord: Quantity : 1, SABS 164, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #: 8121-0919 HP 7500 650W AC Power Supply - South Africa - English localization JD217A#ACQ Power Cord: Quantity : 1, SABS 164, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:...

  • Page 17

    Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #: 8121-0823 HP 6616 650W AC Router Power Supply - United Kingdom - English localization JC492A#ACC Power Cord: Quantity : 1, BS 1363/A, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store...

  • Page 18

    Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #: 8121-0823 HP 5800 300W AC Power Supply - United Kingdom - English localization JC087A#ACC Power Cord: Quantity : 1, BS 1363/A, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store...

  • Page 19

    Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #: 8121-0823 HP RPS 800 Redundant Power Supply - United Kingdom - English localization JD183A#ACC Power Cord: Quantity : 1, BS 1363/A, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store...

  • Page 20

    Note 1 No mixing of any type of MPU. Must all be the same sku. Note 2 If the RPE-X1 (JC165A or JG781A) is selected then the HP 6600RPE-X1 Carrier Card (JC497A) must be added to order as well. Note 4...

  • Page 21

    HP X125 1G SFP LC LH70 Transceiver JD063B HP X120 1G SFP LC LH100 Transceiver JD103A HP X120 1G SFP LC BX 10-U Transceiver JD098B HP X120 1G SFP LC BX 10-D Transceiver JD099B HP X115 100M SFP LC FX Transceiver...

  • Page 22

    JC567A No Transceivers See Configuration 2 - 1GB DDR2 SDRAM Included (JC071A) Note: 6,7 HP 6600 24-port GbE SFP Service Aggregation Platform Module JC568A min=0 \ max=24 SFP 100M/1G See Configuration 2 - 1GB DDR2 SDRAM Included (JC071A) Note: 3,6,7...

  • Page 23

    JD630A HP 6600 8-p OC-3/12c POS/GbE SFP HIM Mod JG673A Note 6 If this Module is selected, Then the JC566A - HP A6600 RSE-X1 Main Processing Unit is required. Note 7 This module is only supported in the following routers:...

  • Page 24

    System (std 0 // max 2 or 4) User Selection (min 0 // max 2 or 4) per Service Module (See Service router Modules Modules for Port information) HP 6600 1p OC-3 (E1/T1) CPOS HIM Rtr Mod JC161A min=0 \ max=1 SFP...

  • Page 25

    Note: 1,4,13 Configuration Rules Note 1 These Modules can install directly to the JC176A - HP A6602 Router Routers JC177B, JC178B, JC496A Requires JC166B, JC167B, JG357A or JG358A Flex Int Platform Module to install HIM or MIM modules. Routers JG353A, JG776A, and JG354A, JG777A Requires the JG357A or JG358A Flex Int Platform Module to install HIM or MIM modules.

  • Page 26

    The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if applicable HP X135 10G XFP LC ER Transceiver JD11A HP X130 10G XFP LC LR Single Mode 10km 1310nm Transceiver JD108B HP X130 10G XFP LC SR Transceiver JD117B...

  • Page 27

    HP X260 RS530 3m DCE Serial Port Cable JF828A Note 10 The following Cable install into this Module: HP X260 8E1 BNC 75 ohm 3m Router Cable JD512A Note 11 The following E3/T3 Cable and Connector install into this Module:...

  • Page 28

    HP X260 RS530 3m DTE Serial Port Cable JF827A HP X260 RS530 3m DCE Serial Port Cable JF828A HP X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable JD511A HP X260 8E1 BNC 75 ohm 3m Router Cable JD512A HP X260 T3/E3 Router Cable...

  • Page 29

    System (std 0 // max 1) User Selection (min 0 // max 1) per routers Options Card HP X260 E3-30 E3/T3 Router Cable JC497A NOTE: RPE-X1 (JC165A, JG781A) is supported with HP 6600RPE-X1 Carrier Card (JC497A) Dustproof User Selection (min 0 // max 1) per router Frames...

  • Page 30

    HP RPS 800 Redundant Power Supply JD183A NOTE: JD637 - HP X290 MSR30 1m RPS Cable is required if power supply is selected. NOTE: Localization required. (See Localization Menu for list.) Remarks: Installation Guide recommends a tray be installed in the rack to support the weight.

  • Page 31

    JC071A NOTE: System (std 1 // max 2) User Selection (min 0 // max 1) Only supported on: JC165A - HP 6600 RPE-X1 Main Processing Unit JG781A - HP 6600 RPE-X1 Router TAA MPU Compact Flash JG353A, JG776A, JG354A, JG777A only - System (std 1 // max 2) User Selection...

  • Page 32: Technical Specifications

    QuickSpecs HP 6600 Router Series Technical Specifications HP 6602 Router (JC176A) I/O ports and slots 2 HIM slots Physical characteristics Dimensions 17.40(w) x 18.11(d) x 1.73(h) in (44.2 x 46 x 4.4 cm) (1U height Weight 14.77 lb (6.7 kg) Full configuration weight 16.53 lb (7.5 kg)

  • Page 33

    5 Yr 6 hr Call-to-Repair Onsite (HP829E) 1-year, 6 hour Call-To-Repair Onsite for hardware (HR528E) 1-year, 24x7 software phone support, software updates (HR527E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

  • Page 34

    QuickSpecs HP 6600 Router Series Technical Specifications Performance Throughput up to 36 million pps Routing table size 2000000 entries (IPv4), 500000 entries (IPv6) Forwarding table size 1000000 entries (IPv4), 300000 entries (IPv6) Backplane bandwidth 100 Gb/s Environment Operating temperature 32ºF to 113ºF (0ºC to 45ºC) Nonoperating/Storage 14°F to 131°F (-10°C to 55°C)

  • Page 35

    5 Yr 6 hr Call-to-Repair Onsite (UW057E) 1-year, 6 hour Call-To-Repair Onsite for hardware (HR533E) 1-year, 24x7 software phone support, software updates (HR532E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

  • Page 36

    QuickSpecs HP 6600 Router Series Technical Specifications Maximum heat 1910 BTU/hr (2015.05 kJ/hr) dissipation AC Voltage 100-240 VAC Maximum power rating 650 W Reliability MTBF (years) 26.80 MTTR (hours) Safety CSA 22.2 No. 60950; cUL (CSA 22.2 No. 60950); CSA 22.2 No. 60950 3rd edition; CSA 22.2 No. 950; CSA 950;...

  • Page 37

    5 Yr 6 hr Call-to-Repair Onsite (UW057E) 1-year, 6 hour Call-To-Repair Onsite for hardware (HR533E) 1-year, 24x7 software phone support, software updates (HR532E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

  • Page 38

    5 Yr 6 hr Call-to-Repair Onsite (UW057E) 1-year, 6 hour Call-To-Repair Onsite for hardware (HR533E) 1-year, 24x7 software phone support, software updates (HR532E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

  • Page 39

    QuickSpecs HP 6600 Router Series Technical Specifications RFC 1773 Experience with the BGP-4 Protocol Architecture RFC 1774 BGP-4 Protocol Analysis RFC 1981 IPv6 Path MTU Discovery RFC 1997 BGP Communities Attribute RFC 2080 RIPng for IPv6 RFC 1998 PPP Gandalf FZA Compression Protocol...

  • Page 40

    QuickSpecs HP 6600 Router Series Technical Specifications RFC 3956 Embedding the Rendezvous Point (RP) RFC 2452 MIB for TCP6 Address in an IPv6 Multicast Address RFC 2454 MIB for UDP6 RFC 4001 Textual Conventions for Internet Network RFC 2573 (SNMPv3 Applications)

  • Page 41

    QuickSpecs HP 6600 Router Series Technical Specifications RFC 2021 RMONv2 MIB RFC 792 ICMP RFC 2096 IP Forwarding Table MIB RFC 793 TCP RFC 2233 Interface MIB RFC 826 ARP RFC 2233 Interfaces MIB RFC 854 TELNET RFC 2273 SNMP-NOTIFICATION-MIB...

  • Page 42

    QuickSpecs HP 6600 Router Series Technical Specifications RFC 1757 RMON 4 groups: Stats, History, Alarms and RFC 1350 TFTP Protocol (revision 2) Events RFC 1377 The PPP OSI Network Layer Control RFC 1901 SNMPv2 Introduction Protocol (OSINLCP) RFC 1902 SNMPv2 Structure RFC 1381 SNMP MIB Extension for X.25 LAPB...

  • Page 43

    QuickSpecs HP 6600 Router Series Technical Specifications SNMPv1/v2c (read only) RFC 1981 Path MTU Discovery for IP version 6 SNMPv1/v2c/v3 RFC 1990 The PPP Multilink Protocol (MP) RFC 1994 PPP Challenge Handshake Authentication OSPF Protocol (CHAP) RFC 2003 IP Encapsulation within IP...

  • Page 44

    QuickSpecs HP 6600 Router Series Technical Specifications RFC 2474 DS Field in the IPv4 and IPv6 Headers without Explicit Tunnels RFC 2474 DSCP DiffServ RFC 2544 Benchmarking Methodology for Network RFC 2474, with 4 queues per port Interconnect Devices RFC 2475 DiffServ Architecture...

  • Page 45

    QuickSpecs HP 6600 Router Series Technical Specifications RADIUS Level IS-IS RFC 3579 RADIUS Support For Extensible RFC 2973 IS-IS Mesh Groups Authentication Protocol (EAP) RFC 2993 Architectural Implications of NAT RFC 3580 IEEE 802.1X RADIUS RFC 3022 Traditional IP Network Address Translator...

  • Page 46

    QuickSpecs HP 6600 Router Series Technical Specifications Support of Differentiated Services RFC 3562 Key Management Considerations for the RFC 3429 Assignment of the 'OAM Alert Label' for TCP MD5 Signature Option Multiprotocol Label Switching RFC 3564 Requirements for Support of...

  • Page 47

    QuickSpecs HP 6600 Router Series Technical Specifications Networks RFC 2283 Multiprotocol Extensions for BGP-4 RFC 4665 Service Requirements for Layer 2 Provider RFC 2362 PIM Sparse Mode Provisioned Virtual Private Networks RFC 2362 PIM Sparse Mode RFC 4717 Encapsulation Methods for Transport of...

  • Page 48

    JF827A HP X260 RS530 3m DCE Serial Port Cable JF828A HP X260 8E1 BNC 75 ohm 3m Router Cable JD512A HP X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable JD511A Router Modules HP 6600 RSE-X1 Main Processing Unit JC566A...

  • Page 49

    HP 6600 2-port OC-3/STM-1 (E3/T3) CPOS SFP HIM Module JC169A HP 6600 1-port OC-3/STM-1 (E3/T3) CPOS SFP HIM Module JC170A HP 6600 4-port OC-3c/STM-1c or 2-port OC-12c/STM-4c POS SFP HIM Module JC172A HP 6600 2-port OC-3c/STM-1c or 1-port OC-12c/STM-4c POS SFP HIM Module JC173A...

  • Page 50

    HP 6600 RPE-X1 Main Processing Unit JC165A HP 6600 RSE-X1 Main Processing Unit JC566A HP 6600 24-port GbE SFP Service Aggregation Platform Module JC568A HP 6600 48-port Gig-T Service Aggregation Platform Module JC567A HP 6600 FIP-10 Flexible Interface Platform Router Module...

  • Page 51

    HP 6600 RPE-X1 Main Processing Unit JC165A HP 6600 RSE-X1 Main Processing Unit JC566A HP 6600 24-port GbE SFP Service Aggregation Platform Module JC568A HP 6600 48-port Gig-T Service Aggregation Platform Module JC567A HP 6600 FIP-10 Flexible Interface Platform Router Module...

  • Page 52

    For details about services and response times in your area, please contact your local HP sales office. HP X120 1G SFP LC LH40 Ports 1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics)

  • Page 53

    For details about services and response times in your area, please contact your local HP sales office. HP X120 1G SFP LC BX 10- Ports 1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-D); Duplex:...

  • Page 54

    Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. HP X120 1G SFP LC SX Ports 1 LC 1000BASE-SX port...

  • Page 55

    For details about services and response times in your area, please contact your local HP sales office. HP X125 1G SFP LC LH70 Ports 1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics)

  • Page 56

    Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. HP 7500 650W DC Power Physical characteristics Dimensions 13.78(d) x 5.51(w) x 1.57(h) in.

  • Page 57

    © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
