[RouterB-voice-dial-entity2001] line 1/0
[RouterB-voice-dial-entity2001] send-number all
# Configure FXO interface Line 1/0.
[RouterB-voice-dial-entity2001] quit
[RouterB-voice-dial] quit
[RouterB-voice] quit
[RouterB] subscriber-line 1/0
[RouterB-subscriber-line1/0] private-line 0101001
Configuration example for one-to-one binding between FXS
and FXO
Network requirements
•
Router A and Router B are connected over an IP network and a PSTN. Telephone A attached to
Router A can make calls to Telephone B attached to Router B over the IP network or the PSTN.
•
Usually, Telephone A makes calls to Telephone B over the IP network. In the case that the IP
network is unavailable, Router A sends call from Telephone A through the bound FXO interface
to Telephone B over PSTN.

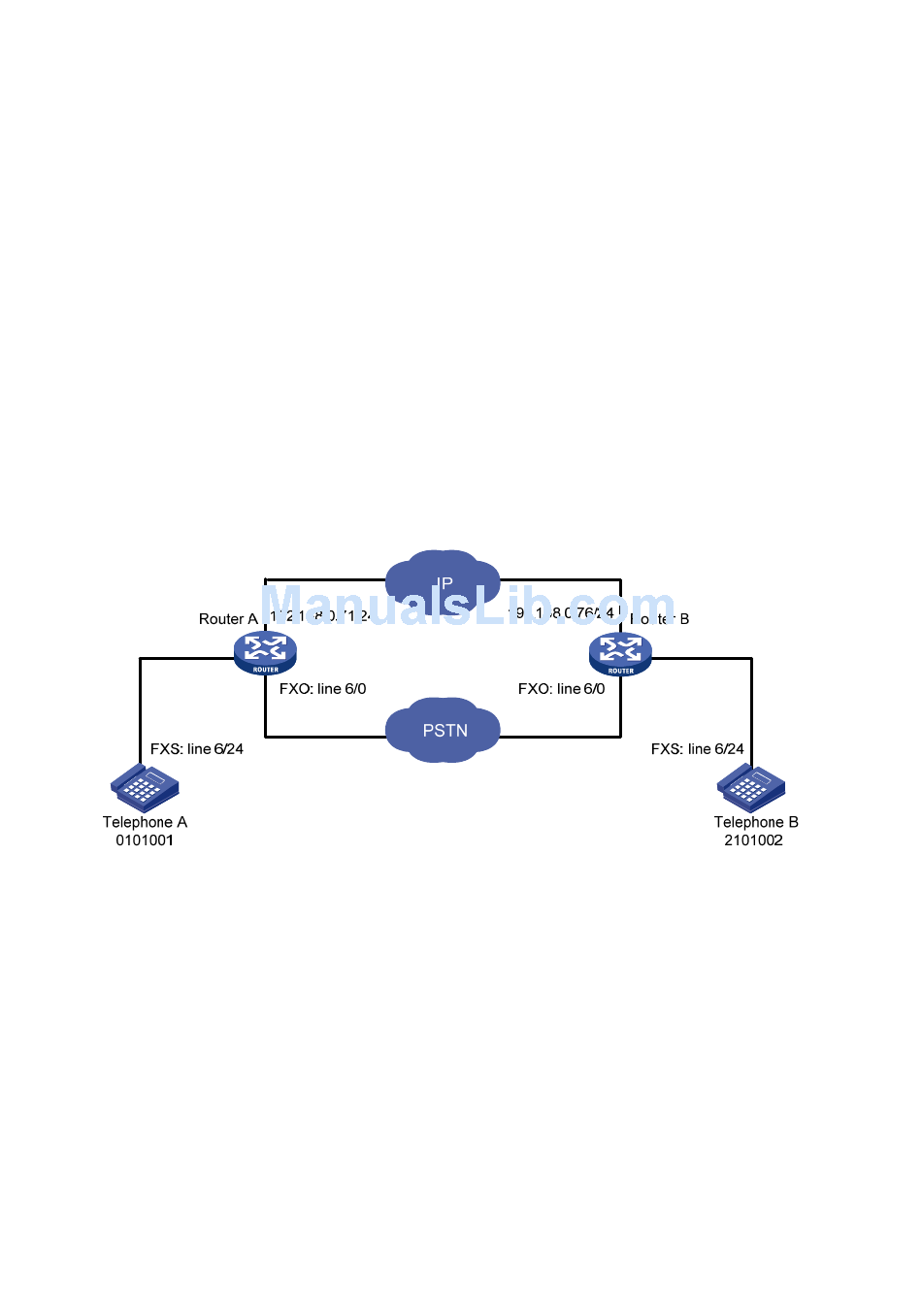

Figure 15 Network diagram

Configuration outline

•
Configure one-to-one binding between FXS and FXO voice subscriber lines.
•
When the IP network is available, the VoIP entity is preferably used to make calls over the IP
network.
•
When the IP network is unavailable, the POTS entity is used to make calls through the bound
FXO voice subscriber line over the PSTN.
Configuration procedure
Routing-related configurations are beyond the scope of this example. This example assumes that
Router A and Router B are reachable to each other.
1. Configure Router A:
<RouterA> system-view
[RouterA] voice-setup
[RouterA-voice] dial-program
# Configure a VoIP entity for IP calls and set the match template to 210....
56
