Displaying and maintaining the H.323 gateway

Task
Display the registration state
information of a gateway.
H.323 gateway configuration example
Network requirements
Telephones in City A and City B can communicate with each other through routers with the voice
function across an IP network where a gatekeeper is used for dynamic telephone number to IP
address translation.
On City A Router:
•
A loopback interface is used as an H.323 gateway interface and assigned the IP address of
1.1.1.1.
•
The gateway alias is citya-gw.
•
The name of the gatekeeper is gk-center and the address is 3.3.3.3.
•
The RAS port is 1719 and the area ID is 1#.
On City B router:
•
A loopback interface is used as an H.323 gateway interface and assigned the IP address of
2.2.2.2.
•
The gateway alias is cityb-gw.
•
Other configurations are the same as those at City A end.

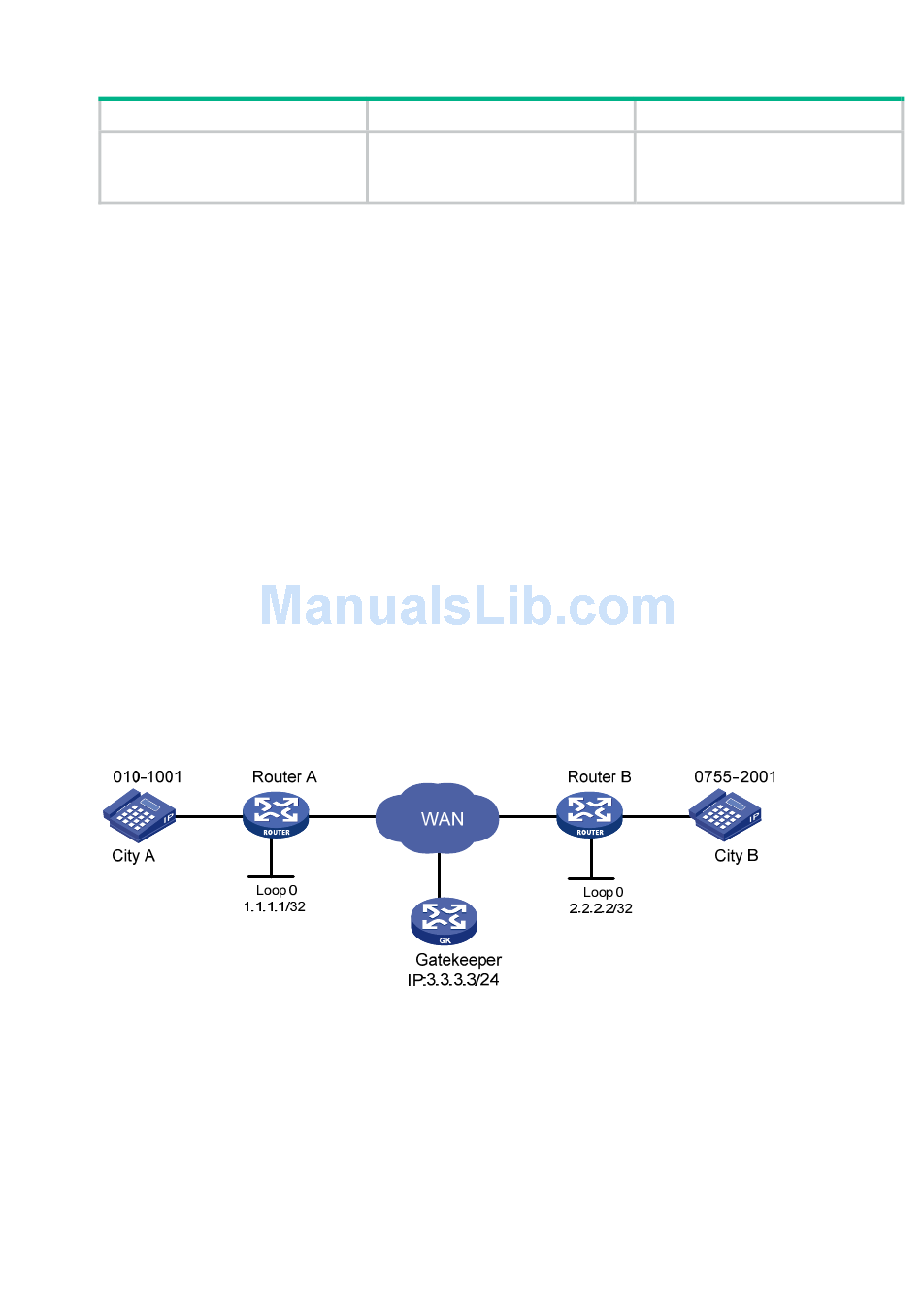

Figure 70 Network diagram
Configuration procedure
1. Configure Router A:
# Create a VoIP entity.
<RouterA> system-view
[RouterA] voice-setup
[RouterA-voice] dial-program
[RouterA-voice-dial] entity 0755 voip
[RouterA-voice-dial-entity755] match-template 0755....
[RouterA-voice-dial-entity755] address ras
Command
display voice gateway [ | { begin
| exclude | include }
regular-expression ]
224
Remarks
Available in any view.
