Fast Connection - HP FlexNetwork MSR Series Configuration Manual

2. Configure Router B:
# Configure the VoIP voice entity to Router A.
<RouterB> system-view
[RouterB] voice-setup
[RouterB-voice] dial-program
[RouterB-voice-dial] entity 010 voip
[RouterB-voice-dial-entity10] match-template 010....
[RouterB-voice-dial-entity10] address sip ip 1.1.1.1
[RouterB-voice-dial-entity10] quit
# Configure the POTS voice entity corresponding to the local interface Line 2/0.
[RouterB-voice-dial] entity 2001 pots
[RouterB-voice-dial-entity1001] match-template 07552001
[RouterB-voice-dial-entity1001] line 2/0
[RouterB-voice-dial-entity1001] quit
# Configure the POTS voice entity corresponding to the local interface Line 2/1.
[RouterB-voice-dial] entity 2002 pots
[RouterB-voice-dial-entity1002] match-template 07552002
[RouterB-voice-dial-entity1002] line 2/1

Fast connection

Network requirements
As shown in
The connection from Router A to Router B adopts fast connection and DTMF H.225 out-of-band
transmission. The connection from Router B to Router A adopts DTMF out-of-band transmission and
fast connection.

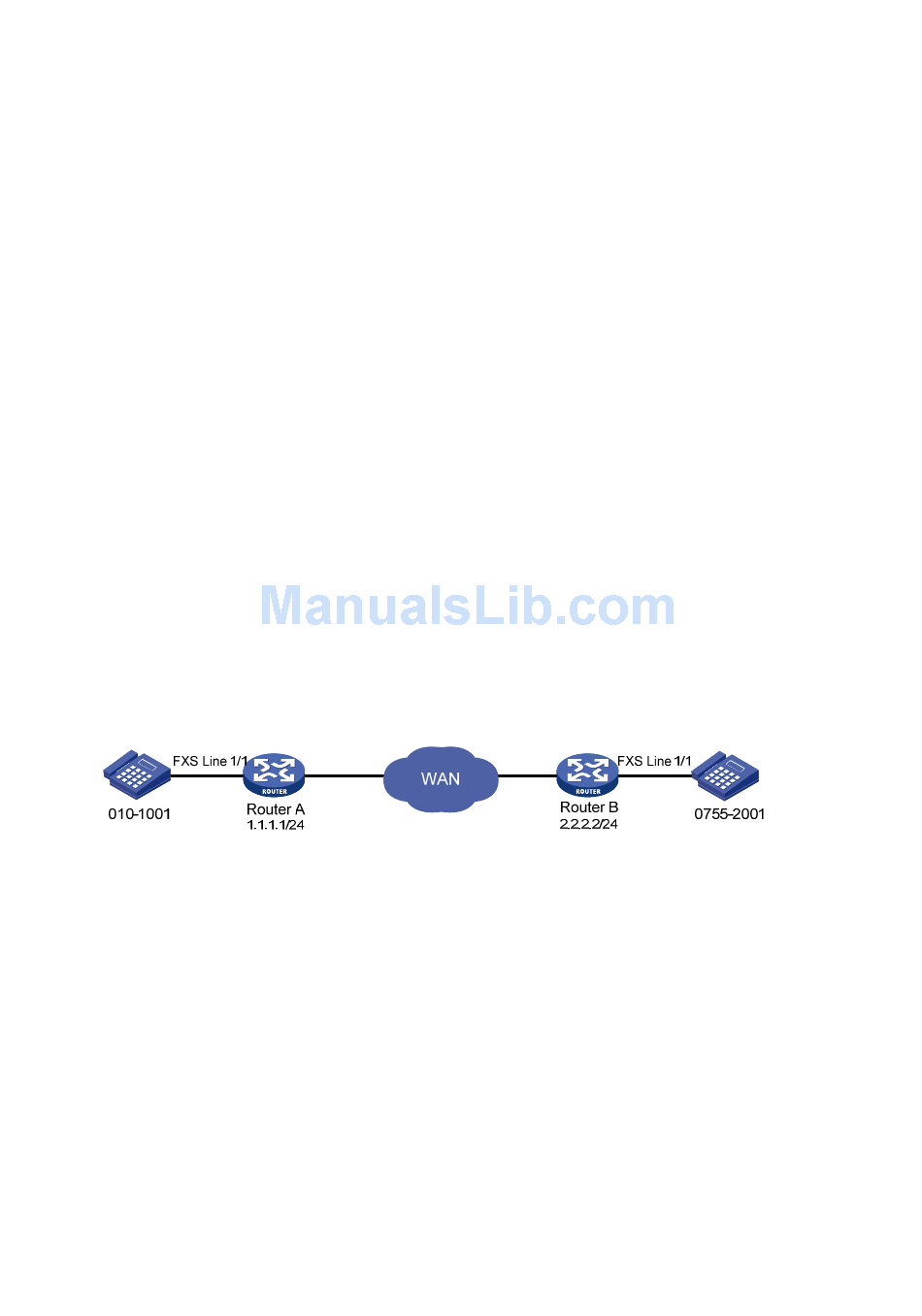

Figure 7 Network diagram
Configuration procedure
Routing-related configurations are beyond the scope of this example. This example assumes that
Router A and Router B are reachable to each other.
1. Configure Router A:
# Configure a VoIP voice entity.
<RouterA> system-view
[RouterA] voice-setup
[RouterA-voice] dial-program
[RouterA-voice-dial] entity 0755 voip
[RouterA-voice-dial-entity755] match-template 0755....
[RouterA-voice-dial-entity755] address ip 2.2.2.2
# Enable fast connection, tunnel function and DTMF H.225 out-of-band transmission for the
VoIP voice entity.
[RouterA-voice-dial-entity755] fast-connect
[RouterA-voice-dial-entity755] tunnel-on
[RouterA-voice-dial-entity755] outband h245
Figure 7, phone users of Router A and Router B communicate with each other over WAN.
