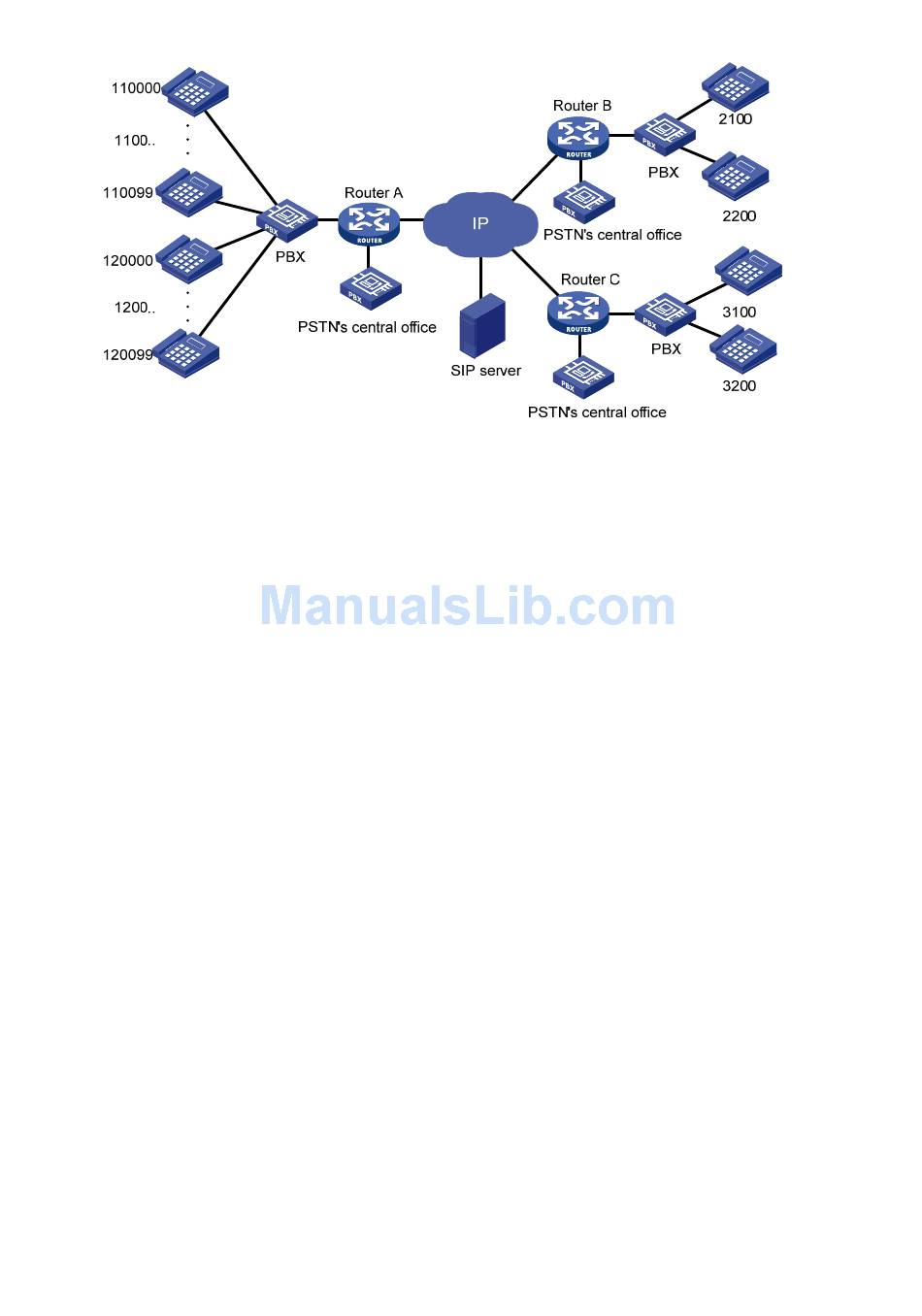

Figure 35 Network diagram
Configuration procedure
This example does not provide SIP server and digital subscriber line configurations. For more
information, see "Configuring SIP" and "Configuring voice subscriber lines."
1. Configure Router A:
# Configure two subscriber groups.
<RouterA> system-view
[RouterA] voice-setup
[RouterA-voice] dial-program
[RouterA-voice-dial] subscriber-group 1
[RouterA-voice-dial-group1] match-template 1100..
[RouterA-voice-dial-group1] quit
[RouterA-voice-dial] subscriber-group 2
[RouterA-voice-dial-group2] match-template 1200..
[RouterA-voice-dial-group2] quit
# Configure VoIP entities for place B and place C.
[RouterA-voice-dial] entity 2000 voip
[RouterA-voice-dial-entity2000] address sip proxy
[RouterA-voice-dial-entity2000] match-template 2...
[RouterA-voice-dial-entity2000] quit
[RouterA-voice-dial] entity 3000 voip
[RouterA-voice-dial-entity3000] address sip proxy
[RouterA-voice-dial-entity3000] match-template 3...
[RouterA-voice-dial-entity3000] quit
# Configure a POTS entity for place B.
[RouterA-voice-dial] entity 2100 pots
[RouterA-voice-dial-entity2100] line 1/0:15
[RouterA-voice-dial-entity2100] send-number all
[RouterA-voice-dial-entity2100] match-template 2...
[RouterA-voice-dial-entity2100] caller-group permit 1
[RouterA-voice-dial-entity2100] caller-group permit 2
[RouterA-voice-dial-entity2100] quit
