Remove the PSU Duct

1. Complete these prerequisites in this order.
"Remove the Top Cover" on page 77
■
"Rotate the Drive Cage to the Service Position" on page 82
■

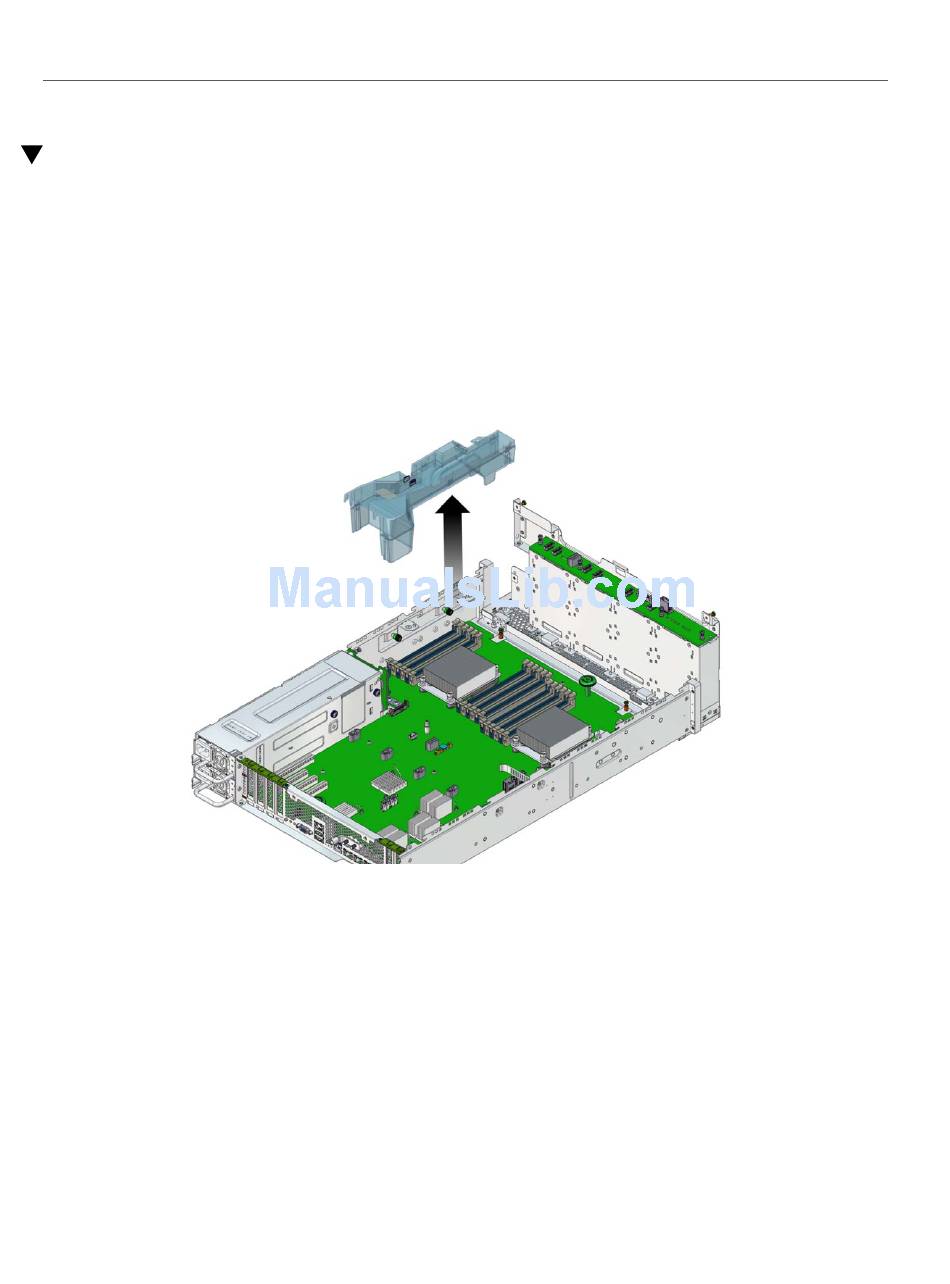

2. Lift the PSU duct up and out of the chassis.
Set the PSU duct aside.
3.
Consider your next step.
4.
Continue servicing the USB board.
■
See "Servicing the USB Board" on page 219
Service the DIMMs.
■
See "Servicing DIMMs" on page
Service the PDB.
■
See "Servicing the PDB" on page
Service the PDB signal cable.
■
181.
237.
Remove the PSU Duct
Preparing for Service 87
