the output tray lower cover) must be inserted along with two guide rails [B] inside the

output tray unit.

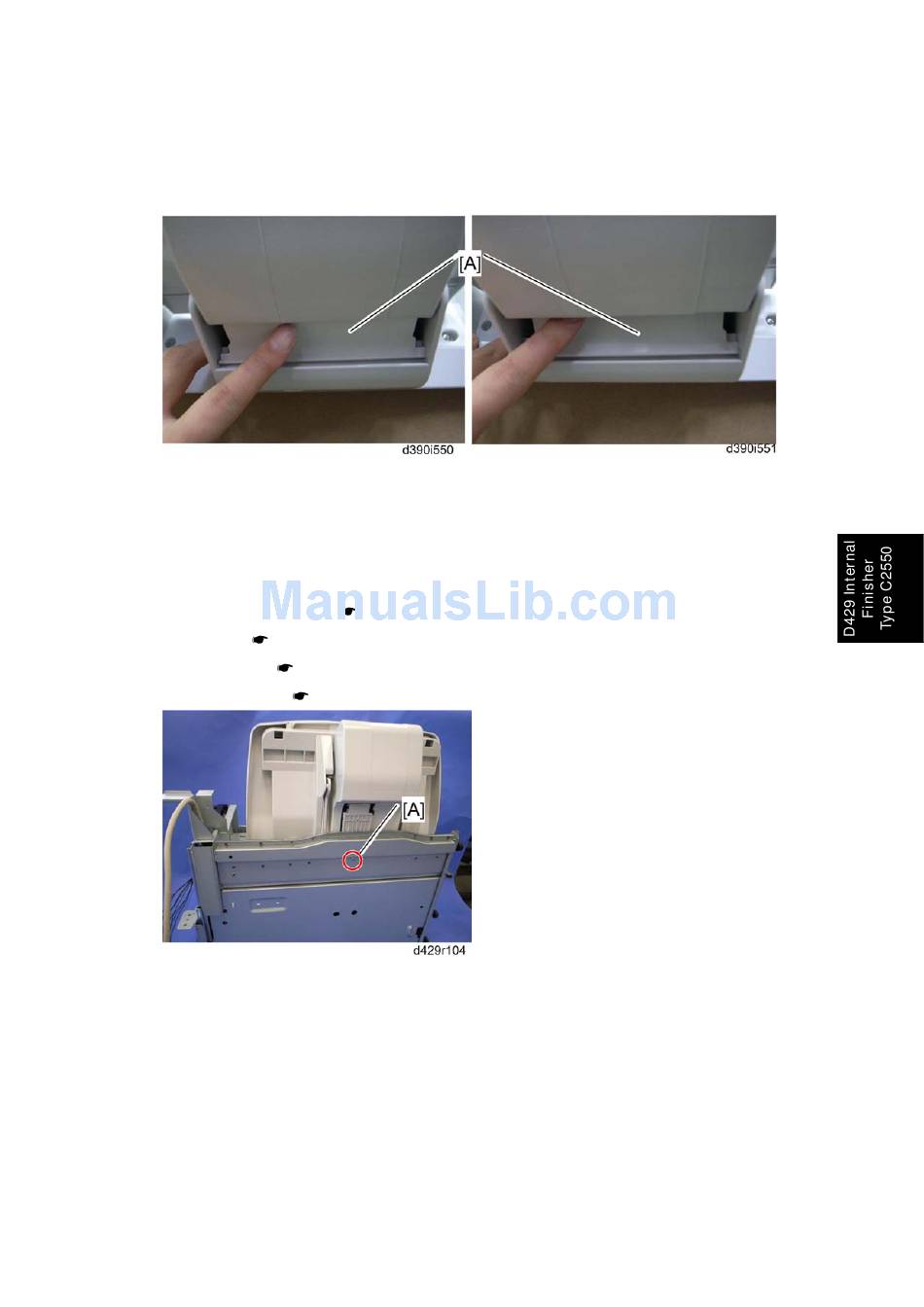

2. Push the slide plate [A] to check if the output tray lower cover is correctly installed. The
left side picture shows the correct result and right side picture shows the incorrect
result.
1.1.4 OUTPUT TRAY UNIT
1. Output tray lower cover ( Output Tray Lower Cover)
2. Rear cover ( Rear, Left Rear and Rear Inner Cover)
3. Left rear cover ( Rear, Left Rear and Rear Inner Cover)
4. Rear inner cover ( Rear, Left Rear and Rear Inner Cover)
5. Remove the screw [A].
