7. If equipped with an automatic transmission, remove the two PRNDL indicator attaching screws and
remove the indicator by sliding it straight down.
8. Disconnect the electrical wire harness plugs and remove the cluster.
To install:
9. Connect the electrical wire harness plugs and install the instrument cluster.
10. If equipped with an automatic transmission, install the two PRNDL indicator attaching screws and
remove the indicator by sliding it straight down.
11. Install the four instrument cluster retaining screws.
12. Connect the headlamp and dimmer switch harnesses to the cluster finish panel then install it.
13. Install the lower trim and knee bolster panels and the attaching screws.
14. Install the center finish panel.
15. Install the radio.
16. Connect the negative battery cable. Start the vehicle and check all gauges, lamps and signals for
proper operation.

Fuel, Oil Pressure, Voltage and Coolant Temperature Gauges

REMOVAL & INSTALLATION
Each of the gauges can be removed in the same manner, once the instrument cluster is removed.
1. Disconnect the negative battery cable.
2. Remove the instrument cluster assembly.
Fuel, Oil Pressure, Voltage and Coolant Temperature Gauges
HOW TO USE THIS BOOK

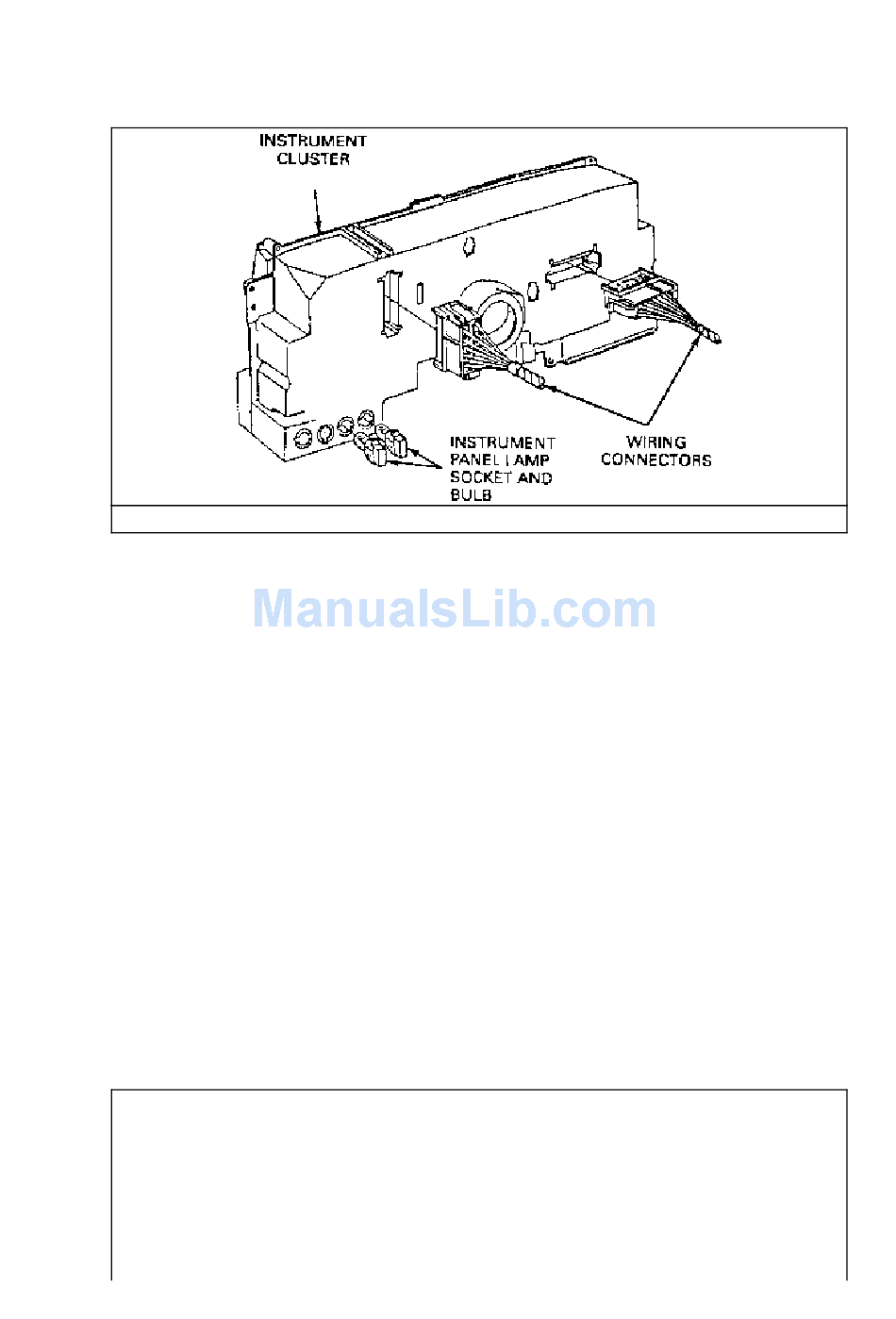

View of the electrical connections on the back of the cluster
