Ford Ranger Maintaince And Repair Manual page 730

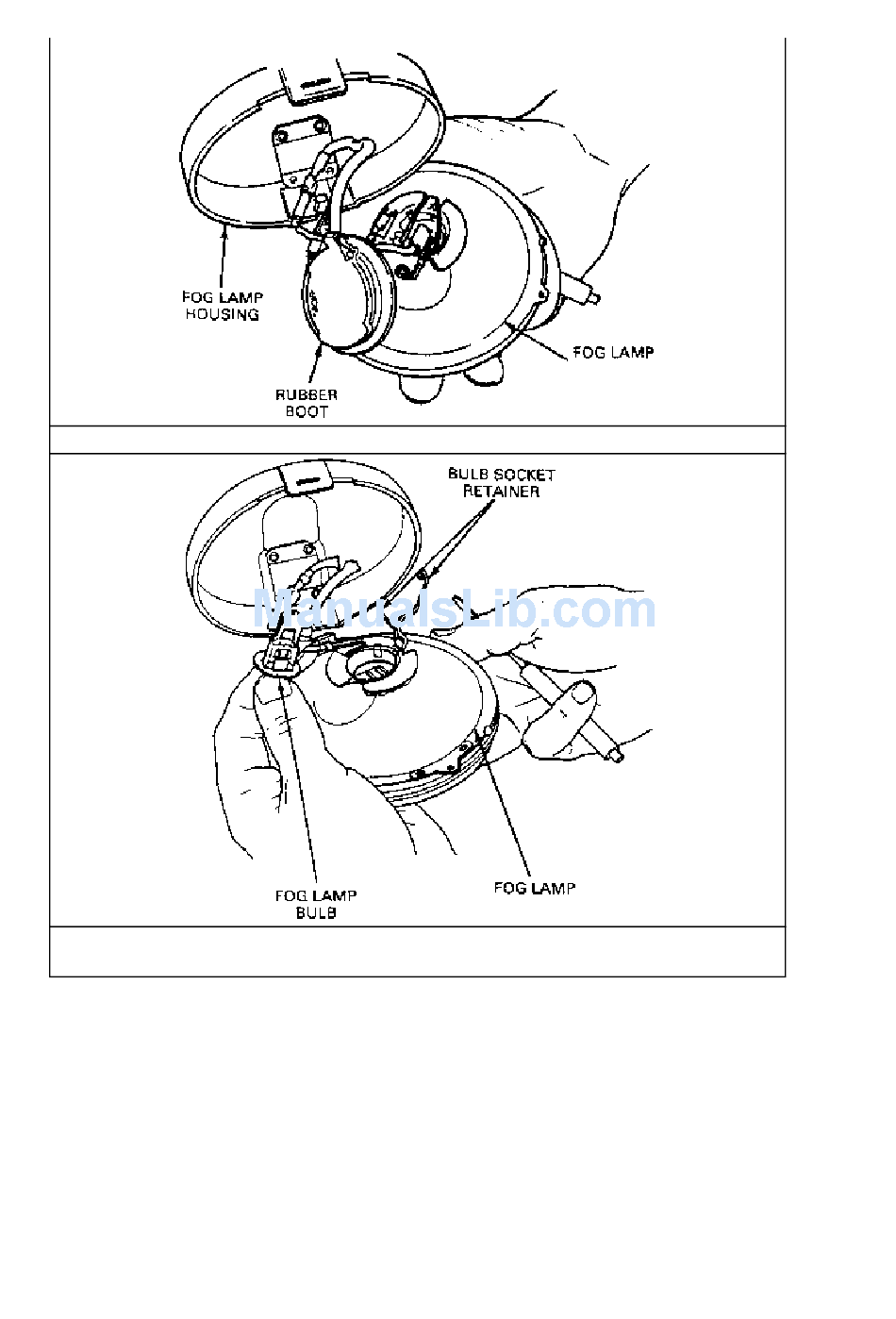

Pull the lens out of the housing, then slide the rubber boot off and out of the way
Release the bulb retainer, then remove the bulb from the lens and unplug it from the wire
1. Lift up on the locking tab which retains the lens to the lamp housing. Take care not to drop the lens.
2. Remove the lens from the lamp housing and turn it to gain access to the rear of the lens.
3. Disconnect the electrical harness plug from the pigtail connector.
4. Remove the rubber boot from the back of the lens assembly.
5. Release the bulb socket retainer from its locking tab.
6. Remove the bulb and socket from the lens and pull the bulb from the socket.
Never touch the bulb with your bare hands. The naturals oils from your skin will remain on the bulb, causing a
localized hot−spot and premature failure. Wipe the bulb with rubbing alcohol before install it into the lens
assembly.
To install:
