1. Disconnect the negative battery cable.
2. Disconnect the coupling at the transmission, using the clutch coupling removal tool T88T−70522−A
or equivalent. Slide the white plastic sleeve toward the slave cylinder while applying a slight tug on
the tube.
3. Remove the transmission assembly.
On the 2.9L (4WD) vehicles, the clutch housing must be removed with the transmission assembly.
4. Remove the slave cylinder−to−transmission retaining bolts.
5. Remove the slave cylinder from the transmission input shaft.
To install:
6. Fit the slave cylinder over the transmission input shaft with the bleed screws and coupling facing the
left side of the transmission.
7. Install the slave cylinder retaining bolts. Torque to 13−19 ft. lbs. (18−26Nm).
8. Install the transmission.
REMOVAL & INSTALLATION
HOW TO USE THIS BOOK

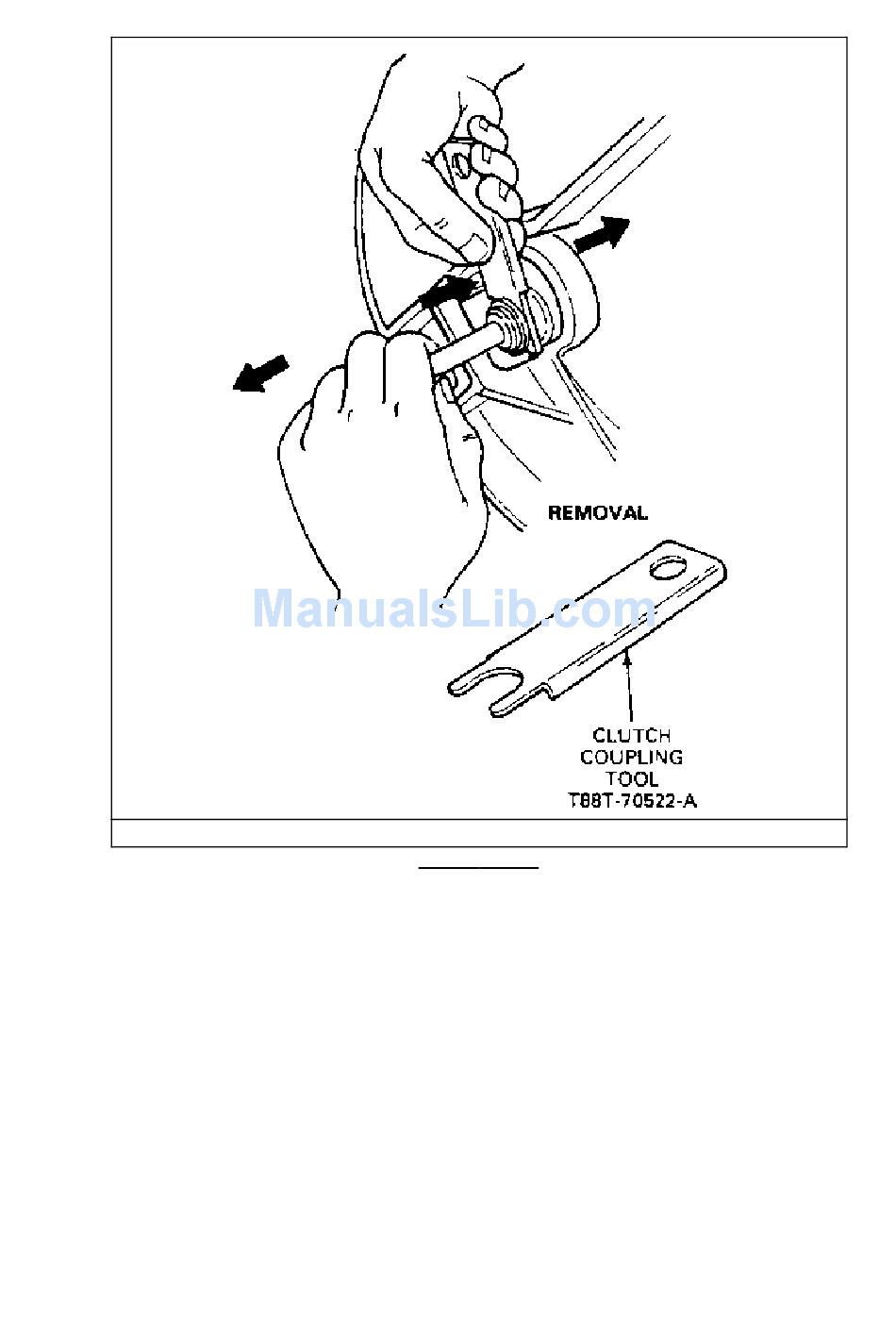

View of the clutch line coupling removal tool
