1. Raise the vehicle, as required to provide additional access and remove the nut attaching the shock
absorber to the lower mounting stud on the radius arm.
2. Slide the lower shock absorber end off of the stud.
3. Remove the nut, washer and insulator from the upper shock absorber mount at the frame bracket and
remove the shock absorber.
A second wrench may be needed to hold the shock absorber from turning while removing the upper
attaching nut.
898
HOW TO USE THIS BOOK

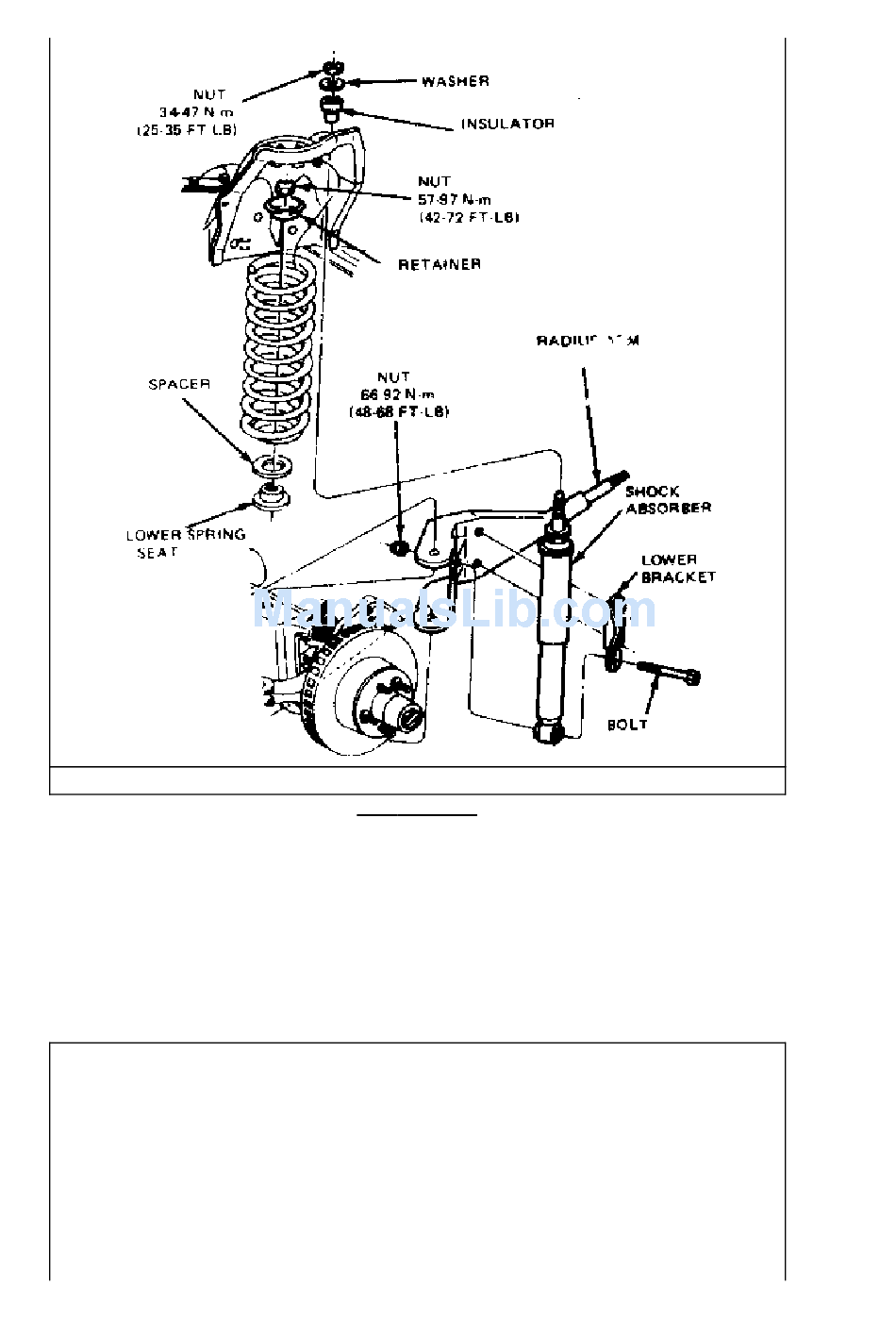

Shock absorber and related parts
Click to enlarge
REMOVAL & INSTALLATION
