Diode/Resistor Element (1991−96)−located three inches left of the cluster connector takeouts in the

instrument panel wiring harness.

Diode/Resistor Element (1997)−located in the power distribution box, under the hood.

Sensor test Connector−located under the hood slightly rearward the washer bottle.

System Self−Test

The RABS module performs system tests and self−tests during startup and normal operation. The valve,

sensor and fluid level circuits are monitored for proper operation. If a fault is found, the RABS will be

deactivated and the REAR ANTI LOCK light will be lit until the ignition is turned OFF. When the light is lit,

the diagnostic flashout code may be obtained. Under normal operation, the light will stay on for about 2

seconds while the ignition switch is in the ON position and will go out shortly after. A flash code may be

HOW TO USE THIS BOOK

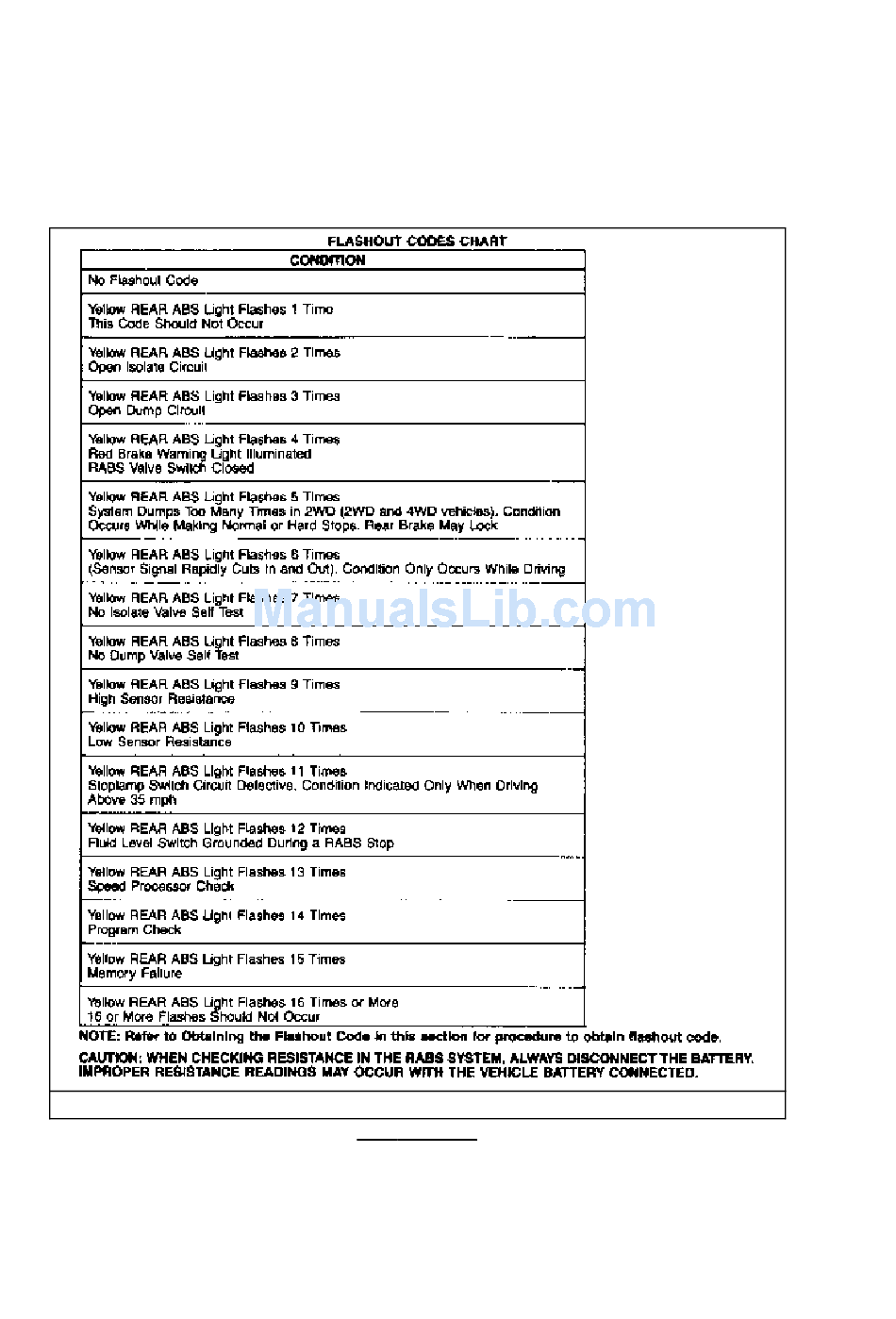

RABS trouble code index
