5. Position the alternator on the engine.
6. Install the alternator mounting bolts. On 3.8L and 5.0L engines, tighten the upper bolt to 16−21 ft. lbs.
(21−29 Nm) and the lower bolt to 30−40 ft. lbs. (40−55 Nm). On 4.6L engines, tighten both bolts to
15−22 ft. lbs. (20−30 Nm).
7. On 4.6L engines, install the alternator mounting bracket and bolts. Tighten the bolts to 71−106 inch
lbs. (8−12 Nm).
8. Install the accessory drive belt. Ensure that the drive belt is properly installed on the pulleys before
starting the engine.
9. Attach all engine wiring harness connectors to the alternator.
10. Connect the negative battery cable.

Voltage Regulator

REMOVAL & INSTALLATION
1991−95 models with non−integral type regulator

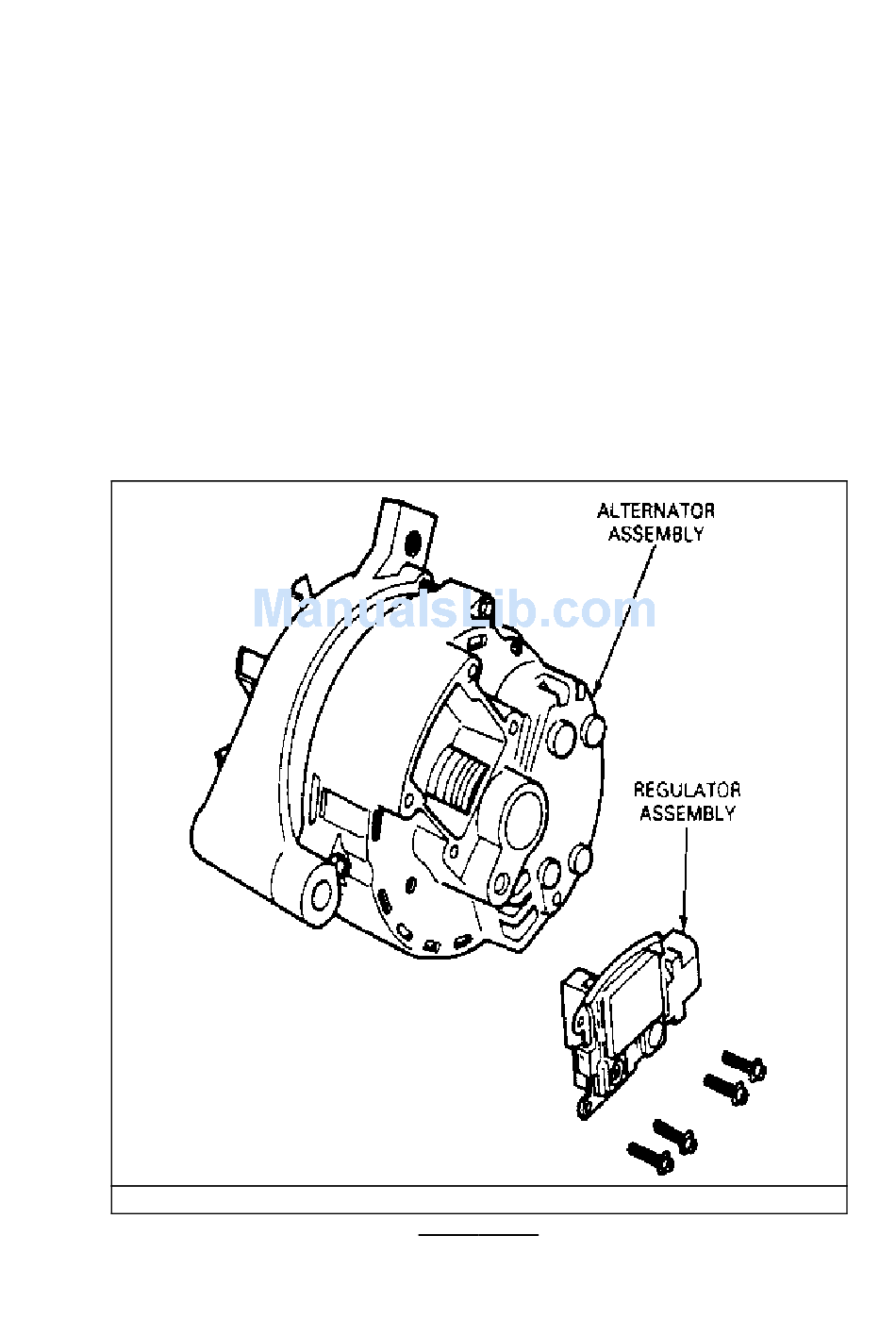

The regulator is attached to the alternator by 4 Torx® head screws
Voltage Regulator
