12. Install the camshaft sprocket bolt and sprocket retaining key. Make sure that the timing marks are still
aligned.
13. Install the tensioner with the clip in place to keep it retracted.
14. Install the crankshaft key. Make sure the timing marks are still aligned.
15. Make sure the tensioner side of the chain is held inward and the other side is straight and tight.
16. Install the camshaft sprocket bolt and tighten it to 50 ft. lbs.
17. Remove the tensioner clip.
18. Check camshaft end−play.
19. Install the front cover.
20. Install the radiator.
21. Fill the cooling system.
22. Fill the crankcase to the proper level. Connect the negative battery cable. Start engine check for leaks
and roadtest the vehicle for proper operation.
4.0L SOHC Engine (VIN E)
On the 4.0L SOHC engine, there are four chains which are used to time the camshafts and balance the engine.
There is a jackshaft mounted in the middle of the engine block. The two camshafts are connected to the
jackshaft by two chains. The jackshaft is connected to the crankshaft by a third chain. Also, a balance shaft
assembly is chain driven off of the crankshaft and timed to the rotation of the engine.
In order to remove either of the camshaft timing or balance shaft chains, the jack shaft chain and sprockets
must first be removed. Once the jackshaft chain is removed, the left−hand camshaft and the balance shaft
chain can be serviced. In order to remove the right−hand camshaft chain, the jackshaft must be removed.
Additionally, in order to service either camshaft chain assembly, the cylinder heads must be removed.
402
HOW TO USE THIS BOOK

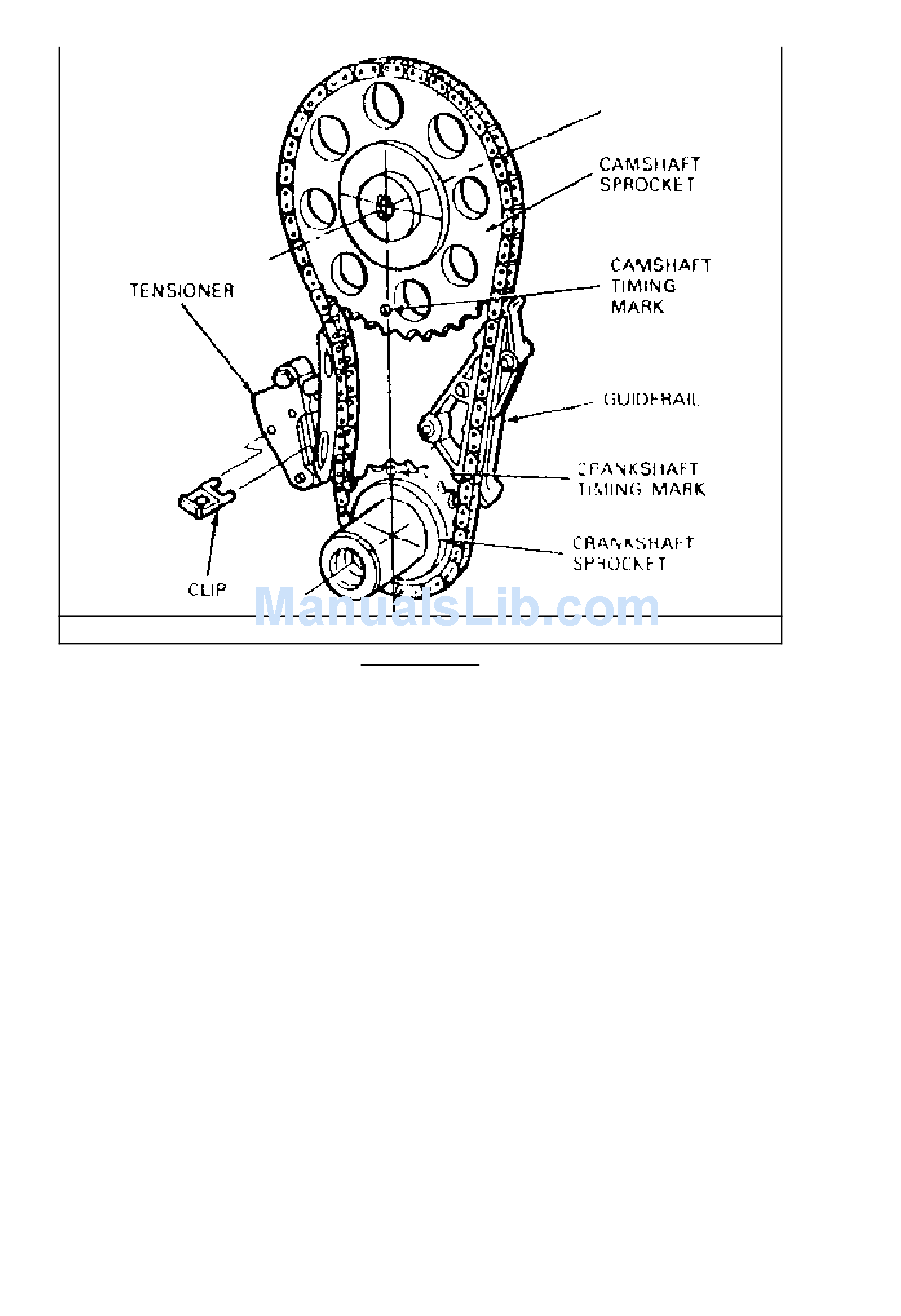

Timing chain alignment−4.0L engine
Click to enlarge
REMOVAL & INSTALLATION
