16. Tighten the pan bolts EVENLY to 9 ft. lbs. working from the center to the end position on the oil pan.
17. Install low−oil level sensor connector. Lower engine assembly to original position.
18. Install right hand axle I−Beam. Install the brake caliper. Refer to the necessary service procedures.
19. Install transmission inspection cover. Install starter motor.
20. Lower the vehicle and install the fan shroud.
21. Install motor mount retaining nuts. If removed, install distributor assembly.
22. Replace the oil level dipstick. Connect the battery ground. Fill crankcase with the correct amount of
new engine oil. Start engine and check for leaks.
23. If equipped with distributor ignition, check the base ignition timing.
4.0L Engine (VIN X)
Review the complete service procedure before starting this repair.
1. Disconnect the negative battery cable. Remove the complete engine assembly from the vehicle. Refer
to the necessary service procedures in this section.
2. Mount the engine on a suitable engine stand with oil pan facing up.
3. Remove the oil pan attaching bolts (note location of 2 spacers) and remove the pan from the engine
block.
4. Remove the oil pan gasket and crankshaft rear main bearing cap wedge seal.
5. Clean all gasket surfaces on the engine and oil pan. Remove all traces of old gasket and/or sealer.
To install:
360
HOW TO USE THIS BOOK

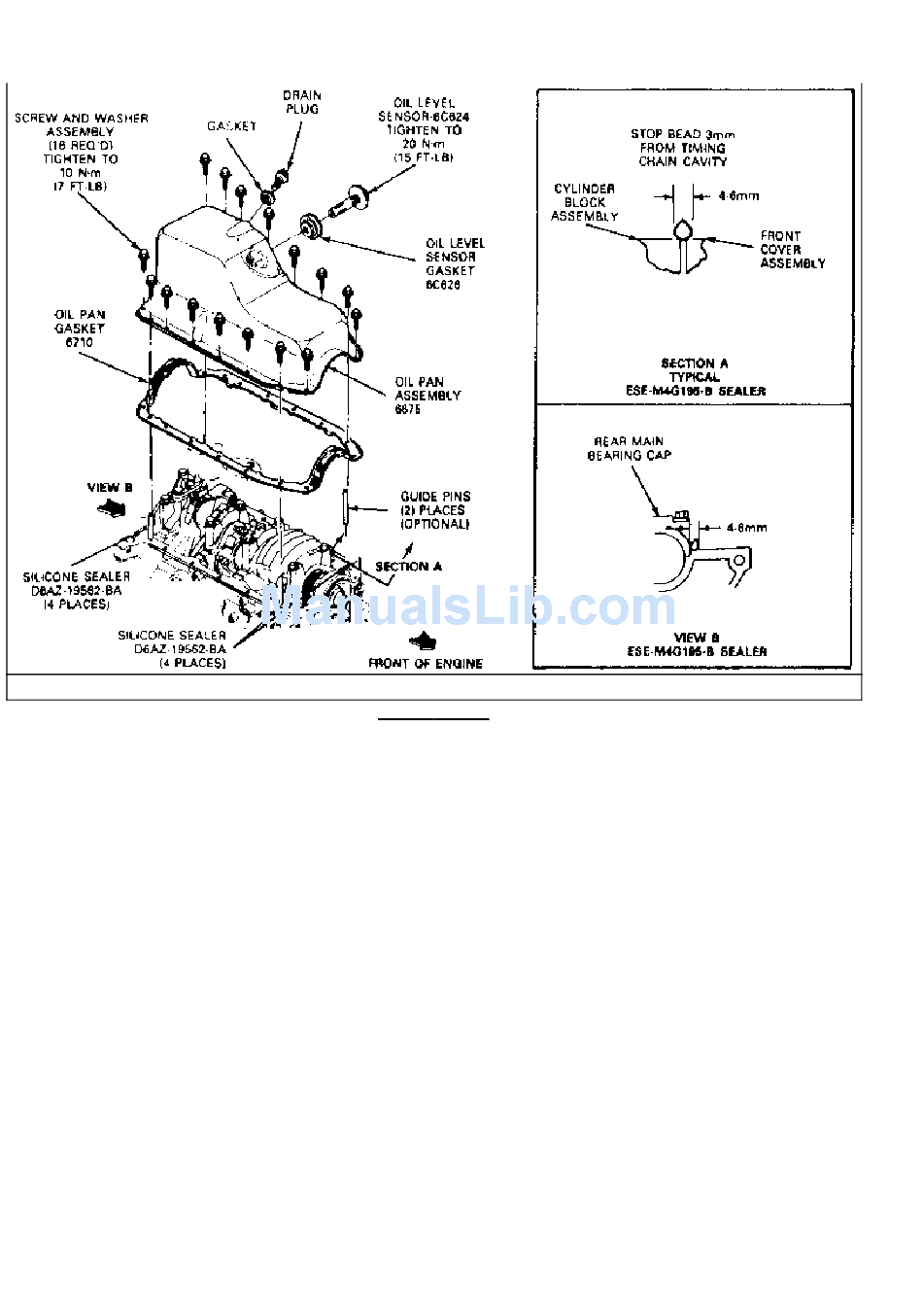

Oil pan installation for the 3.0L engine
Click to enlarge
REMOVAL & INSTALLATION
