Hood

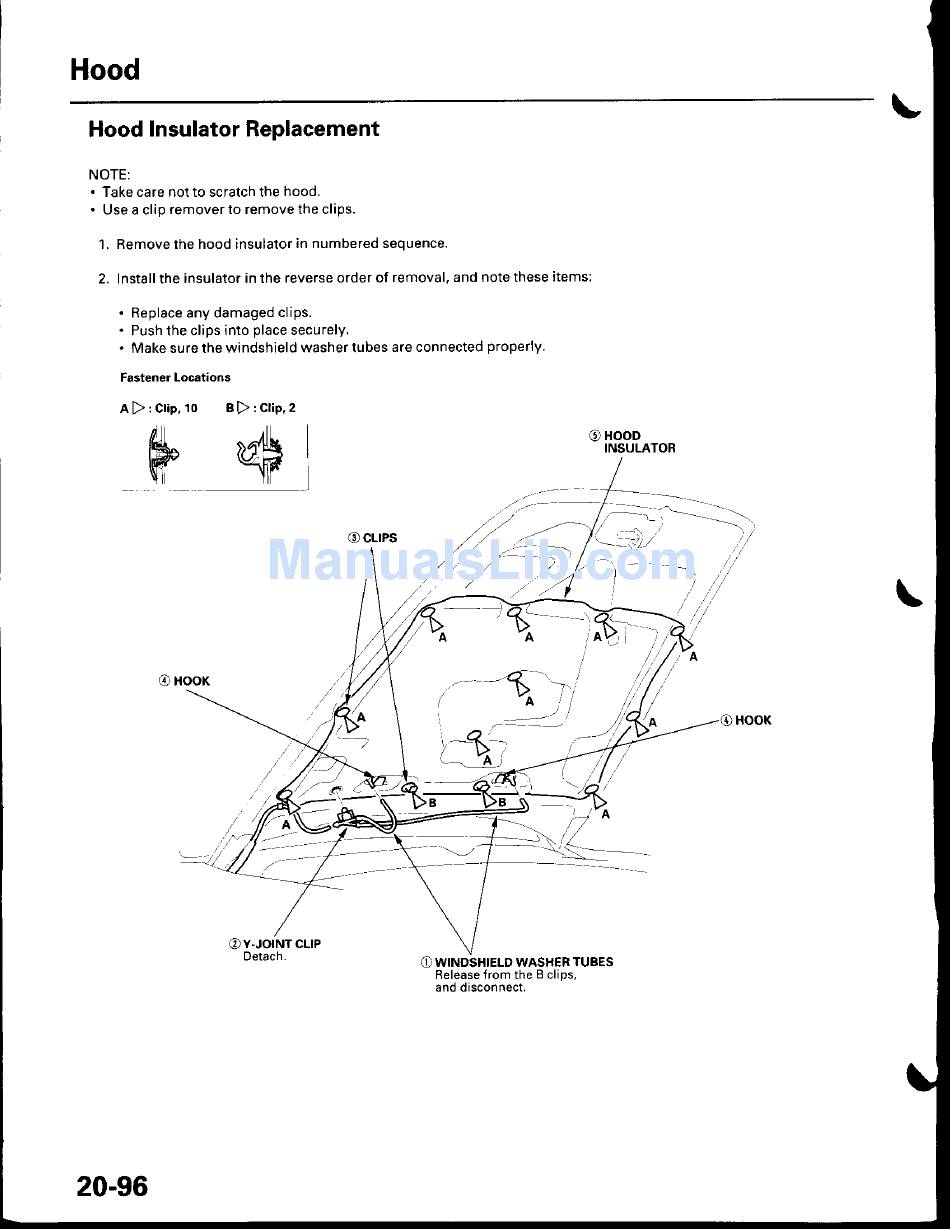

Hood Insulator Replacement
NOTE:
. Take care notto scratch the hood.
. Use a clip remover to remove the clips.
1. Remove the hood insulator in numbered sequence.
2. lnstallthe insulator in the reverse order of removal. and note these items:
. Replace any damaged clips.
. Push the clips into place securely.
. Make sure the windshield washer tubes are connected properly.
Fastengr Locations
A > : C l i p , 1 0
B > : C l i p . 2
o cLrPs
O HooK
O HooD
INSULATOR
OWINOSHIELD
WASHER TUBES
Belease from the I clips,
and disconnect.
20-96
