FRX6000

Getting Started

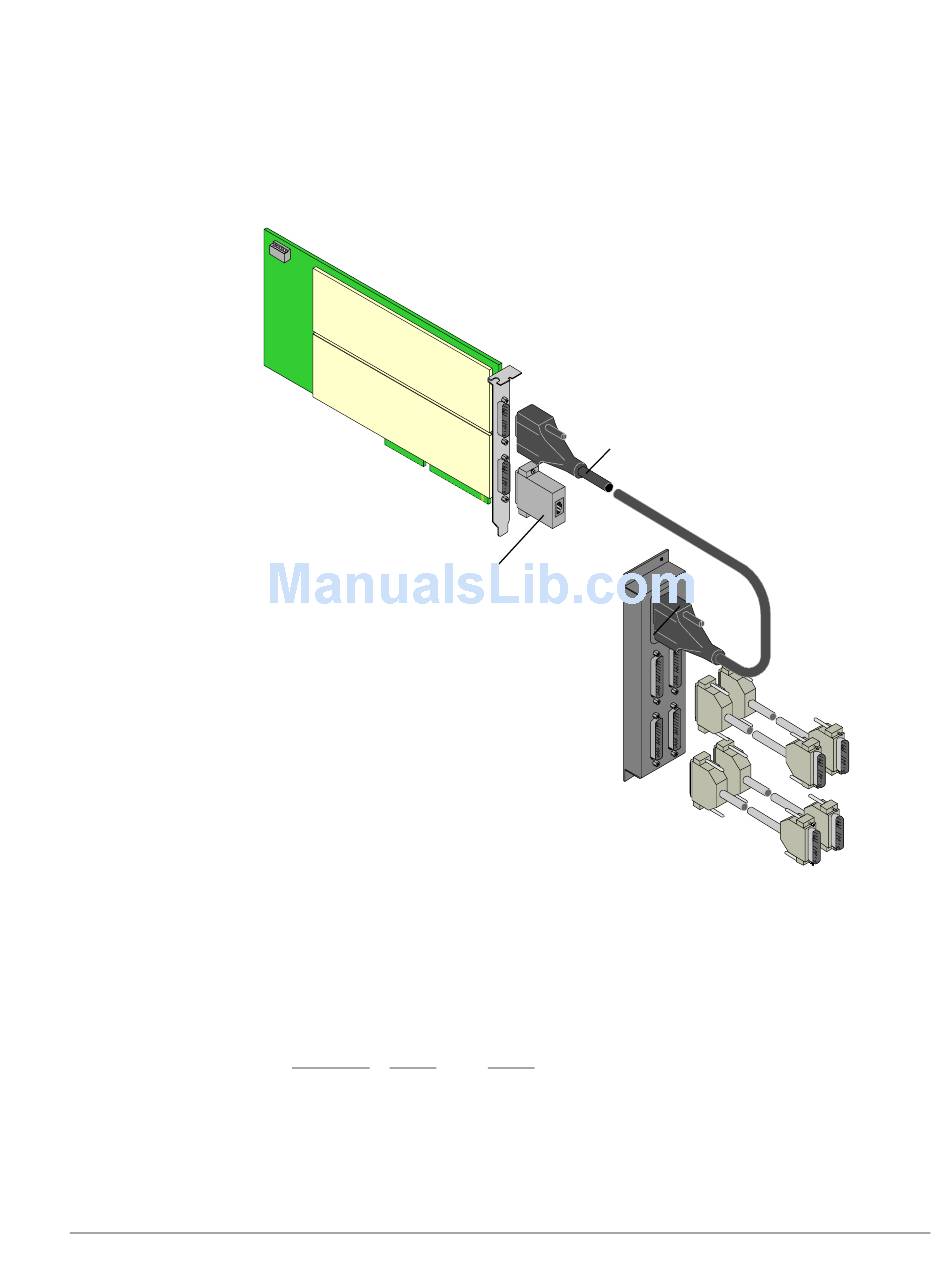

Figure 2-2 shows the locations of the physical ports on an FRX6000 RLP. An
FRX6000 can contain up to eight RLPs, numbered (via switches) 0–7. When an
FRX6000 is shipped from Cabletron, all installed RLPs are numbered consecutively
(starting with RLP 0), right to left, as viewed from the rear of the FRX6000.
RLP
LIC 1
LIC 2
RJ45 Adapter on
T1/E1 Port 4
Figure 2-2 Physical Ports on an FRX6000 RLP
The above example shows LIC 1 as V.35, RS-232, or RS-422, and LIC 2 as T1 or E1.
The ports supported by each LIC type are:
LIC Type LIC 1
V.35 Ports 0-3
RS-232 Ports 0-3
RS-422 Ports 0-3
T1 Port 0
E1 Port 0
RLP Cable
I/O Box
I/O Cables to
Modems and
User Devices
LIC 2
Ports 4-7
Ports 4-7
Ports 4-7
Port 4
Port 4
2
0
3
1
2-3
