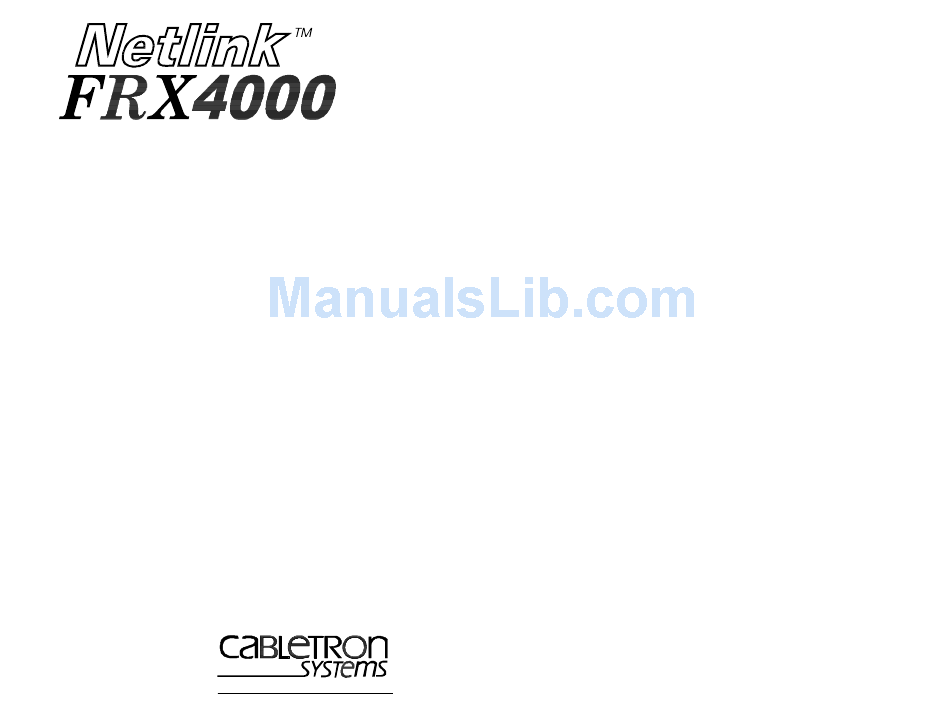

- Page 1 Installation & Setup Guide The Complete Networking Solution...
-
Page 2: About This Manual
Related Documents A copy of the Netlink FRX4000 and FRX6000 User Guide should always be on site at each FRX6000. Copies of this and other Cabletron documents can be ordered from Cabletron Systems or your local distributor of Cabletron products. -
Page 3: Site Requirements
If you will be rack mounting the FRX4000, the holes in the vertical mounting angles in the rack must either be threaded (10-32) or have captive nuts installed. For reference, an FRX4000 weighs 9 lbs. (4.1 kg), and is 17.5" (44 cm) wide, 11" (27.7 cm) deep, and 1.75" (4.4 cm) high. - Page 4 1. Unpack and inspect the equipment. A shipment will generally include two RS-232 cable 2. Record the serial number found on the bottom of the FRX4000. This will 3. If you are not rack mounting the unit, go to step 5. If you are mounting the boxes, the contents of which are described below.
- Page 5 If mounting the device into a rack with EIA-standard hole spacing (repeating pattern of 5/8"-5/8"-1/2"), make sure each mounting tab on the FRX4000 is centered on a hole with 5/8" between it and the next hole in either direction, as shown in Figure 5.
- Page 6 Figure 1 through Figure 3. 6. Make sure the AC power switch on the rear of the FRX4000 (see Figure 7) is Off. (The switch is off when the left side is depressed.) This is simply to assure the FRX4000 will not start before you are ready.
- Page 7 If you want to display the BOOTRPT.TXT file, press Main Menu. This completes the installation. If this FRX4000 is the first one in a network that contains other FRX4000s running an older release of the software, the new software can be downloaded to the other FRX4000s. (This works only with other FRX4000s-although the base software is the same, you cannot download from an FRX4000 to an FRX6000, 9W004, or SmartSwitch 1800.)
- Page 8 Questions? If you have questions or problems, please contact Cabletron Systems Technical Support at: Phone: 603-332-9400 Fax: 603-337-3075 E-mail: support@ctron.com Installation & Setup Guide The Complete Networking Solution Document number 09-41-06-103-02...
