Ê Remove the riser module 1, see section
on page 74.
9.9.2.2

Removing an expansion card from a riser module

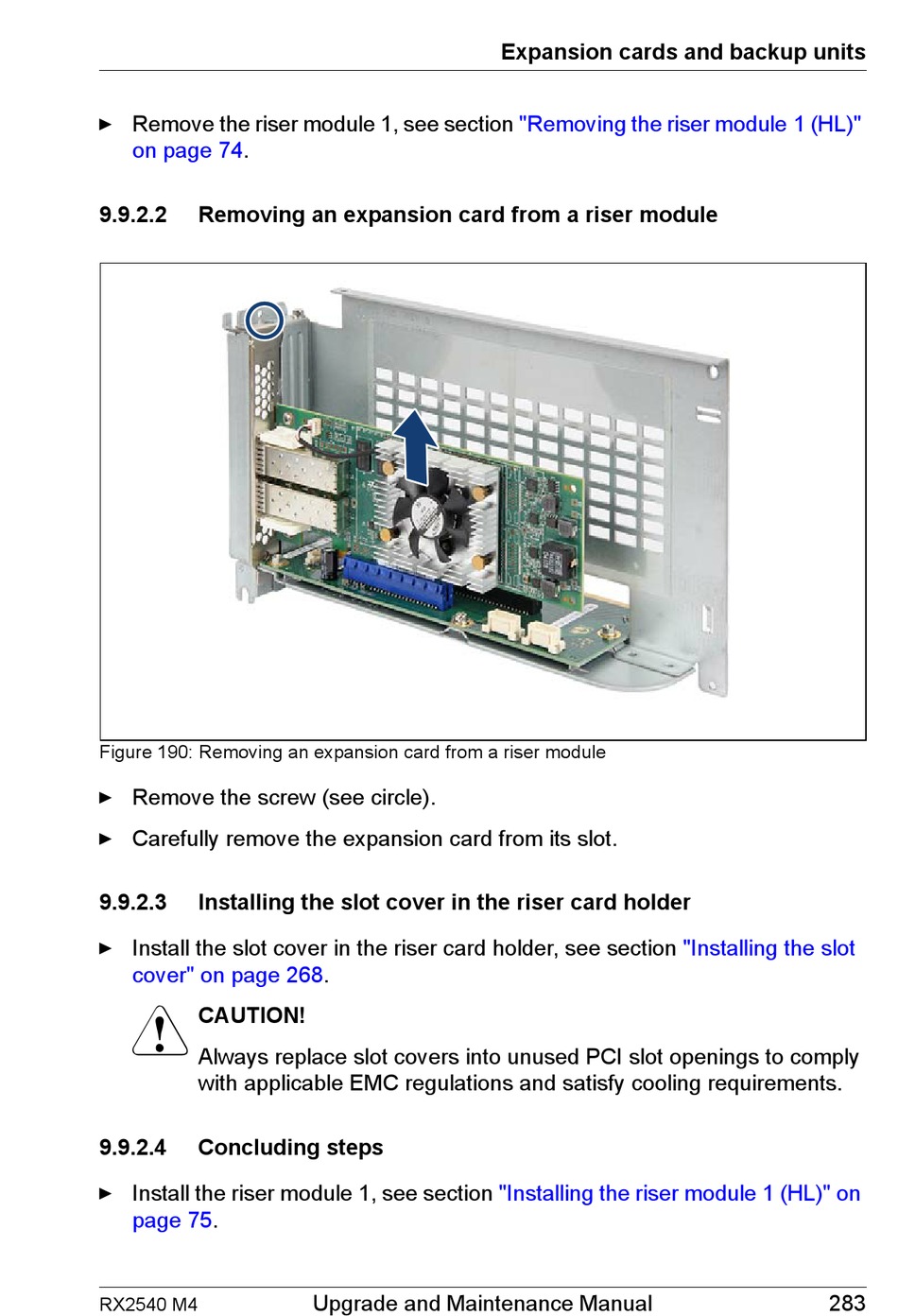

Figure 190: Removing an expansion card from a riser module
Ê Remove the screw (see circle).
Ê Carefully remove the expansion card from its slot.
9.9.2.3

Installing the slot cover in the riser card holder

Ê Install the slot cover in the riser card holder, see section
cover" on page
V
CAUTION!
Always replace slot covers into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
9.9.2.4

Concluding steps

Ê Install the riser module 1, see section
page 75.
