System board and components

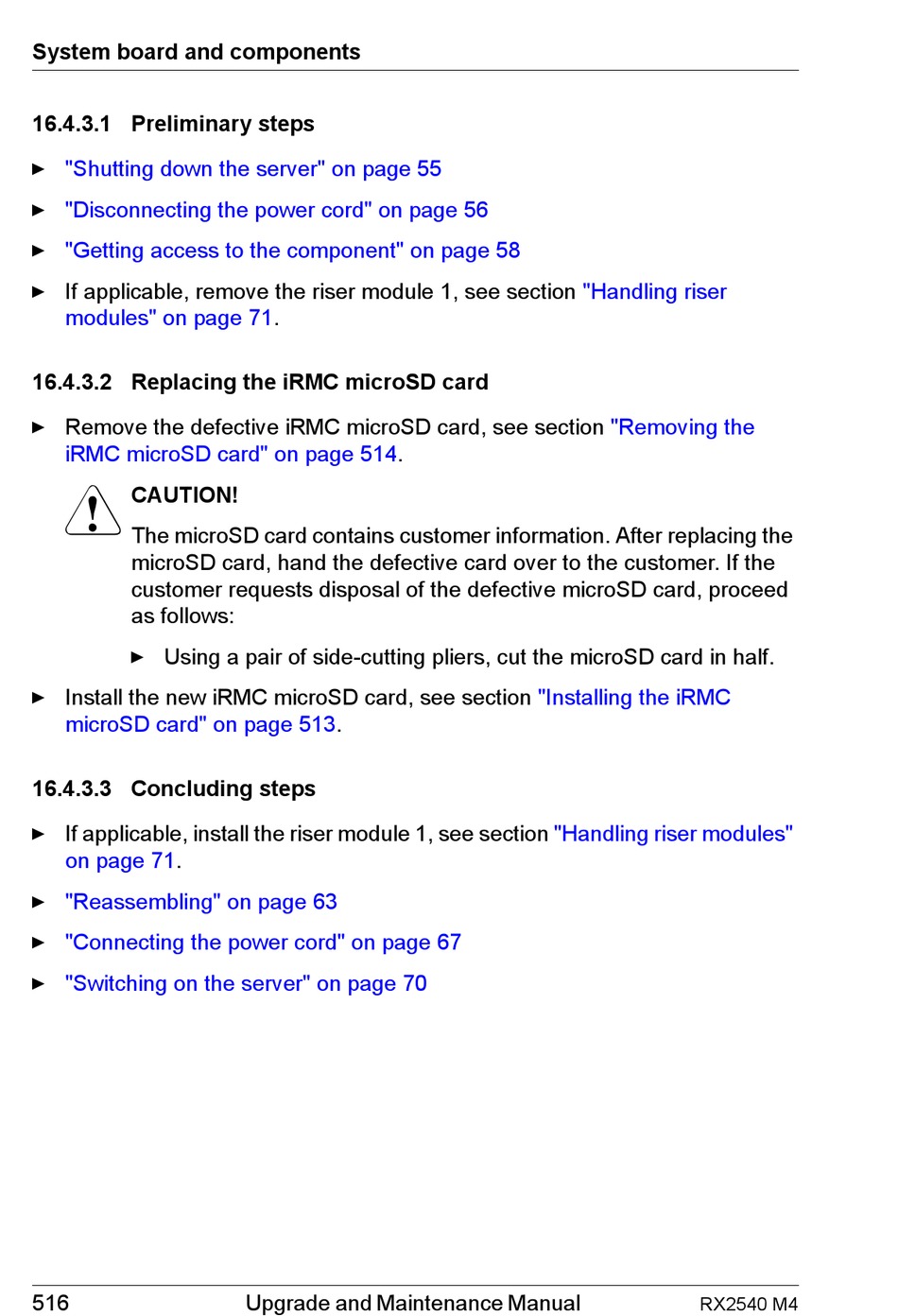

16.4.3.1 Preliminary steps

"Shutting down the server" on page 55
Ê
"Disconnecting the power cord" on page 56
Ê
"Getting access to the component" on page 58
Ê
Ê If applicable, remove the riser module 1, see section
modules" on page
16.4.3.2 Replacing the iRMC microSD card
Ê Remove the defective iRMC microSD card, see section
iRMC microSD card" on page
V
CAUTION!
The microSD card contains customer information. After replacing the
microSD card, hand the defective card over to the customer. If the
customer requests disposal of the defective microSD card, proceed
as follows:
Ê Using a pair of side-cutting pliers, cut the microSD card in half.
Ê Install the new iRMC microSD card, see section
microSD card" on page
16.4.3.3 Concluding steps
Ê If applicable, install the riser module 1, see section
on page 71.
"Reassembling" on page 63
Ê
"Connecting the power cord" on page 67
Ê
"Switching on the server" on page 70
Ê
516
71.
514.
513.
Upgrade and Maintenance Manual
"Handling riser
"Removing the
"Installing the iRMC
"Handling riser modules"
RX2540 M4
