Basic hardware procedures

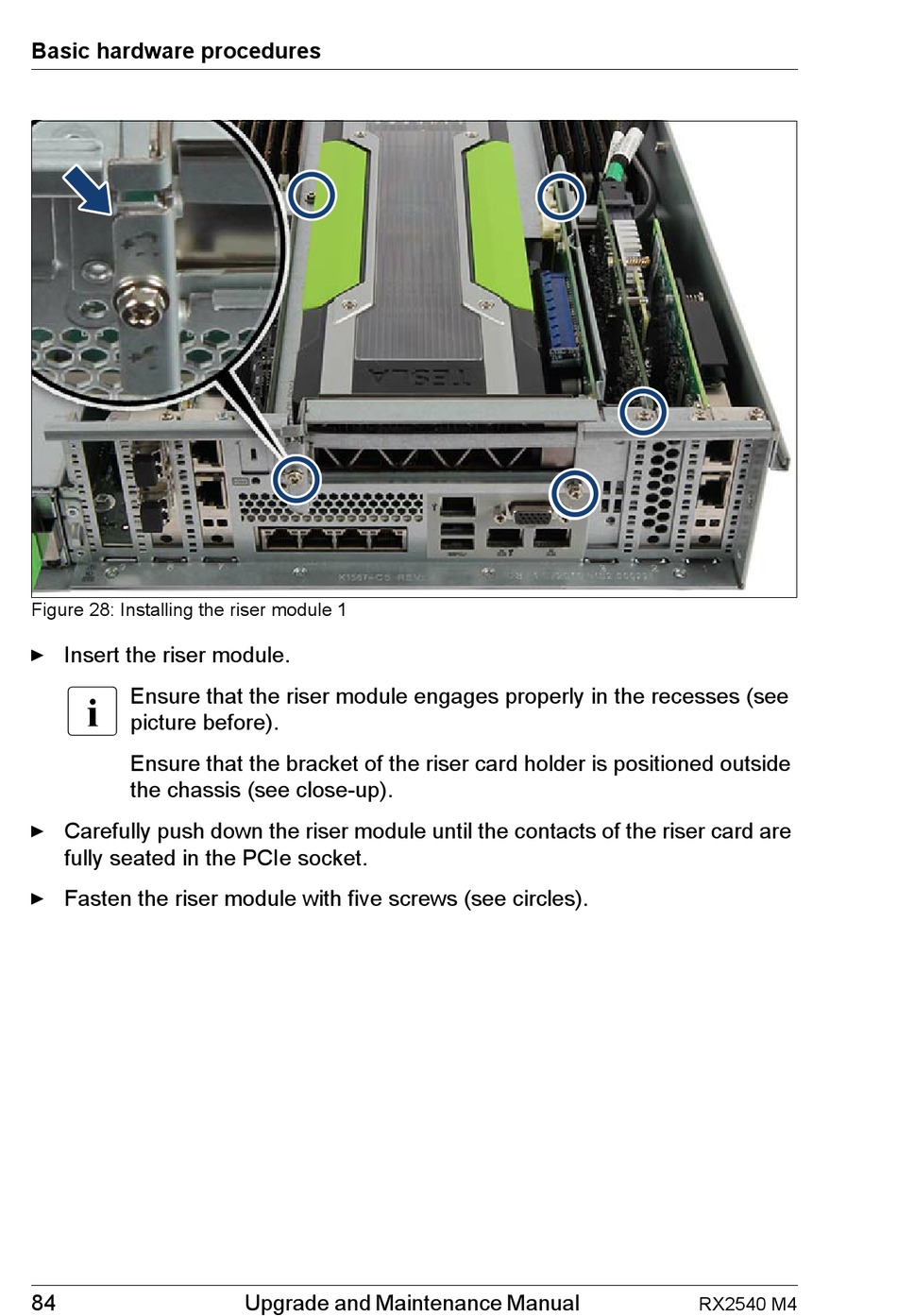

Figure 28: Installing the riser module 1
Ê Insert the riser module.
I
Ensure that the riser module engages properly in the recesses (see
picture before).
Ensure that the bracket of the riser card holder is positioned outside
the chassis (see close-up).
Ê Carefully push down the riser module until the contacts of the riser card are
fully seated in the PCIe socket.
Ê Fasten the riser module with five screws (see circles).
