Basic hardware procedures
4.8.2.3

Removing the riser module 2 (HL)

Ê If applicable, "Removing an SFP+ transceiver module" on page 244.

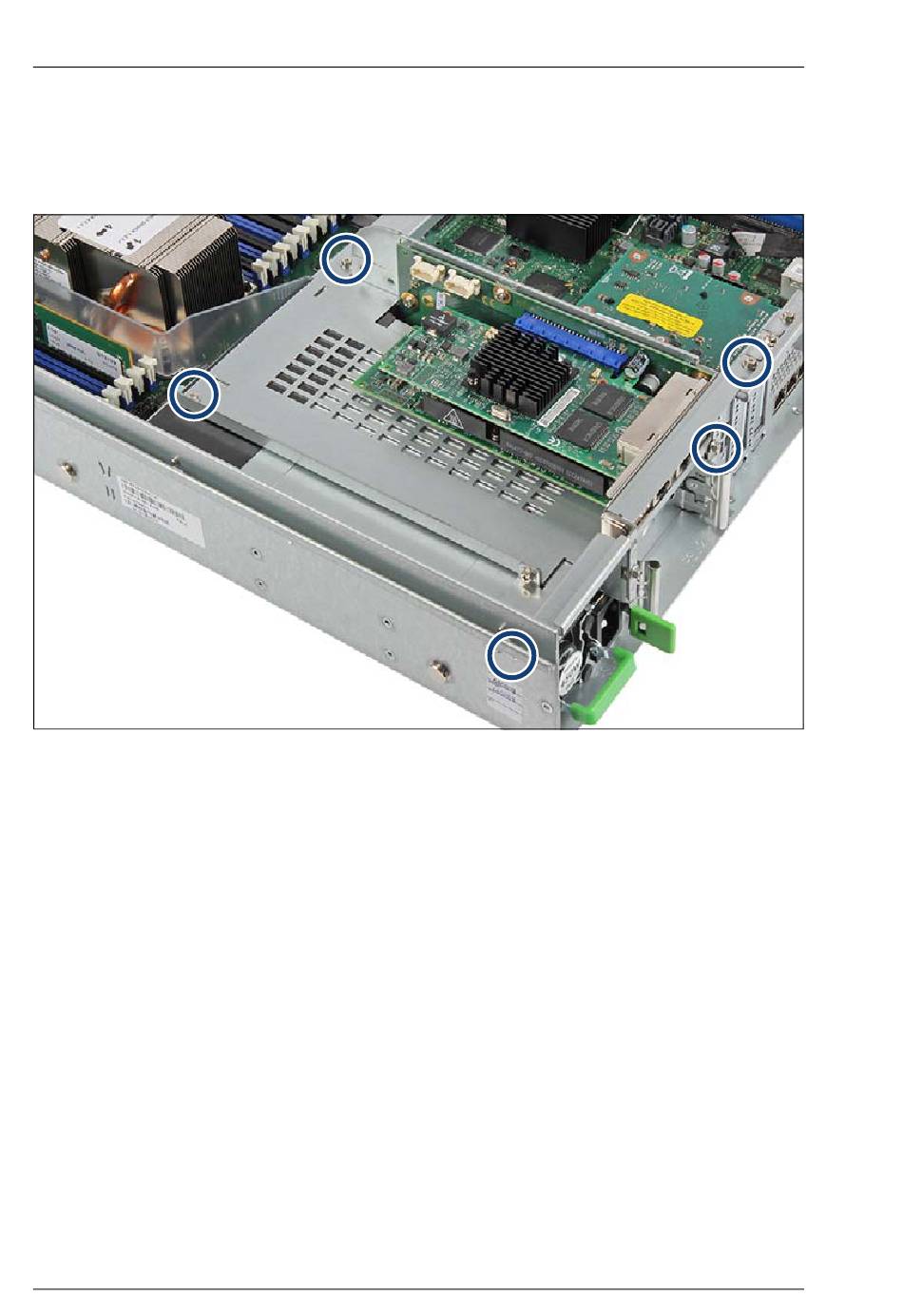

Figure 22: Removing the riser module 2 (B)
Ê Remove five screws (see circles and close-up).
Ê Carefully take out the riser module.
78 Upgrade and Maintenance Manual
RX2540 M4
