Additional interfaces
15.2
Rear VGA connector
15.2.1 Replacing the rear VGA connector
Upgrade and Repair Unit
(URU)
Tool:
– hexagon screw driver 5 mm
15.2.1.1 Preliminary steps
"Shutting down the server" on page 55
Ê
"Disconnecting the power cord" on page 56
Ê
"Getting access to the component" on page 58
Ê
15.2.1.2 Removing the rear VGA connector

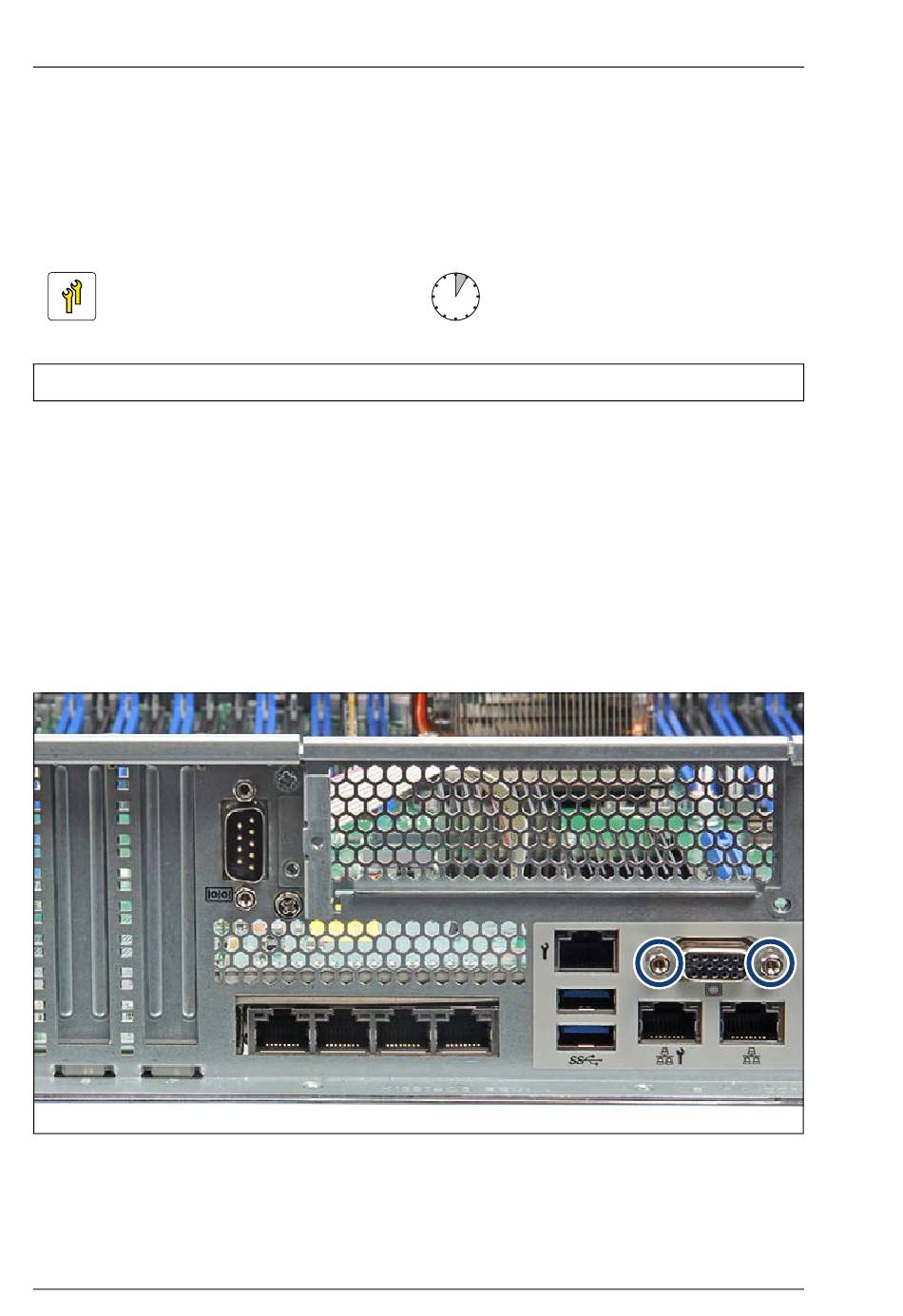

Figure 368: Removing the rear VGA connector (A)
Ê Remove the two hexagon bolts (see circles).
494
Upgrade and Maintenance Manual
Hardware: 5 minutes
RX2540 M4
