Removing the HDD backplane

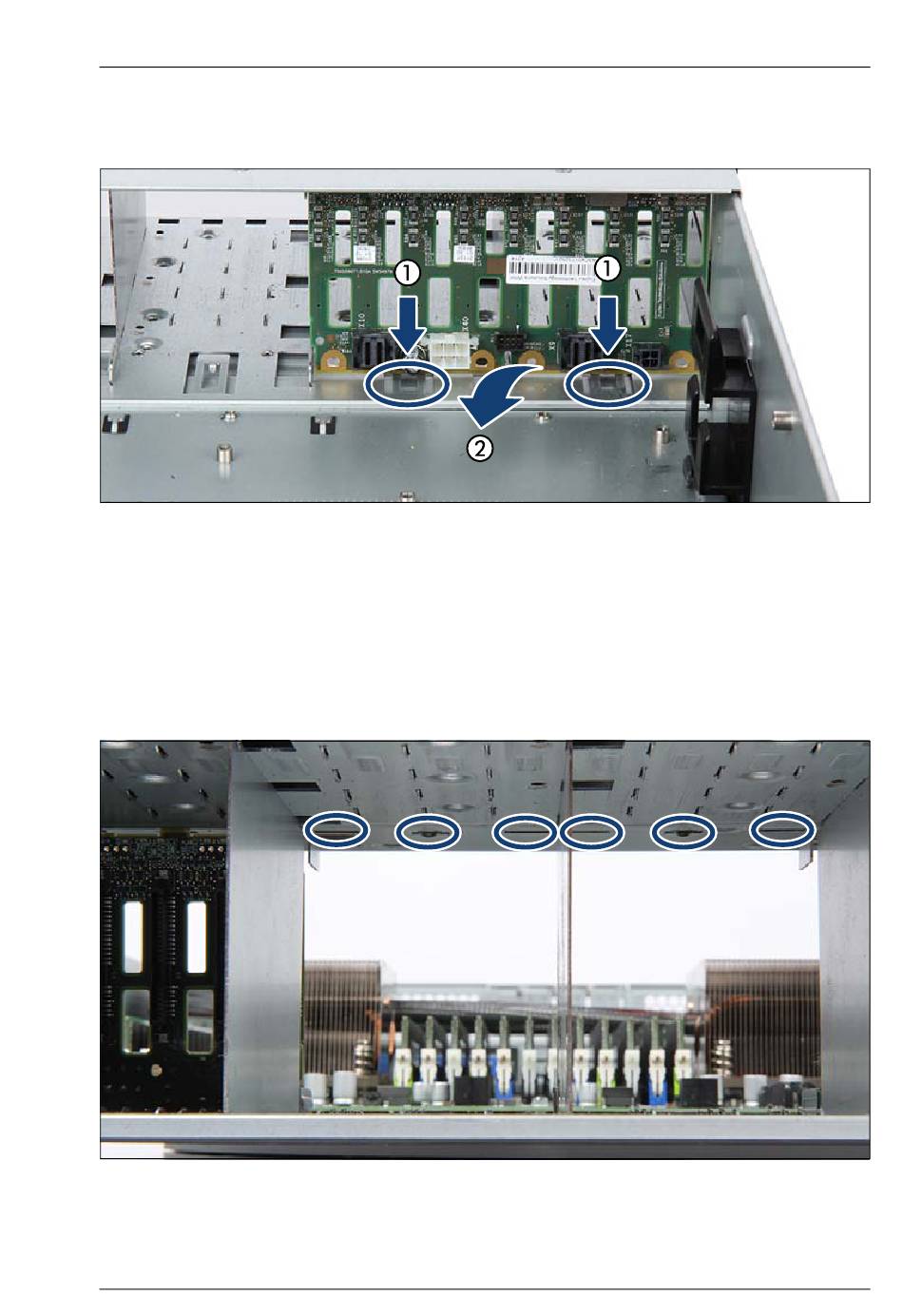

Figure 103: Removing the 8x 2.5-inch SAS HDD/SSD backplane
Ê Press down the two hooks (1) with a flat screw driver and tilt out the
backplane (2).
Ê Take out the HDD backplane.
7.4.9.4

Installing the HDD backplane

Figure 104: Recesses at the top for the 2.5-inch SAS HDD/SSD backplane
Ê Regard the six recesses at the top.
