Operating Manual - English

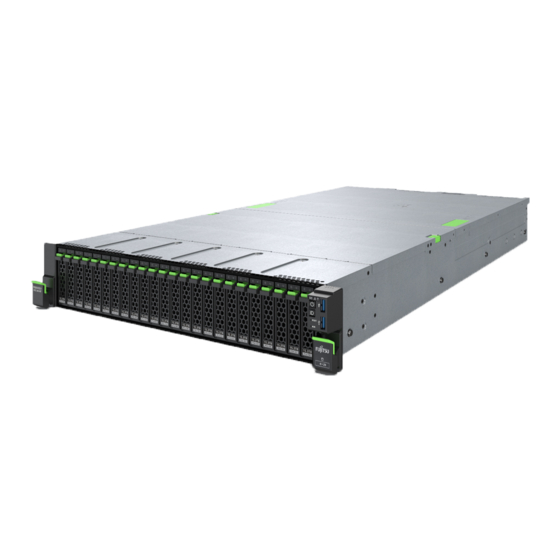

Fujitsu Server PRIMERGY RX2540 M7
Operating Manual
12/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRIMERGY RX2540 M7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fujitsu PRIMERGY RX2540 M7

Summary of Contents for Fujitsu PRIMERGY RX2540 M7

  • Page 1 Operating Manual - English Fujitsu Server PRIMERGY RX2540 M7 Operating Manual 12/2024...
  • Page 2 All hardware and software names used are trademarks of their respective manufacturers. The contents of this manual may be revised without prior notice. – Fujitsu assumes no liability for damages to third party copyrights or other rights arising from – the use of any information in this manual.

  • Page 3: Before Reading This Manual

    Before reading this manual For your safety This manual contains important information for safely and correctly using this product. Carefully read the manual before using this product. Pay particular attention to the accompanying manual "Safety Notes and Regulations" and ensure that these safety notes are understood before using the product.
  • Page 4 Please consult the sales staff of Fujitsu if intending to use this product for high safety use. Measures against momentary voltage drop This product may be affected by a momentary voltage drop in the power supply caused by lightning.
  • Page 5 For more information on the usage and operation conditions of each available type of HDD, see the following internet address: https://jp.fujitsu.com/platform/server/primergy/harddisk/ Only for Japan: Shielded LAN cables should be used in this product. UK Importer information Fujitsu Services Limited 22 Baker Street, London, W1U 3BW, United Kingdom RX2540 M7 Operating Manual...

  • Page 6: Version History

    Version history Issue Issue date Description number V 1.0 01/2023 Initial release V 1.1 03/2023 Initial release Optane PMem memory modules removed V 2.0 05/2023 The following sections were added ● Liquid cooling ● Power management features V 3.0 08/2023 The following sections were updated ●...

  • Page 7: Table Of Contents

    Content Introduction Concept and target groups of this manual Notational conventions Before you start Safety notes Documentation overview 2.2.1 About availability of manuals 2.2.2 List of documents Product description Overview of the server 3.1.1 Server front 3.1.1.1 3.5-inch HDD configuration 3.1.1.2 2.5-inch HDD/SSD configuration 3.1.2...
  • Page 8 Content 3.2.10 Server management 3.2.11 ServerView Installation Manager 3.2.12 Service and support 3.2.13 ISM Remote Management 3.2.14 ServerView Remote Management 3.2.15 Property and data protection 3.2.16 BIOS setup security functions Connectors, controls, and indicators 3.3.1 Server front 3.3.1.1 Connectors on the server front 3.3.1.2 Controls on the Common Operation Panel (COP) 3.3.1.3...
  • Page 9 Content FCC Class A Compliance Statement Environmental protection Starting up Safety notes Installation steps, overview Unpacking the server Installing the server in the rack 5.4.1 Overview 5.4.2 Installing the server in the rack 5.4.3 Sliding the server into the rack Connecting cables 5.5.1 Notes on connecting/disconnecting cables...
  • Page 10 Content 5.11 Note on operating system Operation Safety notes Removing and installing the front cover with lock Switching the server on and off Installing HDD/SSD modules 6.4.1 Installing 3.5-inch HDD modules 6.4.2 Installing 2.5-inch HDD/SSD modules Installing a second PSU Cleaning the server Troubleshooting and tips General proceeding...
  • Page 11 Content 7.10 Time and/or date is incorrect 7.11 Temperature warning 7.12 Added drive reported as defective 7.13 Expansion cards or onboard devices not recognized 7.14 ODD cannot read data Technical data Data Sheets System board Processor (CPU) Memory modules configuration Interfaces Onboard or integrated controllers Slots...
  • Page 12 Content 8.17 Compliance with standards Warranty and service Operating Manual RX2540 M7...

  • Page 13: Introduction

    This operating manual is intended for those responsible for installing the hardware and ensuring that the system runs smoothly. The operating manual contains all the information you need to put the PRIMERGY RX2540 M7 into operation. To understand the various expansion options, you will need to be familiar with the fields of hardware and data transmission and you will require a basic knowledge of the underlying operating system.
  • Page 14 Introduction Operating Manual RX2540 M7...

  • Page 15: Before You Start

    2.2.1 About availability of manuals To get an overview on all documents for your server, see Table All documentation on PRIMERGY hardware and software is available online on the Fujitsu support page at: https://support.ts.fujitsu.com For Japan: https://www.fujitsu.com/jp/products/computing/servers/primergy/manual/ For Japan: The complete PRIMERGY documentation set can also be downloaded as a DVD ISO image at: https://www.fujitsu.com/jp/products/computing/servers/primergy/...

  • Page 16: List Of Documents

    – "iRMC S6 - Concepts and Interfaces" user guide – "iRMC S6 - Configuration and Maintenance" user guide – "iRMC S6 - Web Interface" user guide Infrastructure Manager "Fujitsu Software Infrastructure Manager V2.9.0 documentation Infrastructure Manager for PRIMEFLEX V2.9.0 User's Guide" ServerView documentation – "ServerView embedded Lifecycle Management (eLCM)"...
  • Page 17 "保証書" for Japan printed copy "Returning used devices" Recycling and contact information, available manual online at https://ts.fujitsu.com/recycling, or as a printed copy "Service Desk" leaflet Not applicable in Japan and other countries that "サポート＆サービス" for have different regulations for recycling...
  • Page 18 Before you start Operating Manual RX2540 M7...

  • Page 19: Product Description

    Product description Overview of the server 3.1.1 Server front 3.1.1.1 3.5-inch HDD configuration Figure 1: Front side 10x 3.5-inch HDDs/SSDs Figure 2: Front side 12x 3.5-inch HDDs/SSDs Thermal sensor Common Operation Panel Front VGA (option) HDDs / dummy modules ODD (option) / dummy cover RX2540 M7 Operating Manual...

  • Page 20: Inch Hdd/Ssd Configuration

    Product description 3.1.1.2 2.5-inch HDD/SSD configuration Figure 3: Front side 16x 2.5-inch HDDs / SSDs / PCIe SSDs Figure 4: Front side 24x 2.5-inch HDDs / SSDs / PCIe SSDs Thermal sensor LTO drive (option) / RDX drive Front VGA (option) (option) / dummy cover Common Operation Panel HDDs / SSDs / PCIe SSDs / dummy...

  • Page 21: Server Rear

    Product description 3.1.2 Server rear 3.1.2.1 Servers with air cooling Figure 5: Server rear (standard configuration) Figure 6: Server rear (configuration with rear HDD cages) RX2540 M7 Operating Manual...
  • Page 22 Product description Figure 7: Server rear (configuration with riser modules) HDDs / SSDs / PCIe SSDs PCIe slots 1-2 PCIe slots 9 or 9/10 / riser module 2 HDDs / SSDs / PCIe SSDs (option) PSU 2 (option) / dummy cover Rear VGA OCP module (option) / dummy cover PCIe slots 5-8...

  • Page 23: Servers With Liquid Cooling

    Product description 3.1.2.2 Servers with liquid cooling Figure 8: Server rear with liquid cooling Rear VGA Liquid cooling connector - liquid outlet PCIe slots 5-8 Liquid cooling connector - liquid inlet Serial interface (option) / slot cover Management LAN PCIe slots 1-2 USB 3.0 (2x) PSU 2 (option) / dummy cover PSU 1...

  • Page 24: System Board

    3.2.2 System board The features of the system board are described in the "Fujitsu Server PRIMERGY RX2540 M7 Upgrade and Maintenance Manual". The setup possibilities are described in the "D3983 BIOS Setup Utility for Fujitsu Server PRIMERGY RX2540 M7 Reference Manual".

  • Page 25: Power Supply Unit (Psu)

    Product description CAUTION ▶ When using the TPM, note the program descriptions provided by the third party manufacturers. ▶ You must create a backup of the TPM content. To do this, follow the third party manufacturer's instructions. Without this backup, if the TPM or the system board is faulty, you will not be able to access your data.

  • Page 26: Advanced Thermal Design (Atd)

    PRIMERGY servers are designed for the usage with operating temperatures of up to 35 °C. There could be configurations that are not able to work within this normal operation class. Please refer to Datasheet and Fujitsu WebArchitect ( www.fujitsu.com/configurator/ public) to obtain detailed information on the corresponding configurations.

  • Page 27: High Level Of Availability And Data Security

    "hides" the defective system components. The Prefailure Detection and Analysis (PDA) technology from Fujitsu analyzes and monitors all components that are critical for system reliability. A RAID controller supports different RAID levels and increase the availability and data security of the system.

  • Page 28: Infrastructure Manager

    "List of documents" on page 3.2.9 Infrastructure Manager Fujitsu is standardizing on Infrastructure Manager (ISM) as its powerful tool for managing and monitoring entire IT landscapes, including servers, storage, networking as well as power and cooling. ISM simplifies data center management by centralizing all operations and monitoring the entire IT infrastructure environment in a single unified platform.

  • Page 29: Server Management

    – ISM Advanced license Fully featured advanced version of ISM that provides comprehensive infrastructure management across multiple data center. More information about ISM is available from the Fujitsu web pages: https://www.fujitsu.com/emeia/products/computing/servers/ infrastructure-management/index.html 3.2.10 Server management...

  • Page 30: Serverview Installation Manager

    (memory module, CPU, fan, or expansion card) is not functioning properly. The Flash EPROM program supplied with the Fujitsu utilities supports a fast BIOS update. With the iRMC on the system board, the server can also be maintained and serviced remotely.

  • Page 31: Serverview Remote Management

    ServerView Remote Management ServerView Remote Management is the remote management solution from Fujitsu for PRIMERGY servers. ServerView Remote Management and the relevant hardware components integrated on the system board allow remote monitoring and maintenance as well as fast restoration of operation in the event of errors.

  • Page 32: Bios Setup Security Functions

    By combining these options, you can also achieve optimum protection for your system. A detailed description of the Security menu and how to assign passwords can be found in the "D3983 BIOS Setup Utility for Fujitsu Server PRIMERGY RX2540 M7 Reference Manual". Connectors, controls, and indicators 3.3.1...

  • Page 33: Controls On The Common Operation Panel (Cop)

    Product description 3.3.1.2 Controls on the Common Operation Panel (COP) Figure 10: Controls on the COP On/Off button Reset button ID button NMI button On/Off button (1) Used to switch the server on or off. If the system is running an ACPI-compliant operating system, pressing the On/Off button will perform a graceful shutdown.

  • Page 34: Indicators On The Server Front

    Product description NMI button (4) Used to troubleshoot software and device driver errors. Press the NMI button with a straightened end of a paper clip. CAUTION ▶ Use this button only if directed to do so by qualified certified maintenance personnel. 3.3.1.3 Indicators on the server front Indicators on the Common Operation Panel (COP)
  • Page 35 Product description Status Description blue on The server has been highlighted using the iRMC S6 web interface or the ID button on the front panel for easy identification. flashing blue The server has been highlighted for easy identification using the iRMC S6 with disabled local VGA output.
  • Page 36 Product description Status Description flashing orange CSS component failure detected. Global Error indicator (4) See also "iRMC-related status signals" on page Status Description No critical event detected (non-CSS component). orange on Prefailure event detected (non-CSS component). flashing orange Non-CSS component failure detected. Possible causes: –...
  • Page 37 An emergency flash of the iRMC firmware is in progress. For more information about the iRMC flash procedure, see "Basic software procedures" in the "Fujitsu Server PRIMERGY RX2540 M7 Upgrade and Maintenance Manual". HDD prefailure detection Depending on your hardware configuration HDD prefailure detection will be supported.
  • Page 38 Product description Figure 12: Indicator on the ODD (example) Activity indicator Activity indicator (1) Status Description The ODD is inactive. green on The storage medium is being accessed. Indicators on the RDX drive Figure 13: Indicators on the RDX drive RDX drive Power-on indicator Operating Manual RX2540 M7...
  • Page 39 Product description RDX drive Power-on indicator (1) Status Description The drive is not powered on. green on The drive is ready and working properly. green flashing The drive is ejecting media. amber on RDX has detected a drive failure condition. For more information, run a diagnostics application.
  • Page 40 Product description Status Description green on / amber Host computer is accessing the media and the user flashing once eject has pressed the eject button. The drive will eject the button is pressed media after host access is complete. Indicators on hot-plug HDD / SSD / PCIe SSD modules Figure 15: Indicators on an hot-plug HDD / SSD / PCIe SSD module Access indicator Error indicator...

  • Page 41: Server Rear

    Product description Error indicator (2) Status Description No HDD/SSD error detected. orange on An HDD/SSD error has been detected. Possible causes: – The drive is defective and needs replacing. – A RAID rebuild process has failed. – The HDD/SSD module has not been inserted correctly.
  • Page 42 Product description Depending on the BIOS settings, the shared LAN connector may also be used as a management LAN connector. For more information, see the corresponding BIOS Setup Utility reference manual. Some of the devices connected require special software (e.g. drivers) (see documentation for the connected device).

  • Page 43: Id, Css And Global Error Indicators

    Product description 3.3.2.2 ID, CSS and Global Error indicators Figure 18: ID, CSS and Global Error indicators ID indicator CSS indicator Global Error indicator ID indicator (1) See also "iRMC-related status signals" on page Status Description blue on The server has been highlighted using iRMC web interface or the ID button on the front panel for easy identification.
  • Page 44 Product description Status Description flashing orange Non-CSS component failure detected. Possible causes: – System is out of the specified temperature range – Defective sensor – CPU error – Error detected by server management software CSS indicator (3) Status Description No critical event detected (CSS component). orange on Prefailure event detected (CSS component).

  • Page 45: Lan Indicators

    Product description For more information about the iRMC flash procedure, see "Basic software procedures" in the "Fujitsu Server PRIMERGY RX2540 M7 Upgrade and Maintenance Manual". 3.3.2.3 LAN indicators Figure 19: LAN indicators LAN link/transfer indicator LAN speed indicator LAN link/transfer indicator (1)
  • Page 46 Product description LAN speed indicator (2) Status Description yellow on Data traffic at a transfer rate of 1 Gbit/s. green on Data traffic at a transfer rate of 100 Mbit/s. Data traffic at a transfer rate of 10 Mbit/s. Indication of LAN connection supporting Energy Efficient Ethernet (EEE mode) To configure the EEE mode, it is necessary that an add-in LAN card supports this mode and the connected switch supports this mode as well.

  • Page 47: Indicator On Hot-Plug Psu

    Product description 3.3.2.4 Indicator on hot-plug PSU Figure 20: PSU status indicator (AC PSU) Figure 21: PSU status indicator (DC PSU) PSU status indicator PSU status indicator (1) Status Description flashing green The server is switched off, but mains voltage is present (standby mode).
  • Page 48 Product description Status Description flashing orange An overload has been detected. The PSU is still running, but failure might be imminent. orange on A PSU failure has been detected. Operating Manual RX2540 M7...

  • Page 49: Important Information

    Important information Introduction In this chapter you will find essential information regarding safety when working on your server. Depending on your server or the installed options some information is not valid for your server. CAUTION ▶ Before installing and starting up a server, please observe the safety instructions listed in the following section.

  • Page 50: Before Starting Up

    Important information ▶ Only valid for non hot-plug components Before installing/removing internal components to/from the server, turn off the server, all peripheral devices, and any other connected devices. Also unplug all power cords from the power outlet. Failure to do so can cause electric shock or damage.
  • Page 51 Important information ▶ If a DC power cord is used, the server must be connected to a proper DC source and earth ground stud/end. ▶ Ensure that the server is connected to a properly grounded power outlet close to the server. ▶...
  • Page 52 Important information ▶ Proper operation of the server (in accordance with IEC 60950-1/62368-1 resp. EN 60950-1/62368-1) is only ensured if the server is completely assembled and the rear covers for the installation slots have been fitted (electric shock, cooling, fire protection, interference suppression). ▶...

  • Page 53: Batteries

    Important information ▶ Install the screw removed during installation/detaching internal options in former position. To use a screw of the different kind can cause a breakdown of equipment. ▶ The procedure of installation on this notes might change depending on a configuration of option.
  • Page 54 Important information CAUTION ▶ Only use CDs/DVDs/BDs that are in perfect condition, in order to prevent data loss, equipment damage and injury. ▶ Check each CD/DVD/BD for damage, cracks, breakages etc. before inserting it in the drive. Note that any additional labels applied may change the mechanical properties of a CD/DVD/BD and cause imbalance and vibrations.

  • Page 55: Laser Information

    Important information ▶ Do not bend or place heavy objects on CDs/DVDs/BDs. ▶ Do not write with ballpoint pen or pencil on the label (printed) side. ▶ Do not attach stickers or similar to the label side. Doing so may cause rotational eccentricity and abnormal vibrations.
  • Page 56 Important information Figure 22: ESD label The ESD label can be different. When you handle ESD modules, you must always observe the following points: ▶ Switch off the server and remove the power plugs from the power outlets before installing or removing ESD modules. ▶...

  • Page 57: Transporting The Server

    Important information 4.2.8 Transporting the server CAUTION ▶ Only transport the server in its original packaging or in packaging that protects it from impacts and jolts. In Japan and APAC, transporting the server in its original packaging does not apply. ▶...

  • Page 58: Installing The Server In The Rack

    Important information 4.2.9 Installing the server in the rack CAUTION ▶ For safety reasons, at least 2 people are required to install the server in the rack because of its weight and size. (For Japan, see "安全上のご注意".) ▶ Never lift the server into the rack using the Quick Release Levers (QRLs) on the front panel.

  • Page 59: Ce Conformity

    ▶ Select the product class, e.g. "Industry Standard Servers". ▶ Select the subclass, e.g. "Rack server". ▶ Select your server, e.g. "PRIMERGY RX2540 M7". ▶ Select the document, e.g. "CE Cert PRIMERGY RX2540 M7". ENERGY STAR Products that have been certified compliant with ENERGY STAR and labelled are in full compliance with the specification at shipping.

  • Page 60: Fcc Class A Compliance Statement

    Important information Note The following table shows that the processor dynamic voltage and frequency scaling, processor low-power idle state, and dynamic memory low-power state are enabled on shipment and the end user does not need to enable them. Active State Power Management Enabled on End-user features...

  • Page 61: Environmental Protection

    ▶ Consult the dealer or an experienced radio/TV technician for help. Fujitsu is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Fujitsu. The correction of interferences caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.
  • Page 62 More information can be found at: https://ts.fujitsu.com/recycling Details regarding the return and recycling of devices and consumables within Europe can also be found in the "Returning used devices" manual, via your local Fujitsu branch, or at: https://ts.fujitsu.com/recycling Operating Manual RX2540 M7...

  • Page 63: Starting Up

    Starting up Safety notes CAUTION ▶ Follow the safety instructions in "Important information" on page ▶ Do not expose the server to extreme environmental conditions (see " Ambient conditions" on page 113). Protect the server from dust, humidity and heat. ▶...
  • Page 64 Installation Manager" on page For more information on installing the server (remote or local), see the "ServerView Installation Manager" user guide at https:// support.ts.fujitsu.com. ▶ Installation without ServerView Installation Manager Local configuration and installation, see "Configuring the server without ServerView Installation Manager" on page...

  • Page 65: Unpacking The Server

    ▶ Remove all scratching protection foils from the front panel, HDD/SSD frames, Fujitsu and PRIMERGY logo, VGA dummy and ODD dummy in case they are still sticked to the server system. RX2540 M7...

  • Page 66: Installing The Server In The Rack

    Fujitsu rack systems The rack systems from Fujitsu support the installation of PRIMERGY servers: – PRIMECENTER rack – PRIMECENTER M1 rack – DataCenter rack –...

  • Page 67: Installing The Server In The Rack

    The power is supplied via the multiple socket outlets fitted in the rack (not valid for Japan). The main features of Fujitsu rack systems are as follows: – rail systems that can be mounted without tools – support systems having a linear alignment feature to ensure that they can...
  • Page 68 Starting up For configurations below 32 kg: At least two people are needed to lift the server into the rack cabinet. For configurations below 55 kg: At least three people are needed to lift the server into the rack cabinet. For configurations above 55 kg: At least four people are needed to lift the server into the rack cabinet.
  • Page 69 Starting up Figure 23: Installing the server in the rack rails ▶ Fully extend the rack rails until they lock in place (1). The rack rails must click into place so that they can no longer be moved. ▶ At a slight angle, lower the server onto the rear mounting point on the rack rails (2).

  • Page 70: Sliding The Server Into The Rack

    Starting up 5.4.3 Sliding the server into the rack Figure 24: Sliding the server into the rack ▶ Release the locking mechanism of both rails (1). ▶ Push the server as far as it will go into the rack (2) until the two quick release levers engage (3).

  • Page 71: Connecting Cables

    Starting up Connecting cables 5.5.1 Notes on connecting/disconnecting cables CAUTION ▶ Always read the documentation supplied with the device you wish to connect. ▶ Never connect, or disconnect cables during a thunderstorm. ▶ Never pull on a cable when disconnecting it. Always take hold of the cable by the plug.

  • Page 72: Connecting Devices To The Server

    Starting up ▶ Disconnect all data communication cables from the utility sockets. ▶ Disconnect the relevant cables from the server and all the peripherals. For connecting or disconnecting LAN cables, the server does not need to be powered off. To avoid loss of data teaming function has to be enabled.

  • Page 73: Connecting The Liquid Cooling (Lc) To The External Cooling Environment (Special Release)

    Starting up Connecting the keyboard, mouse and monitor ▶ Connect the keyboard and mouse to the USB connectors of the server. ▶ Connect the monitor to one of the two video connectors at the front or rear. The front video connector is designed for maintenance issues. If you connect a monitor to the video connector at the front, the video connector at the rear is deactivated.

  • Page 74: Connecting The Power Cord

    A second PSU can be added to ensure a redundant power supply. If one PSU is defective, the other then guarantees unimpaired operation. Each PSU can be replaced during operation (see the "PRIMERGY RX2540 M7 Server Upgrade and Maintenance Manual").

  • Page 75: Connecting The Power Cord (Ac Psu)

    Starting up 5.5.4.2 Connecting the power cord (AC PSU) CAUTION The AC PSU adjusts automatically to any mains voltage in the range from 100 V - 240 V (AC PSU Platinum) or 200 V - 240 V (AC PSU Titanium). ▶...
  • Page 76 Starting up Using a cable clamp Figure 26: Locking the cable clamp of a PSU ▶ Pull the cable clamp up (1). ▶ Thread the power cord through the cable clamp (2). ▶ Press the cable clamp down until it engages to secure the cable (3). Operating Manual RX2540 M7...
  • Page 77 Starting up Using a hook-and-loop tape Figure 27: Example PSU with hook-and-loop tape Hook-and-loop tape Figure 28: Securing the power cord with the hook-and-loop tape (A) ▶ Unroll the hook-and-loop tape. RX2540 M7 Operating Manual...

  • Page 78: Connecting The Power Cord (Dc Psu)

    Starting up Figure 29: Securing the power cord with the hook-and-loop tape (B) ▶ Secure the mains connector of the power cord with the hook-and-loop tape. 5.5.4.3 Connecting the power cord (DC PSU) Example DC PSU -48 V CAUTION The DC PSU adjusts automatically to any mains voltage in the range from -40.5 V - -57 V.
  • Page 79 Starting up Figure 30: Connecting the server to the DC voltage - example DC PSU -48 V ▶ Connect the power cord to the PSU (1). ▶ Fasten the two studs (2). ▶ Ensure that the status indicator on the PSU is lit green, see "Indicator on hot-plug PSU"...
  • Page 80 Starting up Example HVDC PSU 380 V CAUTION The HVDC PSU adjusts automatically to any mains voltage in the range from 200 V – 380 V. ▶ You may only operate the server if its rated voltage range corresponds to the local mains voltage. Figure 31: Connecting the server to the DC voltage - example HVDC PSU 380 V ▶...

  • Page 81: Switching On The Server For The First Time

    113. When operating the server out of the specified temperature range, the server may operate improperly and data loss may occur. Furthermore, Fujitsu cannot be held responsible for any related damage, malfunction, or loss of data, etc. ▶ Ensure that you wait for 10 seconds or more after power off before switching on the server again.

  • Page 82: Installing The Front Cover With Lock

    Starting up Installing the front cover with lock Figure 32: Installing the front cover with lock ▶ Attach the front cover in a slight angle to the front (1). ▶ Align the front cover to the front. The lock on the left side must be pushed in (2).
  • Page 83 "Notes on configuring controllers" on page Installing the operating system Descriptions of operating systems not covered in the RAID controller manual are provided in the corresponding readme files under: https://www.fujitsu.com/global/support/products/computing/servers/ primergy/drivers/ For Japan: https://www.fujitsu.com/jp/products/computing/servers/primergy/ downloads/ For more information on installing the server, see the "ServerView Installation Manager"...

  • Page 84: Configuring The Server Without Serverview Installation Manager

    Ensure that the power saving functions are disabled in the Power menu of the BIOS setup during operation. Descriptions of operating systems not covered in the controller manual are provided in the corresponding readme under: https://www.fujitsu.com/global/support/products/computing/servers/ primergy/drivers/ For Japan: https://www.fmworld.net/cgi-bin/drviasearch/drviaindex.cgi https://www.fujitsu.com/jp/products/computing/servers/primergy/...

  • Page 85: Notes On Onboard Sata Controllers

    Open the Windows operating system / Restoring the preinstalled environment For the procedure to open the Windows operating system or to restore the preinstalled environment, see the manuals on the Fujitsu manual download site https://www.fujitsu.com/jp/products/computing/servers/primergy/manual/ (for Japan only) or the attached manuals.
  • Page 86 Starting up The FJ-LSP have to be used with the application wizard of the ServerView Installation Manager. Operating Manual RX2540 M7...

  • Page 87: Operation

    Operation Safety notes CAUTION ▶ Follow the safety instructions in "Important information" on page Removing and installing the front cover with lock Removing the front cover with lock Figure 34: Turning the key ▶ Insert the key. ▶ Turn the key in open position. Figure 35: Removing the front cover RX2540 M7 Operating Manual...

  • Page 88: Switching The Server On And Off

    113. When operating the server out of the specified temperature range, the server may operate improperly and data loss may occur. Furthermore, Fujitsu cannot be held responsible for any related damage, malfunction, or loss of data, etc. ▶ Ensure that you wait for 10 seconds or more after power off before switching on the server again.
  • Page 89 Operation ▶ Press the On/Off button. The server is switched on, performs a system test and boots the operating system. In the case of configurations with a large memory size, the boot process may be prolonged. Switching the server off The power-on indicator lights up green.
  • Page 90 Operation Other On/Off options Besides the On/Off button, the server can be switched on and off in the following ways: – Timer-controlled turn-on/off Using the iRMC, you can configure that the server is turned on/off controlled by an internal timer. –...

  • Page 91: Installing Hdd/Ssd Modules

    Operation Installing HDD/SSD modules 6.4.1 Installing 3.5-inch HDD modules Removing a 3.5-inch HDD dummy module Figure 36: Removing the 3.5-inch dummy module ▶ Press both tabs together (1) and pull the dummy module out of its bay (2). CAUTION ▶ Keep the dummy module for future use.
  • Page 92 Operation Installing a 3.5-inch HDD module Figure 37: Opening the locking lever ▶ Pinch the green locking clip (1) and open the locking lever (2). Figure 38: Installing the 3.5-inch HDD module ▶ Insert the HDD module into a drive bay and carefully push back as far as it will go (1).

  • Page 93: Installing 2.5-Inch Hdd/Ssd Modules

    Operation ▶ When using a RAID array, add the additional HDD to the RAID array. Configuring the RAID array, refer to the documentation of the RAID controller, used in your configuration, see "Documentation overview" on page 6.4.2 Installing 2.5-inch HDD/SSD modules Removing a 2.5-inch HDD/SSD dummy module Figure 39: Removing a 2.5-inch HDD/SSD dummy module ▶...
  • Page 94 Operation Installing a 2.5-inch HDD/SSD module Figure 40: Opening the locking lever ▶ Pinch the green locking clips (1) and open the locking lever (2). Figure 41: Installing the 2.5-inch HDD/SSD module ▶ Insert the HDD/SSD module into a drive bay and carefully push back as far as it will go (1).

  • Page 95: Installing A Second Psu

    Operation Configuring the RAID array, see the documentation of the RAID controller, used in your configuration, see "List of documents" on page Installing a second PSU Removing the dummy cover Figure 42: Removing the dummy cover ▶ Press in on both release latches (1) and pull out the dummy cover (2). CAUTION ▶...
  • Page 96 Operation Installing a hot-plug PSU Figure 43: Folding up the handle ▶ Push the handle of the PSU halfway upward in the direction of the arrow. Figure 44: Installing the PSU ▶ Push the PSU into its bay (1) as far as it will go until the release latch snaps in place.
  • Page 97 Operation Ensure that the PSU engages correctly in the bay and is locked in position. Figure 45: Installing the cable clamp ▶ Only for AC PSU with cable clamp: push the cable clamp into the corresponding hole until it clicks in. ▶...

  • Page 98: Cleaning The Server

    Operation Cleaning the server CAUTION ▶ Switch off the server and disconnect the power plugs from the properly grounded power outlets. ▶ Do not clean any interior parts yourself; leave this job to a service technician. ▶ Do not use any cleaning agents that contain abrasives or may corrode plastic.

  • Page 99: Troubleshooting And Tips

    ▶ Contact our customer service team. The meaning of the error message is explained in the documentation for the relevant components and programs, available online at https://support.ts.fujitsu.com/. iRMC cannot read detailed information from the NVIDIA T400 card The Graphics page of the System menu of the iRMC’s web interface displays the status of GPU cards.

  • Page 100: Power-On Indicator Remains Unlit After You Have Switched On Your Device

    Troubleshooting and tips Power-on indicator remains unlit after you have switched on your device Cause Troubleshooting ▶ Ensure that the power cable(s) is/are correctly Power cable incorrectly connected to the server and the grounded power connected outlet(s). ▶ Disconnect the server power plug(s) from the Power supply overloaded grounded power outlet(s).

  • Page 101: Screen Remains Blank

    Troubleshooting and tips Screen remains blank Cause Troubleshooting ▶ Switch on your monitor. Monitor is switched ▶ Press any key on the keyboard. Screen has gone blank ▶ Deactivate screen saver and enter the appropriate password. ▶ Set the brightness control on the monitor to light. Brightness control is set to dark For more information, see the operating manual...

  • Page 102: Server Switches Itself Off

    Troubleshooting and tips Server switches itself off Cause Troubleshooting ▶ Check the error list of System Event Log in the Server Management has detected an iRMC web interface, and attempt to eliminate the error error. No mouse pointer displayed on screen Cause Troubleshooting ▶...

  • Page 103: Time And/Or Date Is Incorrect

    ▶ If the date and time are still wrong after the server The lithium battery is discharged has been switched off and back on again, replace the lithium battery (see the "Fujitsu Server PRIMERGY RX2540 M7 Upgrade and Maintenance Manual") or contact our customer service team. 7.11...

  • Page 104: Added Drive Reported As Defective

    RAID controller. ▶ Remove and reinstall the drive while the system is switched on. If the HDD/SSD continues to be shown as defective, then replace it (see the "Fujitsu Server PRIMERGY RX2540 M7 Server Upgrade and Maintenance Manual"). 7.13...

  • Page 105: Odd Cannot Read Data

    RAID controller configuration program. incorrect For more information, see the "Integrated RAID for SAS User’s Guide" or the "Modular RAID Controller Installation Guide" available online at https://support.ts.fujitsu.com/. 7.14 ODD cannot read data Cause Troubleshooting ▶ Check to see whether the CD/DVD/BD is inserted...
  • Page 106 Troubleshooting and tips Operating Manual RX2540 M7...

  • Page 107: Technical Data

    The specifications for this server are liable to be updated without any notice. Please be forewarned. The data sheets for this server contain more technical data. The data sheets are available online at: https://www.fujitsu.com/fts/products/computing/servers/primergy For more information, see the Documents tab under e.g. Rack Servers. For Japan: https://www.fujitsu.com/jp/products/computing/servers/primergy...

  • Page 108: Memory Modules Configuration

    Technical data Memory modules configuration Memory slots 32 (16 DIMMs per CPU, 8 channels with 2 slots per channel) Memory type RDIMM (DDR5) Memory capacity Up to 8TB/CPU using DDR5 DIMMs (256 GB (min. - max.) DDR5 x32) Up to 16TB/2CPUs using DDR5 DIMMs (256 GB DDR5 x32) Memory protection ECC;...
  • Page 109 Technical data LAN/Ethernet 1 x 1 Gbit/s Ethernet (Shared LAN) (RJ45). OCP option: – Intel 1GbE BASE-T for OCPv3 internal lock – Broadcom 1GbE BASE-T for OCPv3 internal lock – Intel 10GbE BASE-T for OCPv3 internal lock – Broadcom 10GbE BASE-T for OCPv3 internal lock –...

  • Page 110: Onboard Or Integrated Controllers

    Technical data Onboard or integrated controllers RAID controllers PRAID EP520i (based on LSI SAS3508) SAS/SATA/PCIe HDD/SSD up to 12 Gbit/s SAS, 6 Gbit/s SATA, 8 Gbit/s PCIe, 8 ports internal RAID level: 0, 1, 1E, 10, 5, 50, 6, 60 2 GB cache, optional FBU PRAID EP6xx (based on Broadcom SAS3916) SAS/SATA/PCIe HDD/SSD up to x16 ports with...
  • Page 111 Technical data Slot 5/6: PCIe Gen5 x8 Low profile (LP) (mechanical x16) Slot 7/8: PCIe Gen5 x16 Low profile (LP) (mechanical x16) Slot 9/10: PCIe Gen5 x8 Full height/length (FHFL) (mechanical x8) Slot 3/9: PCIe Gen5 x16 Full height/length (FHFL) GPGPU card support (mechanical x16) Slot notes CPU1 supports slot 1-4...

  • Page 112: Drive Bays

    Technical data Drive bays Hot plug 3.5-inch HDD Front: bay configuration – up to 12x 3.5-inch HDD ● Upgradeable to 12 – up to 24x 2.5-inch HDD/SSD Drives Rear: Hot plug 2.5-inch – up to 4/6x 2.5-inch SAS/SATA HDD/SSD/PCIe SSD configuration ●...

  • Page 113: Ventilation Clearance

    Technical data Rack mounting kit RAIL KIT-BALL BEARING TYPE (standard type; P/N: CA05950-2169): 4.5 kg RAIL KIT-FRICTION TYPE (low cost type; P/N: CA05950-2170): 3.8 kg 8.10 Ventilation clearance There must be a clearance of at least 200 mm in front of and behind the server to ensure adequate ventilation of the subsystem.

  • Page 114: Noise Level

    Technical data Fujitsu PRIMERGY Servers are designed for the usage with operating temperatures of up to 35 °C. There could be configurations that are not able to work within this normal operation class. Please refer to Datasheet and Fujitsu WebArchitect to obtain detailed information on the corresponding configurations: www.fujitsu.com/configurator/public...
  • Page 115 Technical data Active power max. (AC 613 W input) Apparent power max. 200 V : 560 VA 100 V : 580 VA Heat dissipation 2206.8 KJ/h (2091.6 BTU/h) Main power fuse 10 A Protection class Electrical data: 900 W Platinum ( P/N: S26113-E628-V50-1 / DSP-900AB-3A) Rated voltage range 100 V - 127 V / 200 V - 240 V...
  • Page 116 Technical data Active power max. (AC 1088 W input) Apparent power max. 230 V : 1035 VA 100 V : 1100 VA Heat dissipation 3916.8 KJ/h (3712.4 BTU/h) Main power fuse 16 A Protection class Electrical data: 900 W Titanium (P/N: S26113-E629-V50-1 / DPS-900AB-2A) Rated voltage range 200 V - 240 V...
  • Page 117 Technical data Active power max. (AC 1848 W input) Apparent power max. 230 V : 1868 VA 100 V : 1252 VA Heat dissipation 6652.8 KJ/h (6305.6 BTU/h) Main power fuse 20 A Protection class Electrical data: 1600 W Titanium (P/N: S26113-E652-V60-1 / PS-2162-17J) Rated voltage range 100 V - 127 V...
  • Page 118 Technical data Max. rated current 12.5 A / 11.3 A / 14 A DC output 100 V - 127 V (1000 W max.) 200 V - 220 V (2000 W max.) 220 V - 240 V (2200 W max.) Active power max. (AC 2544 W input) Apparent power max.

  • Page 119: Electrical Values Of The Dc Psu -48

    Technical data 8.14 Electrical values of the DC PSU -48 V Electrical data: 1300 W -48 V DC (P/N: S26113-E647-V50-1 / DPS-1300AB-28 A) Rated voltage range -48 V - -60 V Frequency Max. rated current (DC 37 A max. input) Active power max.

  • Page 120: Electrical Values Of The System

    Technical data Main power fuse 16 A Protection class 8.16 Electrical values of the system Electrical data: System 500 W Platinum Rated voltage range 100 V - 240 V Frequency 47 Hz - 63 Hz Max. rated current 6.5 A - 2.9 A (x2) Recommended max.
  • Page 121 Technical data 900 W Titanium Rated voltage range 200 V - 240 V Frequency 47 Hz - 63 Hz Max. rated current 5.7 A (x2) Recommended max. drives (HDD/SSD/NVMe), it depends on the configuration: ● Up to 20x 2.5-inch HDD/SSD ●...

  • Page 122: Compliance With Standards

    Technical data 1300 W DC -48 V PSU Rated voltage range -48 V - -60 V Frequency Max. rated current 32 A (x2) 8.17 Compliance with standards Global CB-Scheme (ITE) CISPR 32 CISPR 35 RoHS (Substance limitations in accordance with global RoHS regulations) WEEE (Waste electrical and electronical equipment)
  • Page 123 Technical data China Korea KC-Mark EMC class A CAUTION This device meets the requirements of Class A CISPR 32/35. This device can cause radio interference in residential areas. RX2540 M7 Operating Manual...
  • Page 124 Technical data Operating Manual RX2540 M7...

  • Page 125: Warranty And Service

    Warranty and service Warranty The warranty regulations can be found online at: https://support.ts.fujitsu.com/ For Japan: https://www.fujitsu.com/jp/products/computing/servers/primergy/support/ For the warranty regulations select "製品保証ご案内(無償修理期間)" Service Telephone numbers of the local service partner can be found online at: https://support.ts.fujitsu.com/IndexContact.asp?OpenTab=servicedesk RX2540 M7 Operating Manual...

Table of Contents
